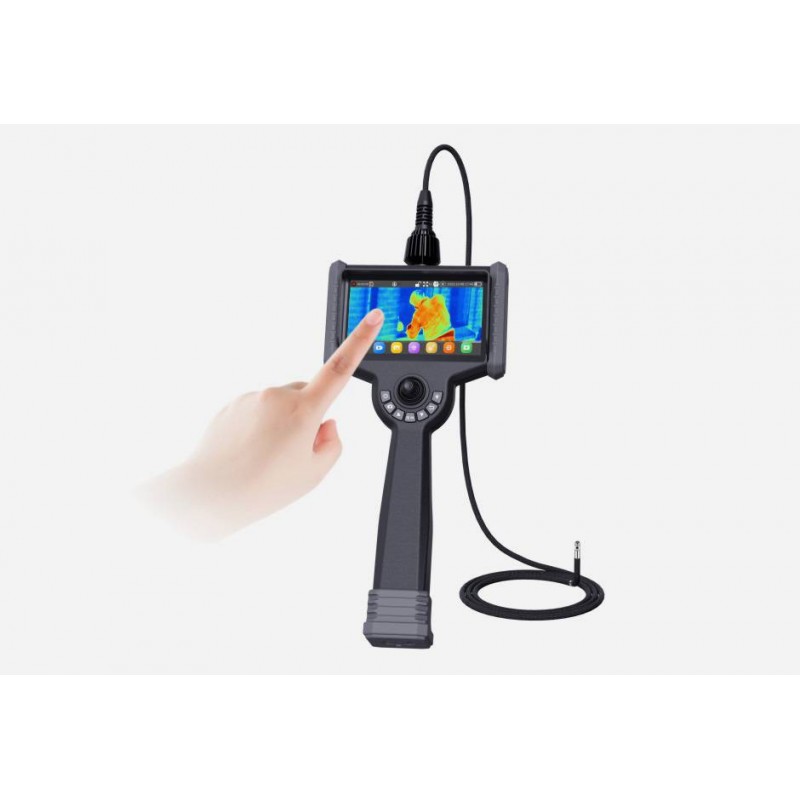

Industrial thermal endoscope VS-RP16520
New product
Hot spot inspection via thermal videoscope
Application: Inspection and monitoring of hot spots / high-temperature areas via thermal videoscopy.
Display: Large 6-inch screen for clear, real-time visualization.
Probe & Sensor Specifications
Diameter: 16.5 mm
Working Length: 200 cm (2.0 meters)
Thermal Resolution: 160 × 120 pixels
Specifications
Model: VS-RP16520
Display: 6" HD TFT LCD screen
File Format: JPG photos and AVI videos
Memory: Micro SD card up to 32GB
Output Connection: HDMI
Battery: 18650 Lithium – up to 8 hours of battery life
Accuracy: -20 to 0°C: ±7°C / 0 to 35°C: ±5°C / 35 to 150°C: ±3°C or ±3%
Measurement Range: -20 to 150°C (Note: changed "-150°C" to "150°C" to match the accuracy range)
Emissivity: Fixed at 0.95 (Note: "Rayon" is a typo in the French source for "Rayonnement/Émissivité")
Probe Resolution: 160 x 120
Probe Length: 2 meters (Note: "Fibre" usually refers to the insertion tube/probe length in this context)
Operating Temperature: -20°C to +60°C
