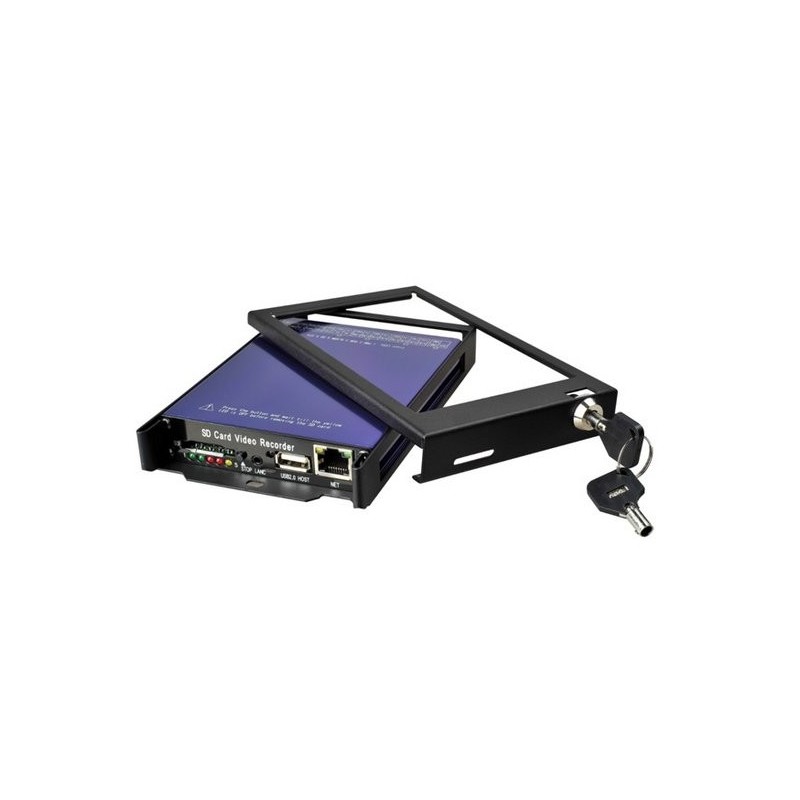

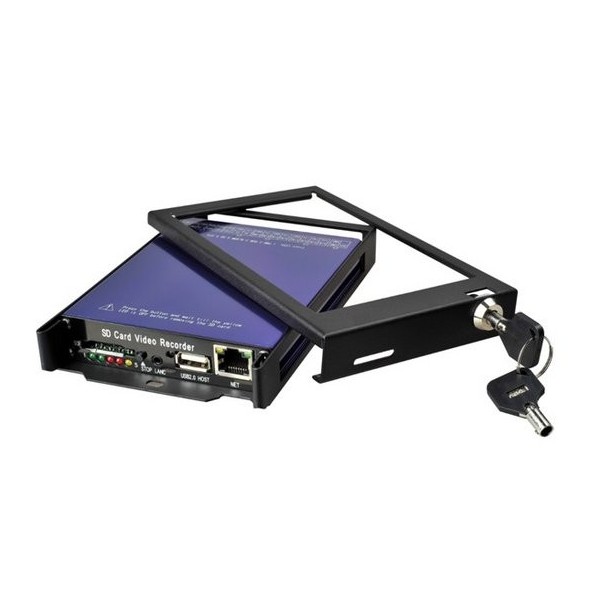

SDVR-004HD - Mobile HD Digital Video Recorder on SD Card
New product
4-Channel High-Resolution Mobile DVR on SD Card
Compact size
Easy installation
Supports 8VDC to 32VDC, suitable for 12VDC and 24VDC vehicles
Description
The SDVR-004HD is a mobile video recorder for vehicles, equipped with 4 video inputs compatible with AHD, TVI, CVBS, and a mini-HDMI screen output.
High-Resolution Recording: Up to 1 megapixel resolution for 4 channels (1280x1024).
Compact Size: Much easier to install, it fits easily under a seat in a vehicle.
Wide Power Range: Supports 8VDC to 32VDC, suitable for 12VDC and 24VDC vehicles.
Camera Power Output: The recorder provides each camera with a stable +12V DC power supply.
Easy Video Playback on a Computer: Video files are in AVI format and can be played with VLC or similar software.
Mobile Digital Video Recorder on SD Card
SDVR-004HD 4-Channel Mobile DVR on SD Card
Technical Specifications
Model: SDVR004
Video Inputs: 4 channels AHD, TVI, or analog PAL/NTSC
Video Output: 1 mini HDMI port
Video Compression: H.264 High Profile
Recording Resolution: 1280x1024 (PAL) / 1248x832 (NTSC)
Video Bitrate: Up to 8Mbps
Audio Input: 4 channels RCA 1-2Vpp
Storage: SD Card, external USB device (USB stick or hard drive)
File Format: AVI
Sensor Inputs: Speed, Ignition, Brake
GPS: Optional GPS receiver, can embed GPS data directly into the video
GPS Data Format: NEMA0183
Power Supply: From +8VDC to +32VDC
Power Output: 4 x 12V, 1.5A
Power Consumption: <5W operating, 0.1W in standby (excluding camera, hard drive, monitor)
Operating Temperature: -10°C ~ +60°C
Dimensions: 115mm x 92mm x 20mm
