HD-SDI, EX-SDI, AHD, TVI, CVBS, and ONVIF IP Video Recorder
New product

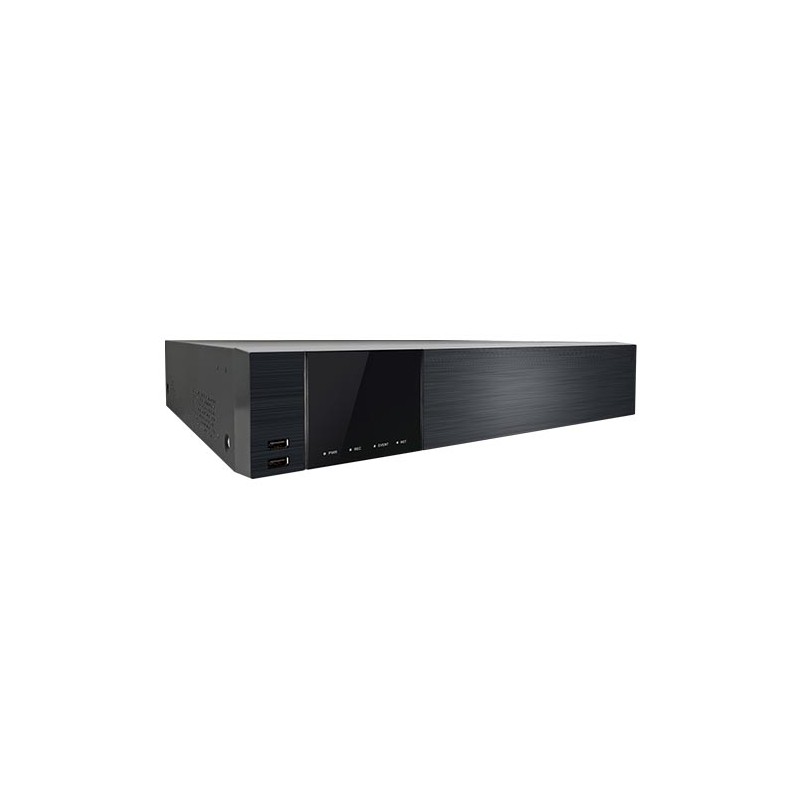

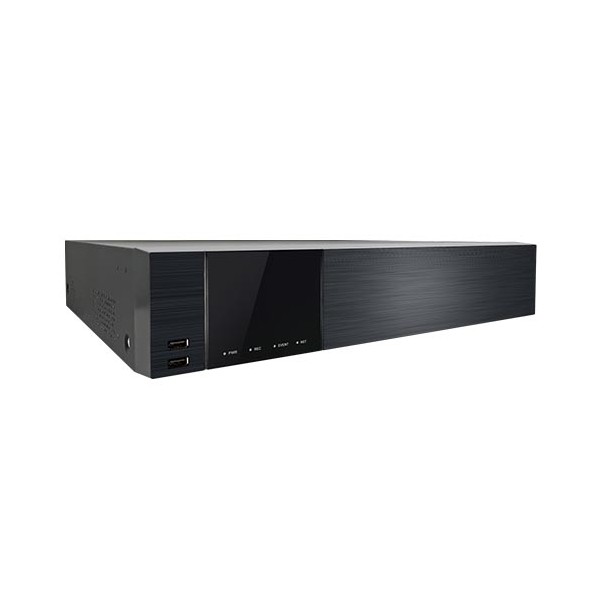

Multi-Input UHD DVR - 4K SDI Compatible
Supported Formats
Output: 4K UHD (HDMI) and SDI
Real-time streaming (RTSP), remote VMS DVR (Control Center), mobile application, HTML5 WebViewer

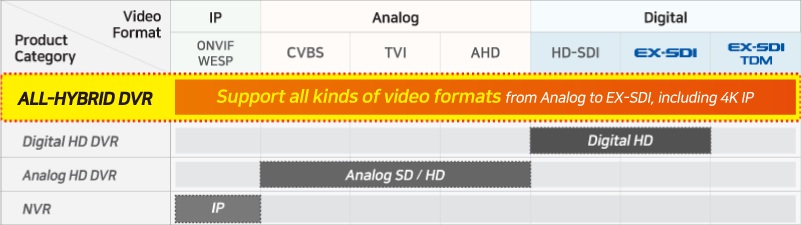

The DVR Compatible with All Video Formats
From standard SD cameras to coaxial AHD or TVI cameras, as well as 4K ONVIF IP (4K IP camera), the ALL-HYBRID 4K DVR supports all types of video formats. The ALL-HYBRID 4K DVR is the optimal solution for any site with any camera.
A Range of Hybrid SDI Recorders from 4 to 16 Channels

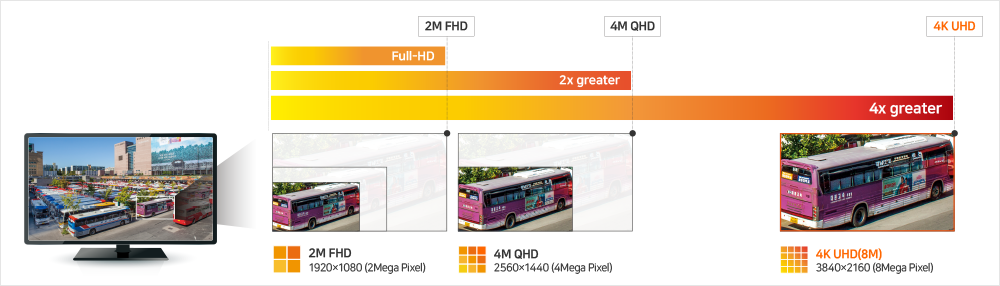

Supports 4K UHD Cameras
Our Hybrid recorder line-up accepts 4K cameras.
Technical Note: When using 4K cameras, the number of inputs is divided by 2. For example, with the 8ch model, only 4 inputs will be available when 4K cameras are connected.
Output Formats
Supports 4K UHD (HDMI) output. Supports digital BNC output (EX-SDI, EX-SDI 2.0) for long-distance transmission. The SDI output allows configuring a long-distance surveillance system at a reasonable cost.
ONVIF Protocol
Supports the latest version of the standard ONVIF protocol, ensuring compatibility with third-party software and systems. Fully tested with over 100 models from 40 manufacturers. Free integration.
Free VMS
Includes free central management software (Control Center), supporting up to 1,024 DVRs with rich, intuitive, and highly powerful features.
Technical Specifications
| Video Signal | Analogue CVBS |
| Video Signal | IP OnVif |
| Video Signal | TVI |
| Video Signal | SDI / HD-SDI / EX-SDI / 3G-SDI |
| Video Signal | AHD |
| Resolution | 720x576 |
| Resolution | 1024x768 |
| Resolution | 2560x1920 |
| Resolution | 1920x1080 Full-HD |
| Resolution | 1440x900 |
| Resolution | 3840x2160 UHD 4K |
| Resolution | HD |
| Resolution | 2592x1944 |
| Resolution | 1280x1024 |
| Resolution | 1366x768 |
| Resolution | 1280x800 |
| Resolution | Standard |
| Power Supply | 110-230VAC |
| Power Supply | 12VDC |
13 other products in the same category
ALLWAN SECURITY
VDR-FHD Video recording case 4K
Portable suitcase for viewing and recording video in 4K or FULL HD 1 video input either 6G-SDI, HDMI or AHD/CVI/ TVI Very high resolution vision and recording Compact, simple, quick to use Waterproof IP67 closed 100% customizable according to your needs
ALLWAN SECURITY
VDR-150HD Full-HD Monitoring case
VDR-150 reinforced mobile monitoring case. 1, 4 or 8 video camera inputs CVBS PAL/NTSC / AHD 720-1080pLive with recording. Compact, simple and quick deployment. Waterproof IP67 closed100% customizable according to your needs
ALLWAN SECURITY

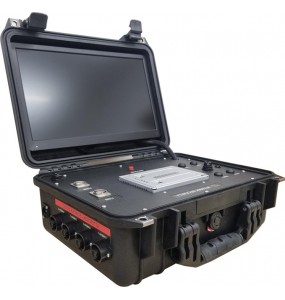

VDR-450HDIP Full HD Monitor Case
