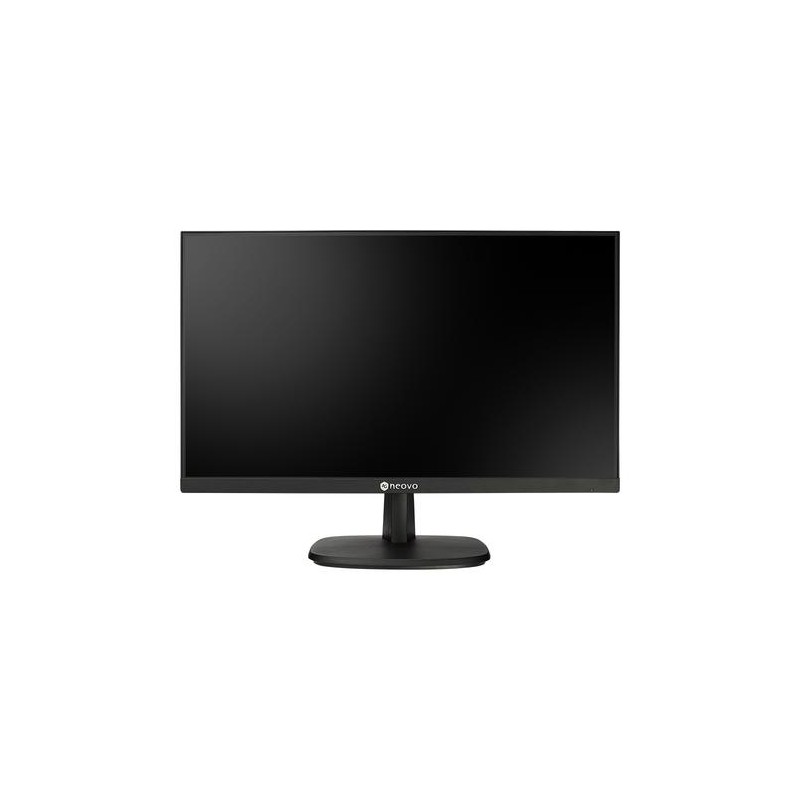

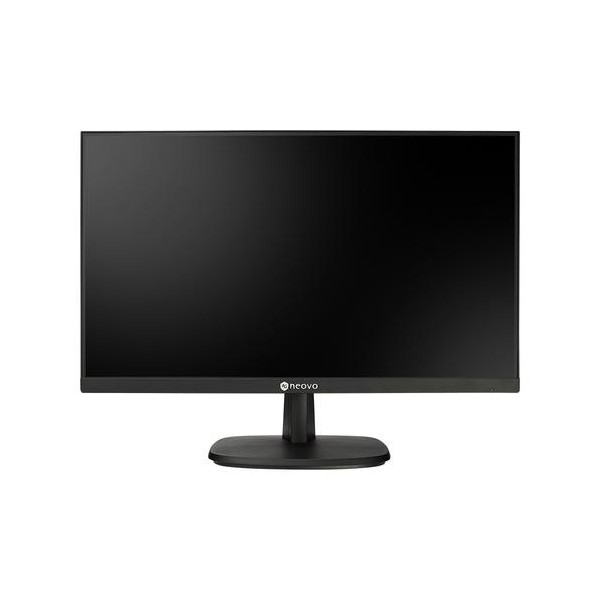

QX-32 - Neovo Monitor - 32" 4K - 3840x2160

Description

The QX-32 from NEOVO is a 32" security monitor delivering 4K resolution quality for maximum detail. Designed for continuous 24/7 operation.

This monitor series features patented NeoV optical glass for unmatched image clarity and enhanced screen durability, with 3mm thick, anti-glare treated glass.

Technical specifications

Display

- Resolution UHD 3840 x 2160
- Pixel Pitch: 0.185 mm
- Native Contrast: 20,000,000:1 (DCR)
- Viewing Angle (Left/Right/Up/Down): 178°/178°
- Color Display: 1.07 Billion
- Surface Treatment: AntiGlare, 3H hard coating

Frequency

- Horizontal Frequency (H): 31 kHz - 92 kHz
- Vertical Frequency (V): 48 Hz - 85 Hz

Inputs

External control

RS232 In 9-Pin D-Sub
LAN RJ45 x 1
USB 2.0 x 1 (Service)

Audio

- Audio In: Stereo Audio Jack (3.5 mm)
- Internal Speakers: 2W x 2

Power Supply

- Internal Power Supply
- Power Requirements: AC 100-240V 50/60 Hz
- On Mode: 15W (On)
- Standby Mode: < 0.5W
- Off Mode: < 0.3W

Operating Conditions

- Temperature: 0°C-40°C
- Humidity: 10% - 90% (non-condensing)

Storage Conditions

- Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 5% - 95% (non-condensing)

VESA Wall Mount

- VESA FPMPMI: YES (200 x 200 mm and 400 x 200 mm)

Dimensions

- Product without base (W x H x D): 771.0 x 461.0 x 77 mm (30.4" x 18.1" x 2.8")

Weight

- Product without base: 15.7 kg (34.6 lb)

Accessories Included

- Audio Cable, Power Cable, Manual, VGA Cable, remote controller (battery provided)

Optional Accessories

- Ceiling Mount (Landscape only) : CMP-01 + WMK-03 ou CMP01 + LMK-02
- Wall Mount (Landscape only): PMK-01, WMA-01, WMK-01, WMK-03, LMK-02
