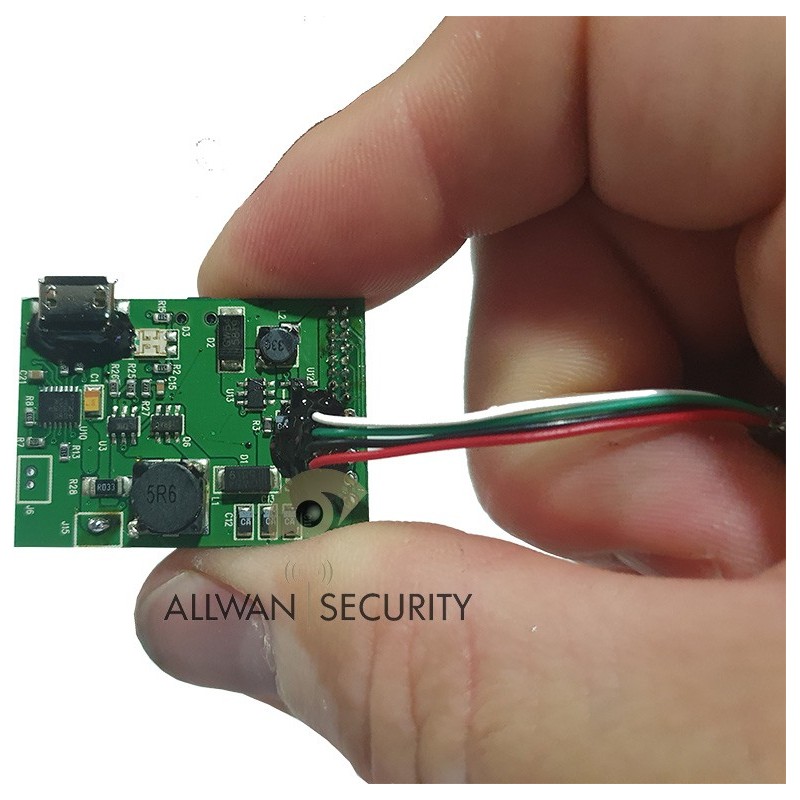

WIFI 802.11n - MINI UVC VIDEO ROUTER MST-WF12M, MST-WF12ME, UCD-WF12M

Mini video recorder router for integrations, Wifi 802.11n, USB 2.0 connection. Support for Windows XP, WIN 7, IPAD, OSX Android. Data rate up to 150 Mbps. Li-Ion battery power supply.

More details

Functions
Connects to the USB 2.0 port of the Windows XP machine
Resolution: 640 x 480 up to 25 fps; 320x240 up to 30 fps; 160x120 up to 30 fps 1280x720; 1280x960; 1280x1024.
Support for Windows XP, WIN 7, IPAD, OSX Android
(Samba server support requires Samba client APP) Audio support (RTSP)
Data rate up to 150 Mbps
WEP, TKIP, WPA, WPA2, AES security, WPS 64/128 bits
Multi-modes AP / Client

Characteristics
standard features: IEEE 802.11 b / g / n compliant standards
Wireless LAN: Mode 1T1R
Antenna: iPex Connector x 1 (PIFA optional)
Frequency range: 2.400 to 2.4835GHz (subject to local regulations)
Number of selectable channels: 802.11n 20MHz / 40MHz; 802.11b / g USA, Canada (FCC): 11 channels (2.412GHz-2.462GHz) Europe (CE): 13 channels (2.412GHz'2.472GHz) Japan (TELEC): 14 channels (2.412GHz'2.4835GHz)
Data rate: 802.11n: up to 300Mbps 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Coverage area: up to 6 times faster than existing products of 802.11 b / g
Transmission Power: 11n HT40 MCS7: 13 dBm 11b CCK: 18 dBm 11g OFDM: 15 dBm
Receiver sensitivity: -66dBm to HT40 MCS7 -73dBm at 54Mpbs -86dBm at 11Mpbs
Interface: USB x 1 (Host) UART x 1 GPIOs VCC / GND
Power input: 1 DC 5V, 1.2A / connector: micro USB 2: DC 3.1'4.2V (Li-Ion battery).
