VDL5130 Video transmission system 4 transmitters with only one coaxial cable

New product

Quotation

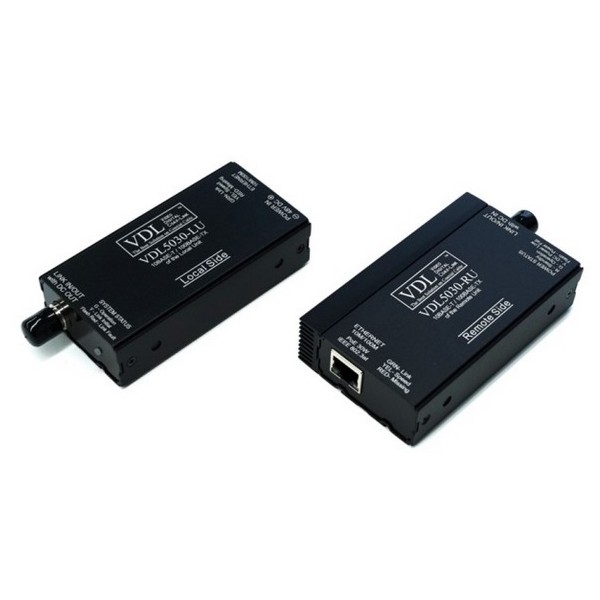

VDL5030 is a Long Distance Ethernet Extender, coaxial cable transmission, suitable and used in high traffic imaging systems such as the HD IP camera surveillance system, or reconnected to the network hub / switch.

More details

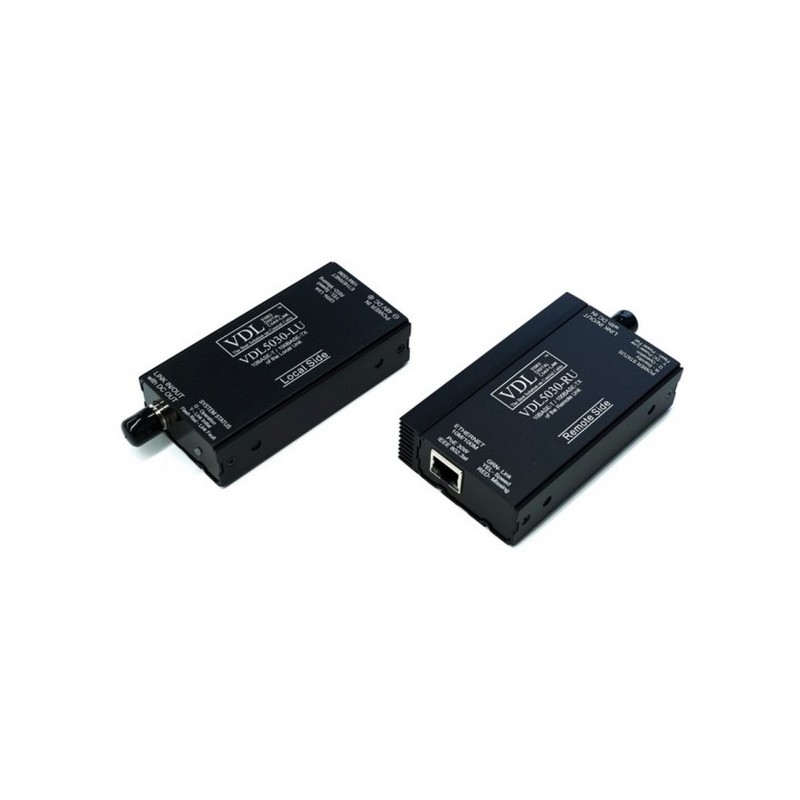

The VDL5030 is a long-range coaxial cable transmission pair that uses the coaxial cable as a medium to transmit digital network signals and power supplies. The VDL5030 is made up of two components, one placed at the end which we call the remote unit (RU), the other called the local unit (LU) connected to the host computer. RU and LU convert the signal from the coaxial cable into an Ethernet network signal on an RJ45 socket, the two ends of the socket have a speed of 100 Mbps, the specification is 10 / 100M Base-T. At the other end, the UK network sockets provide PoE power, which is IEEE 802.3at 30W, providing power to the end device up to 25.5 W via the CAT-6 network. The coaxial cable has excellent performance and can transmit digital signals up to 1000 meters (3280 feet) away, we recommend the use of the coaxial cable RG-6 / U, which is generally used in video surveillance and transmission video signals. The VDL5030 uses this coaxial cable to transmit digital signals with the same performance as the Ethernet cable of the CAT-6 type, but with more distance.

Characteristics
Sender VDL5130-RU
Transmission distance: Up to 600m (at PoE Plus 30W power supply).
Standard Ethernet match: 10BASE-T / 100BASE-TX Auto MDI / MDI-X
Standard PoE match: IEEE802.3afPoE), IEEE802.3at (PoE Plus
Matching Ethernet cable: 100 m long or less
PoE output: DC55V / 30W (IEEE802.3at compliant)
Supported: Type 1 (15.4 W) / Type 2 (30 W)
Connection cable: 75 Ω coaxial cable at both ends BNC male terminal (75 Ω)
Transmission speed: 100 Mbps
Transmission distance: 600m Max
Link signal: 2-28 MHz
Transmission voltage: (BNC) DC45 - 76V
Power consumption: Up to about 10W
Environment Temperature: -10 - +50 degrees
Humidity: 20 - 90%
Outside size: 50x 5x100 mm
Weight: 145g

Characteristics
VDL5130-LU viewer
Standard Ethernet match: 10BASE-T / 100BASE-TX Auto MDI / MDI-X
Standard PoE match: IEEE802.3af (PoE), IEEE802.3at (PoE Plus)
Ethernet connection cable More than CAT5e (100 m long or less)
PoE output: Connection cable 75 Ω coaxial cable at both ends BNC male terminal (75 Ω).
Transmission speed: 100 Mbps
Transmission distance: 600m Max
Link signal: 2-28 MHz
Transmission voltage (voltage at BNC terminals): DC76V
Supply voltage: D76V (attached to DC48V / 1.25A power adapter)
Power consumption: Up to about 5 W
Temperature Environment: -10 - +50 degrees
Humidity: 20 - 90%
Outside size: 50x25x100 mm
Weight: 155g
