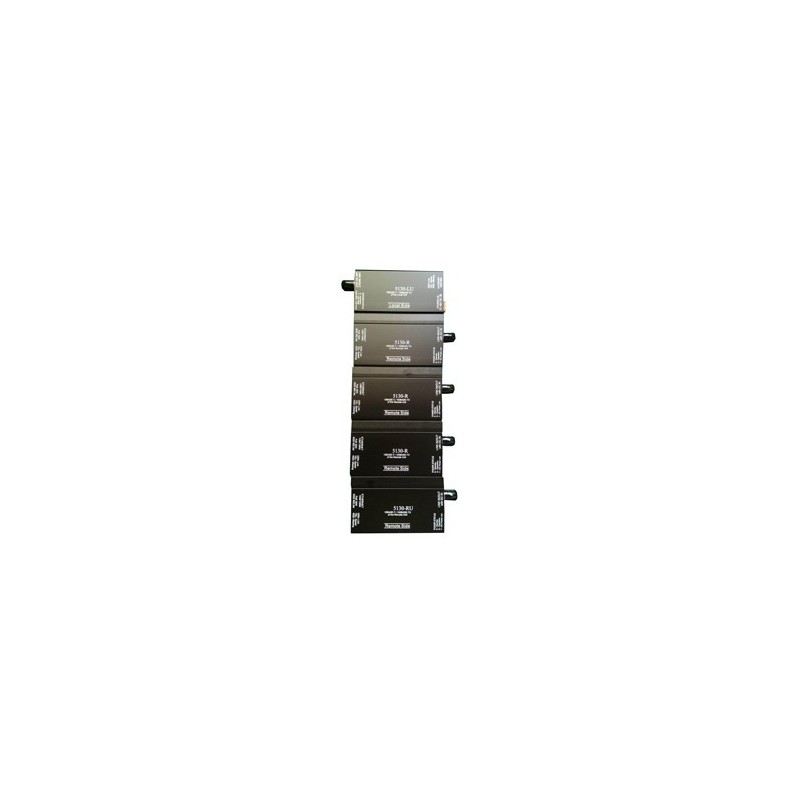

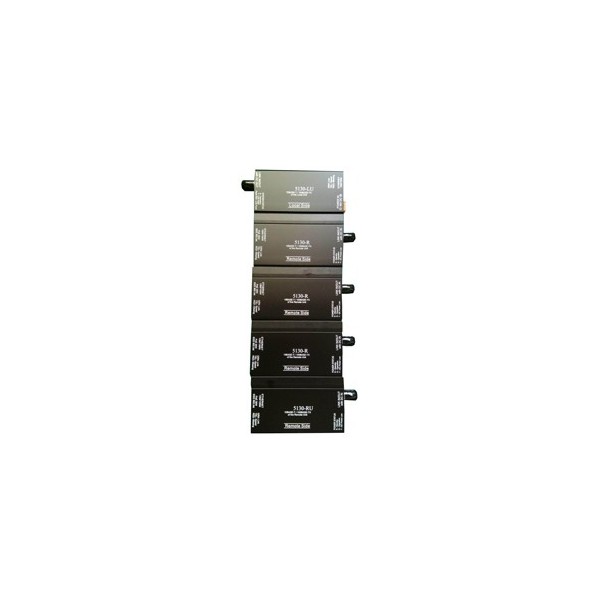

VDL5130 Video transmission system distance 600 meters Via coaxial cable RG-6 / U
New product
Ethernet extender on coaxial cable for long distance. VDL5130 transmission pair. Transmits the high definition IP image signal and can be used in a computer network or any digital network application.
The transmission distance is 600M using RG-6 / U coaxial cable. No need to change the installation system, plug and play. Using a single coaxial cable, you can connect a local side viewer with 4 remote side transmitters. Connect the 100M Cat5 / 6 cable on each local and remote side, and the total transmission distance can be extended to 800M. IEEE802.3at. Power over Ethernet Plus (POE +) provides up to 30 watts on the remote side and uses an isolated POE power output. Each sender's DC output conforms from 4 W to 30 W to the 802.3af ~ 802.3at standard. Power supplied in Safe-DC mode. Transmits the high definition image IP signal and can be used in a computer network or any digital network application. Network interface: Ethernet 10Base-T / 100Base-TX and Auto MDI / MDI-X. Symmetrical transmission compliance with Ethernet standard and duplex speed: 200 Mbps. TVS / GDT is installed in the BNC socket at both ends of the coaxial cable.
Characteristics
Model: VDL5130-RU
Type: Shipper
Ethernet: RJ45 Ethernet
Network Interface: Base 10-T / Base 100-TX; MDI / MDI-X Auto
BNC OUT / IN link port with DC IN: Link signal 2 at 28 MHz;
DC IN: + 45V to + 76V
Throughput: 100Mbps
PoE production power: DC 55V / 30W. meet IEEE802.3at,
Support Type: 1 (15.4W) and Type 2 (30W
Ethernet: RJ45 connector, 8P8C
OUT / IN link with DC IN: BNC 75 ohms socket
Temperature: -10 to 50 ° C (14 to 122 ° F),
Relative humidity: 20% to 90%, non-condensing
Dimensions (LxWxH): 90 x 50 x 25 mm
Weight: 145g
Characteristics
Model: VDL5130-LU
Type: Viewer
Ethernet: RJ45 Ethernet
Network Interface: Base 10-T / Base100-TX; MDI / MDI-X Auto
BNC OUT / IN link port with DC IN: Link signal: 2 to 28MHz;
DC OUT: + 76V
Throughput: 100Mbps
Current source: DC 48V ± 5%, 1.25Amps Max.
Ethernet: RJ45 connector, 8P8C
OUT / IN link with DC OUT: BNC female socket 75 ohms
Power: 2-pin, 5.0 mm pitch pluggable terminal block
Operating temperature: -10 to 50 ° C (14 to 122 ° F),
Relative humidity: 20% to 90%, non-condensing
Dimensions (LxWxH): 90 x 50 x 25 mm
Weight: 155g
