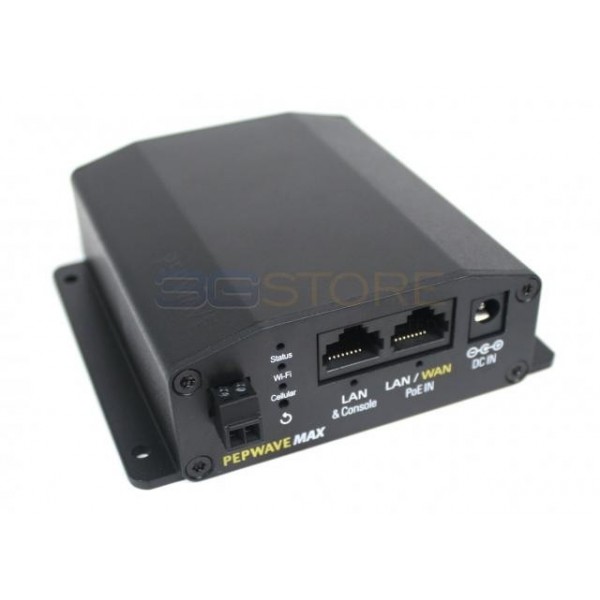

MAX BR1 Industrial Grade 4G LTE Mini Router

New product


The Pepwave MAX BR1 Mini is the ideal mobile broadband router for fleet management, video surveillance and other M2M applications. Comes with an integrated modem compatible with 4G LTE networks in the United States.

More details

Automatic failover
The BR1 Mini offers redundant SIM slots with automatic switching, DC power supply or terminal block, advanced GPS fleet tracking and remote management, all in a durable metal case.

Redundant SIM slots for multiple operators
Redundant SIM slots with automatic switching for reliable networking. You can configure the BR1 Mini to automatically change the SIM card when you are about to exceed a data limit. It also allows you to travel across borders without manually changing SIM cards.

Terminal block for secure power supply
The MAX BR1 Mini is equipped with a terminal block for secure electrical installation in vehicles and other locations.

Customizable captive portal
Customizing your captive portal is as simple as uploading your logo and terms and conditions. You can easily set the bandwidth allocation and access time per user.

Out-of-band management and M2M telemetry
Manage and configure your network devices securely even if the primary line is not available. Gather data from meters, sensors and other remote equipment via the RS-232 serial port adapter.

Additional WAN capabilities
The MAX BR1 Mini has an optional license that allows Ethernet and Wi-Fi WAN for switching between different WAN connections.

Fleet monitoring and management
With integrated fleet GPS tracking and cloud-based management from InControl, you can keep an eye on location and manage your mobile network from any device connected to the Interne.

WAN interface: 1x Ethernet port 10 / 100M * (can be configured as a second LAN if desired) not activated by default, must purchase an optional license to activate the WAN; 1 x Integrated LTE modem with redundant SIM slot.
LAN interface: 1 Ethernet 10 / 100M port (the WAN port can also be configured as a second LAN if desired).
WiFi interface: 802.11b / g / n Wi-Fi WAN * or AP must purchase an optional license to activate WiFi WAN.
Recommended users: 1-60
Router speed: 100 Mbps
Complete VPN solution: VPN Speed ​​Fusion; Site-to-site VPN
Intelligent tilting; Live Session Technology; 256-bit AES encryption; Authentication by pre-shared key; Dynamic routing
VPN IP (network to network) - 2 tunnels
Networking: NAT and IP transfer; Static routes
Port forwarding; Passthrough IP; Many to one, one to NAT
NAT pool; SIP ALG, H.323 ALG; UPnP, NAT-PMP; Server wins
Advanced QOS: Individual bandwidth control (per user only); applications of prioritizations; custom QoS applications.
Security: DoS prevention; Dynamic firewall
AC adapter: AC input 100V-240V DC output 12V, 2A
Power input: Dc 12V -28V 2A
Terminal block: DC 12V -28V 2A
Power consumption: Max: 12W
Operating temperature: -40 ° - 149 ° F -40 ° - 65 ° C
Humidity: 15% - 95% (non-condensing)
Dimensions: 105 x 110 x 30 mm
Weight: 244g

Certifications: FCC, CE, RoHS
Verizon: Yes
Sprint: yes
At & t: Yes
T-Mobile: Yes
Electromagnetic compatibility EN 61000: Yes
