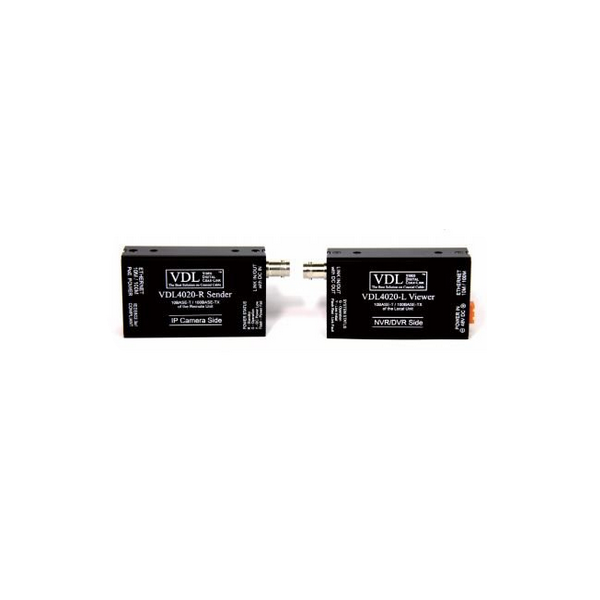

VDL4020 Long distance video transmitter over 800m via coaxial cable

New product

Quotation

More than 800 meters of transmission distance from the local unit to the remote unit via an RG-6 / U coaxial cable. Thick or heavy coaxial cables provide the transmission distance over 1000 meters. This transmission system supports all types of IP (HD) cameras.

More details

The current installation of the IP camera security system uses the Cat-6 standard as a connection cable, transmitting only up to 100 meters. The VDL4020 offers a more practical and reliable solution for IP network cameras. It transmits IP signals up to 800 meters from the local side and also provides DC power simply via a coaxial cable, and the IP camera powering PoE P can be equipped with SNMP management capabilities.

Characteristics
Model: VDL4020 RU
Type: Shipper
Standard Ethernet: 10 / 100Mbps Ethernet
OUT / IN link with DC IN:
Downlink signal bandwidth: 8.5 MHz;
DC IN: + 28V to + 48V
Downlink speed !: 28 Mbps
Output power: PoE Power, 48 15.4 W Meet DC V s`; IEEE802.3af, class 0 (include 1-4)
Ethernet: RJ45 connector
OUT / IN link with DC IN: BNC 75 ohms socket

Characteristics
Model: VDL4020 LU
Type: Viewer
Standard Ethernet: 10 / 100Mbps Ethernet
OUT / IN link with DC OUT:
 Link signal: uplink 39 MHz (output signal);
Uplink signal bandwidth: 2.5 MHz;
DC OUT: + 47V;
Uplink rate: 4Mbps
DC power supply 48 V ± 8%, 1.25 A max.
Ethernet: RJ45 connector
OUT / IN link with DC OUT: BNC female socket 75 ohms
DC power input: 2 pins PTB *, 5.0mm pitch
