VDS6500 Coaxial Transmission Kit

The VDS6500 transmits video signals in real time, it is a real analog transmission system. This system allows you to transmit high definition video signals, including AHD, TVI, CVI and CVBS signals. The transmission distance reaches 500 meters without buzzing or twisting on the video. use with a coaxial cable and a BNC connector.

More details

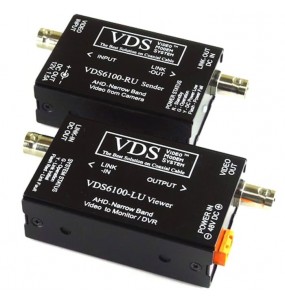

The VDS6500 is a unique video surveillance system using coaxial cable. The system is designed with two units. VDS 6500-RU, the remote unit, called Sender, receives two
(HD analog) signals from surveillance cameras. VDS 6500-LU, the local unit, called Viewer, transmits two analog video signals to the surveillance system. Coaxial cable connects
Viewer and sender; the cable transmits these video signals from the remote control to the room, while sending DC power from the room to the remote control.

The VDS6500 can transmit high definition video signals, including AHD, TVI, CVI and CVBS signals, and all analog surveillance camera signals on the market today.
On the remote side, the VDS6500-RU, Sender, accepts two video signals during transmission. The sender provides two transmission channels independently with different formats. On the local side, the VDS6500-LU, Viewer, transmits video signals identical to signals from surveillance cameras.

The VDS6500 does not compress, sample or quantify video signals. Therefore, it does not modify the video signals. The VDS6500 transmits video signals in real time and is a true analog transmission system.

Characteristics
DS6500-LU viewer (PTB = pluggable terminal block)
Video output signal: 1.0 Vpp, 75 ohms. (Socket: BNC female)
Video signal bandwidth: 45 MHz. (Chroma portion: +/- 3dB) Output: DC to Link-In: DC47V, 1.2 Amp max.
Power input: DC 48V +/- 10%. (Plug: 2-pin PTB, 5.0 mm pitch).
Operating temperature: -10 to 40 ° C (14 to 104 ° F)
Relative humidity: 20 to 90%, non-condensing
Unit dimensions (LxWxH): 100 mm x 75 mm x 25 mm
Weight: 190 grams without support

Characteristics
Sender VDS6500-RU
Video input signal: 1.0 Vpp, 75 ohms. (Socket: BNC female)
Video signal bandwidth: 45 MHz.
Output power: DC12V, 3.5 A max.
(2 sockets: 2.1 mm / 5.5 mm round)
Operating temperature: -10 to 45 ° C (14 to 113 ° F)
Relative humidity: 20 to 90%, non-condensing
Unit dimensions (LxWxH): 100 mm x 75 mm x 25 mm
Weight: 190 grams without support
