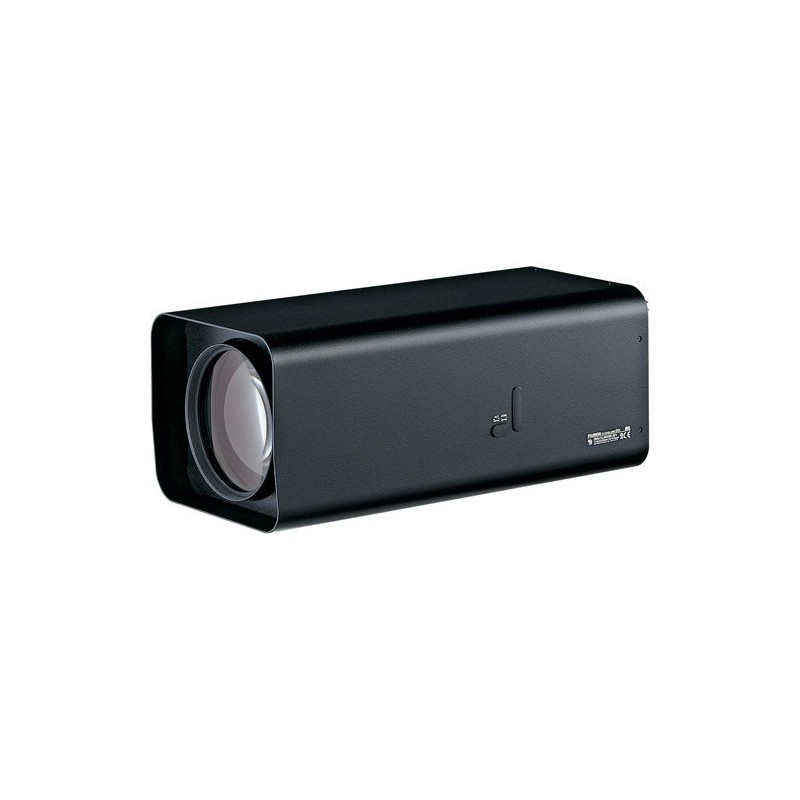

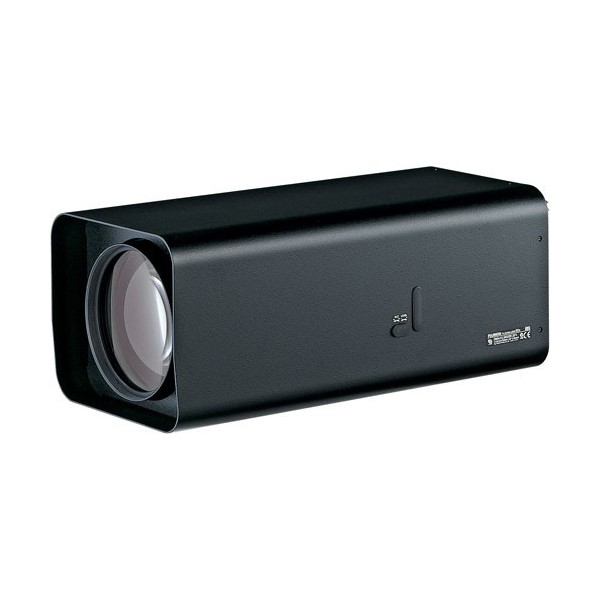

Fujinon D60x12.5R3DE-V41 lens 1/2 "zoom motorized 60x extension 2x day / night auto iris

Fujinon D60x12.5R3DE-V41, 60x motorized zoom day / night uninterrupted. Telephoto 1/2 "12.5-750mm, (25-1500mm 2x). 2 megapixel resolution. Excellent light conductivity (F3.8), clear visualization of objects up to 3 km. Versatile operation, auto-iris, presets, manual override.

More details

Offering F3.8 brightness and 60x zoom (1500mm focal length with extension), these lenses are suitable for long distance surveillance, such as maritime port security. The compact and lightweight design allows the implementation of compact remote monitoring systems. Day / night capability for high quality imaging 24/7. Equipped with a 2x extension that clearly identifies the activities of individuals at a distance of 3 km. Full servo for precise zoom. The Iris Override function allows manual adjustment of the diaphragm.

Characteristics:
Size of the image 1/2 ", 2/3", 1/4 "
Focal length 12.5-750mm (60x) 25-1500mm with 2x extension
Opening F3.8-T3000
Iris auto video with manual control
Motorized Focus
Dimensions of the object (HxV to M.O.D:
1/2 "Wide 1x: 1942 mm x 1112 mm, Wide 2x: 1017 mm x 575 mm, 1x TV: 35 mm x 20 mm, TV 2x: 18 mm x 10 mm;
1/3 "Wide 1x: 1474 mm x 836 mm, Wide 2x: 765 mm x 431 mm, 1x TV: 26 mm x 15 mm, TV 2x: 13 mm x 8 mm;
1/4 "Wide 1x: 1112mm x 628mm, Wide 2x: 575mm x 324mm, 1x TV: 20mm x 11mm, 2x TV: 10mm x 6mm;
Motorized focus Angle of view:
1/2 "Wide 1x: 28 ° 43 'x 21 ° 44'mm, Wide 2x: 14 ° 35' x 10 ° 58'mm, 1x TV: 0 ° 29 'x 0 ° 22', TV 2x: 0 ° 15 'x 0 ° 11';
1/3 "Wide 1x: 21 ° 44 'x 16 ° 23'mm, Wide 2x: 10 ° 58' x 8 ° 14'mm, TV 1x: 0 ° 22 'x 0 ° 17', TV 2x: 0 ° 11 'x 0 ° 08';
1/4 "Wide 1x: 16 ° 23 'x 12 ° 20'mm, Wide 2x: 8 ° 14' x 6 ° 11 'mm, TV 1x: 0 ° 17' x 0 ° 08 ', TV 2x: 0 ° 08 'x 0 ° 06';
Minimum object distance (M.O.D.) 5 m
Filter Size 107m x 1mm
C mount
Weight: 5.2 kg
Dimensions (WxHxD) 6.1 x 5.4 x 13.9 "(154 x 137 x 354mm)
Standard Accessories Iris Control Cable - Connection connector (15-pin, 5-pin).
