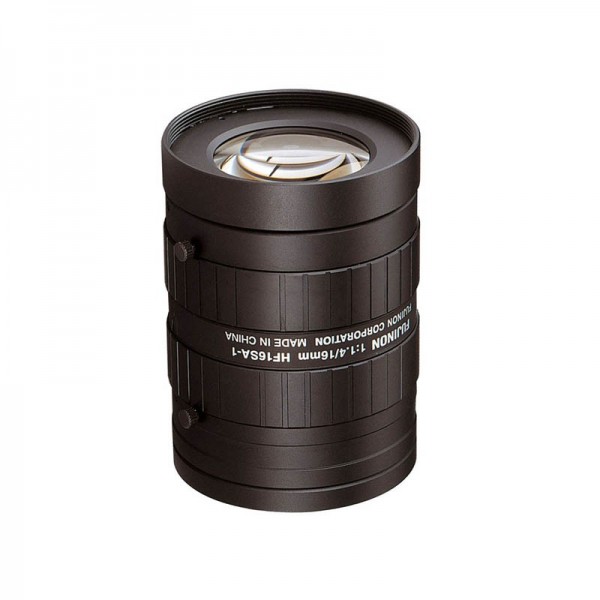

Objectif HF16SA-1
New product
HF16SA-1 2/3 "16 mm F1.4 lens
C-mount with manual diaphragm, 5 megapixels. 16mm focal length.Working distance ∞ - 100mm. Compact size, low distortion. Compatible with 2/3 "sensors
HF16SA-1 - High resolution design supporting a camera resolution of up to 5 megapixels. The rear focus system improves performance in macro photography. The wide aperture design (F1.4) provides clear images in low light intensity. Improved image recognition accuracy due to reduced distortion and improved lighting uniformity. Robust housing resistant to vibrations and shocks. Equipped with lock buttons for iris and focus.
Characteristics
Model: HF16SA-1
Focal length: 16mm
Iris range (F. no) F1.4-F22
Viewing angle 30.2 ° x 22.9 ° (2/3 ")
Working distance: ∞ - 100mm
Manual focus
Manual Iris
Filter net: M49 x 0.75mm
C mount
Sensor size (max.) 2/3 "
Television distortion: 0.11%
Dimension: Φ51 × 70.5mm
Weight: 285g
