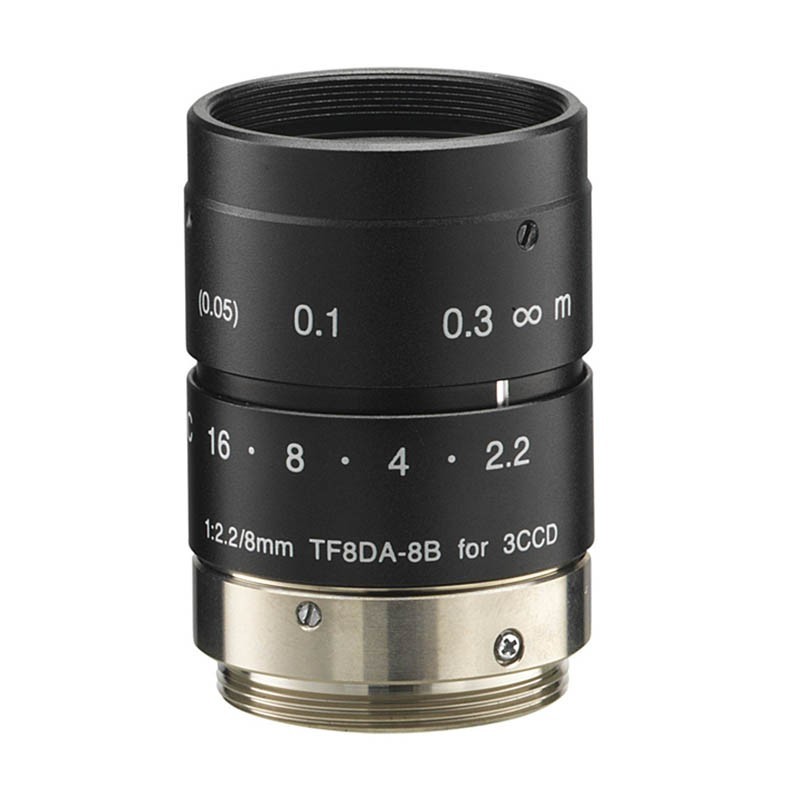

TF8DA-8B 1/3 "8mm F2.2 lens for 3CCD cameras

New product


TF8DA-8B 1/3 "8mm F2.2- Lens exclusively intended for 3CCD cameras. Optimization of the image quality. Low distortion for a precise image. Focal length 8mm, working distance ∞ - 100mm. C mount, Iris at manual control ideal for advanced monitoring applications.

More details

The 3-CCD / CMOS cameras are equipped with three image sensors, one for blue, red and green, three colors separated by a prism. A block of glass thicker than that used in a single CCD / CMOS camera is placed between the lens and the sensor. When the same objectives as those of simple CCD / CMOS cameras are used for 3 CCD / CMOS cameras, the performance of the camera may not be fully achieved due to the optical effect of color separation in the camera. This is why special lenses are needed for 3-CCD / CMOS cameras.

The TF8DA-8B lens has been designed to optimize the image quality of 3CCD cameras.
Low distortion allows precise image input. Compact, light and robust, it supports various systems.
High color performance for 3CCD cameras, ideal for advanced surveillance applications.

Model TF8DA-8B
Focal length 8mm
Iris range (F. no) F2.2-F16 Close
Viewing angle 33.4 ° x 25.1 ° (1/3 ")
Working distance ∞ - 100
Manual focus
Manual Iris
Filter thread M25.5 X 0.5
C mount
Sensor size (max.) 1/3 "
Television distortion: -1.30
Dimension: Φ29 × 39mm
Weight: 60g
