HF75SA-1 2/3 "75mm F1.8

New product

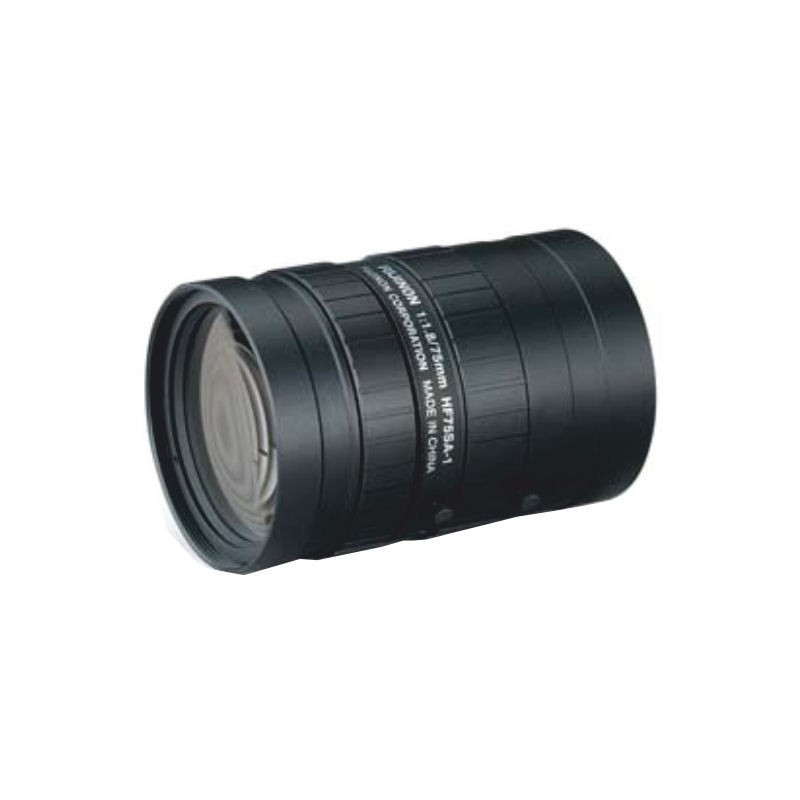

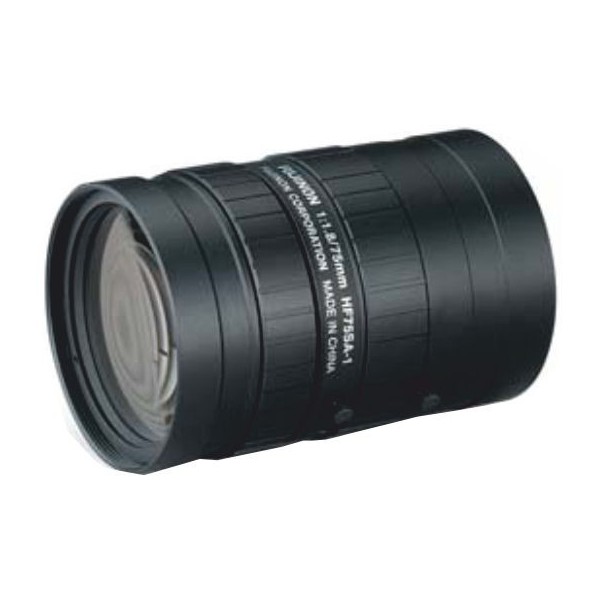

HF75SA-1 2/3 "75mm F1.8 Lens
C-mount with manual diaphragm, 5 Megapixels, 75mm focal length. Working distance ∞-900mm. Compact size, low distortion. Compatible with 2/3 "sensors.

More details

HF75SA-1 High resolution design, supporting a camera up to 5 megapixel resolution. The wide aperture design (F1.4) provides clear images in low light intensity. Improved image recognition accuracy due to reduced distortion and improved lighting uniformity. Robust housing resistant to vibrations and shocks. Equipped with lock buttons for iris and focus.

Model: HF75SA-1
Focal length: 75mm
Iris range (F. no) F1.8-F22
View angle 6.7 ° x 5.0 ° (2/3 ")
Working distance ∞-900mm
Manual focus
Manual Iris
Filter thread [mm] M49 x 0.75
C mount
Sensor size (max.) 2/3 "
Television distortion: 0.01%
Dimension: Φ51 × 76mm
Weight: 305g
