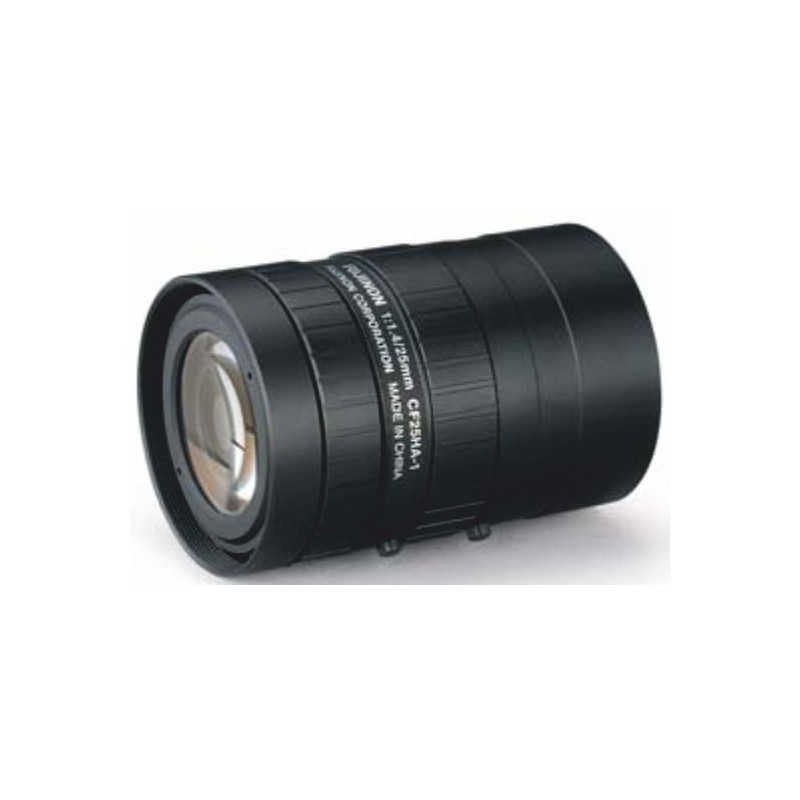

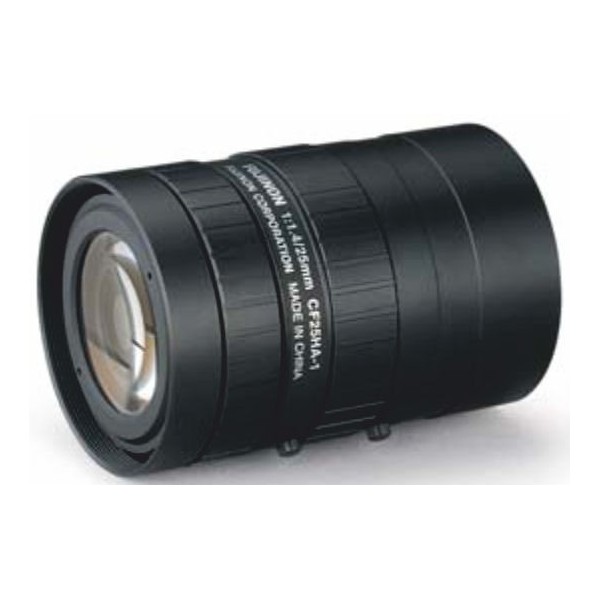

CF25HA-1 Objectif industriel pour camera industrielle

New product


CF25HA-1 1 "25mm F1.4 for vision cameras. High performance industrial vision lens. 25mm focal length, working distance ∞-100mm, C mount with manual diaphragm, 1.5 Megapixels. Anti-vibration and shockproof protection.

More details

The CF25HA-1 is a high resolution design of up to 1.5 mégapixels.
The wide aperture design (F1.4) provides clear images in low light intensity. Low distortion design for precise image input. Robust housing resistant to vibrations and shocks. Equipped with lock buttons for iris and focus.

Model: CF25HA-1
Focal length 25mm
Iris range (F. no) F1.4-F22
View angle 29.9 ° x 22.7 (1 ")
Working distance ∞-100mm
Manual Focus
Iris Manuel
Filter thread M49 x 0.75mm
C mount
Sensor size (max.) 1 "
Television distortion 0.36%
Dimension Φ51 × 75.5mm
Weight: 310g
