Objectif CF12.5HA-1 1 " 12,5 mm F1.4

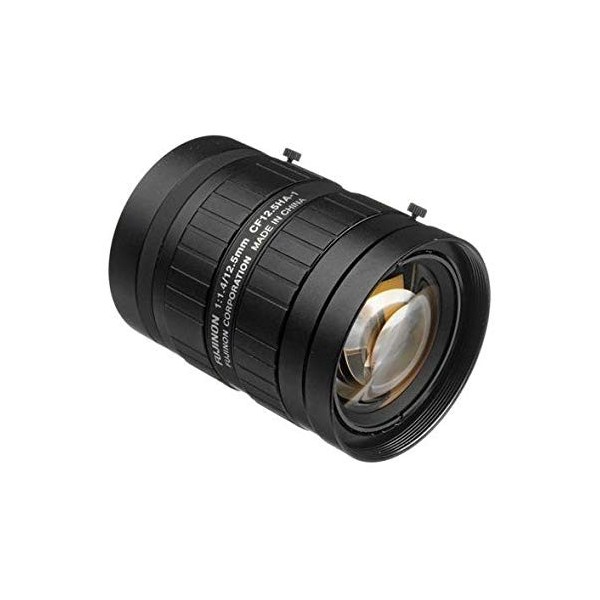

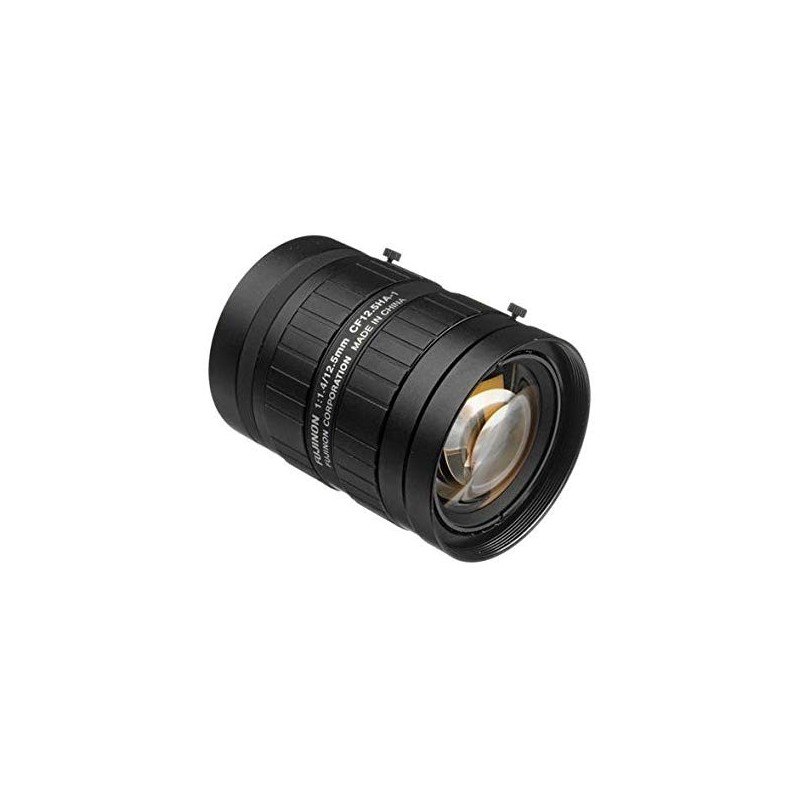

CF12.5HA-1 1 "12.5 mm F1.4 lens
High performance industrial vision objective. C-mount with manual diaphragm, 1.5 megapixels. Focal length of 12.5mm, working distance ∞ - 100mm. Anti-vibration and anti-shock protection.

More details

The CF12.5HA-1 industrial manual lens has been designed to be used with high resolution cameras and obtain images up to 1.5 megapixels. The rear focus system improves performance in macro photography. The wide aperture design (F1.4) provides clear images in low light intensity. Low distortion design for precise image input. Lock buttons for iris and focus. Advanced glass composites and anti-reflective coatings produce detailed images with high contrast. This lens is built in a protective case resistant to vibrations and shocks. Focus and iris rings can be locked

Characteristics
Model: CF12.5HA-1
Focal length: 12.5mm
Iris range (F. no) F1.4-F22
Viewing angle 53.1 ° x 41.2 ° (1 ")
Working distance ∞ - 100mm
Manual focus
Manual Iris
Filter net: M49 x 0.75mm
C mount
Sensor size (max.) 1 "
Television distortion: 0.86%
Dimension: Φ51 × 68.5mm
Weight: 290g
