CF16HA-1 Objectif industriel industriel 1 "16 mm pour caméras de vision industrielle monture C

New product

Quotation

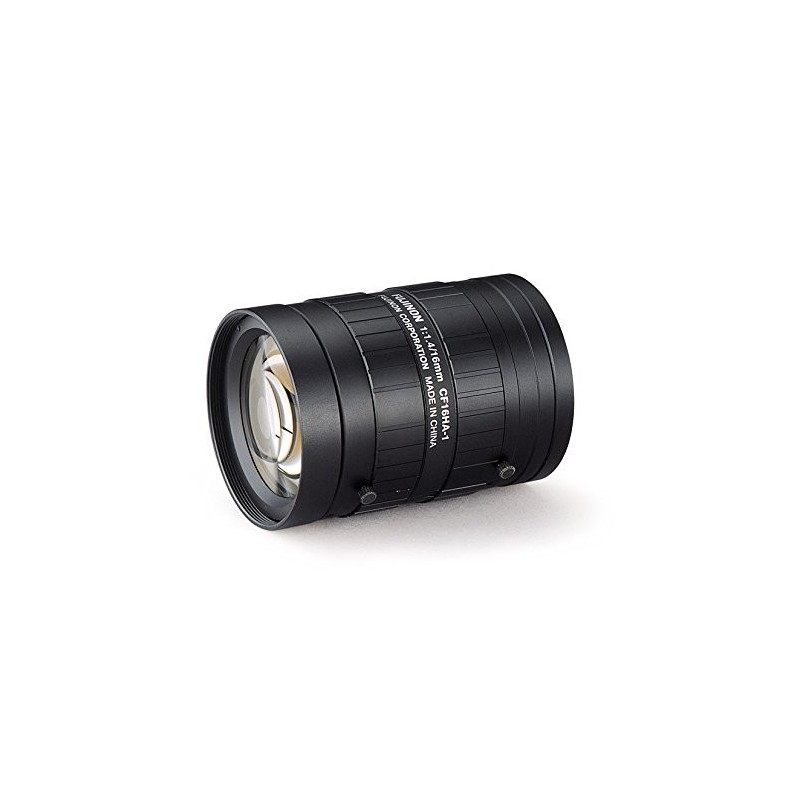

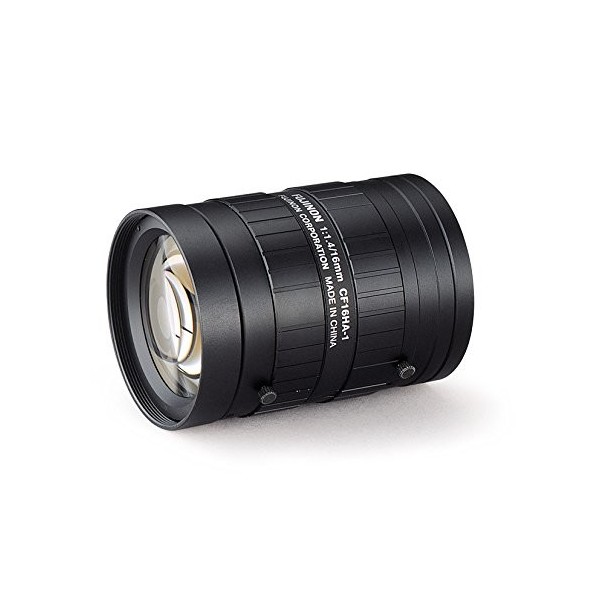

CF16HA-1 1 "16mm F1.4 for vision cameras. High performance industrial vision lens. 16mm focal length, working distance ∞ - 100mm. C-mount with manual diaphragm, 1.5 megapixels. Anti-vibration and shockproof protection.

More details

The CF16HA-1 industrial manual lens has been designed to be used with high resolution cameras and obtain images up to 1.5 megapixels. Advanced glass composites and anti-reflective coatings produce detailed images with high contrast.
This lens is built in a protective case resistant to vibrations and shocks. Focus and iris rings can be locked.

Characteristics
Model: CF16HA-1
Focal length 16mm
Iris range (F. no) F1.4-F22
View angle 42.6 ° x 32.8 ° (1 ")
Working distance ∞ - 100mm
Manual focus
Manual Iris
Filter thread M49 x 0.75mm
C mount
Sensor size (max.) 1 "
Television distortion 0.79%
Dimension Φ51 × 70.5mm
Weight: 280g
