3CCD camera lenses are used for security and claims monitoring, inspections, surveys, assembly line monitoring, image processing and analysis. Fujinon has aligned their products from fixed focal length cameras to zoom lenses. If lenses for normal single CCD cameras are installed on 3CCD cameras, the optimal performance of the optical color separation system of these cameras cannot be guaranteed. It is therefore advisable to install lenses exclusively built for 3CCD cameras.

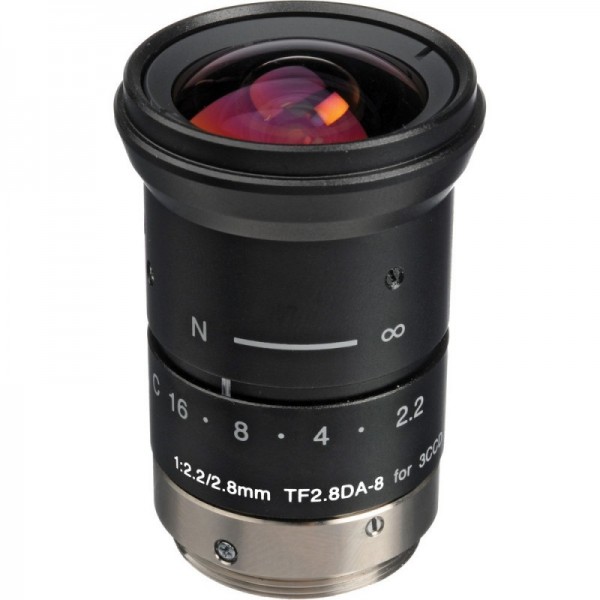

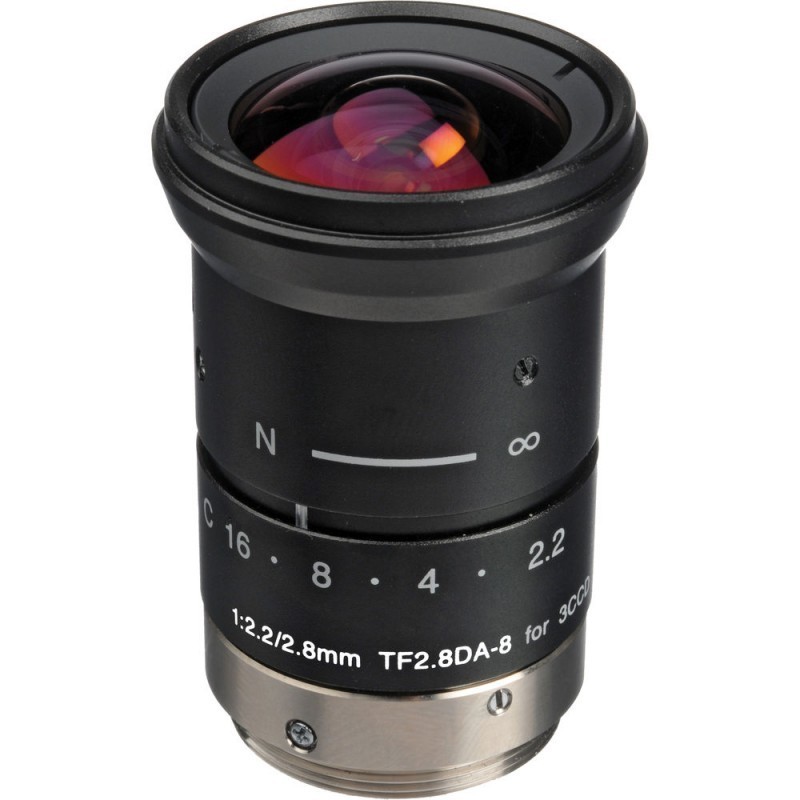

The TF2.8DA-8 lens has been designed to optimize the image quality of 3CCD / CMOS cameras.
Low distortion allows precise image input. Compact, light and robust, it supports various systems.
High color performance for 3CCD cameras, ideal for advanced surveillance applications.
2.8mm focal length
Iris range (F. no) F2.2-F16 Close
Viewing angle 89.1 ° x 69.3 ° (1/3 ")
Working distance ∞ - 100
Filter thread [mm] -
Sensor size (max.) 1/3 "
Television distortion: -6.25%
Dimension: Φ34 × 47mm
