HF9HA-1B 5M 2/3"

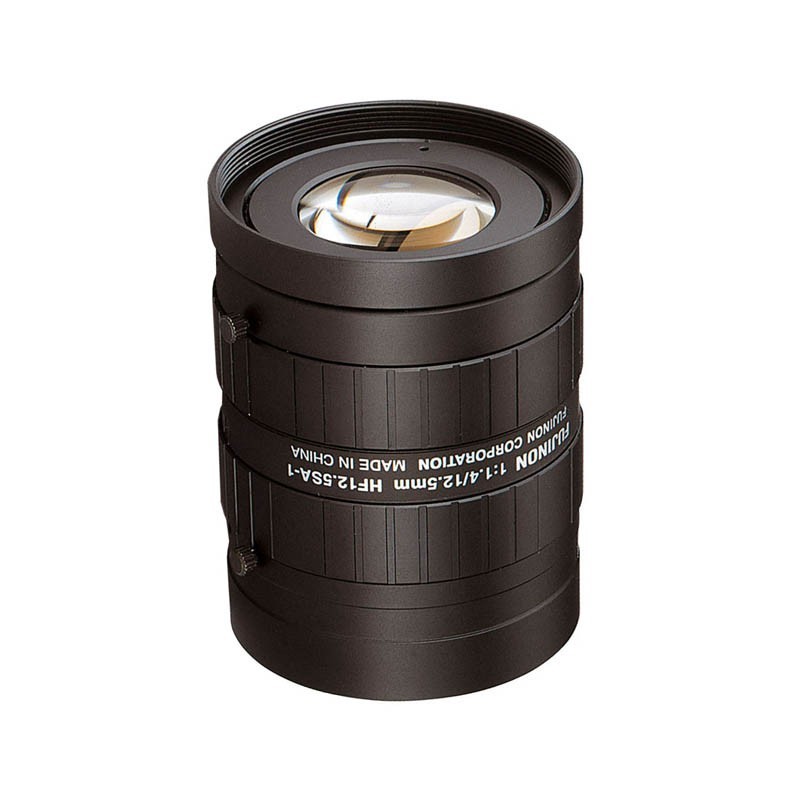

HF12.5SA-1 2/3 "12.5mm F1.4 Lens
C-mount with manual diaphragm, 5 megapixels. Focal length: 12.5mm. Working distance: 1 - 100mm. Compact size, low distortion. Compatible with 2/3 "sensors.

More details

HF12.5SA- Lens with high resolution design, supporting resolution up to 5 MP.
The rear focus system improves performance in macro photography. The wide aperture design (F1.4) provides clear images in low light intensity. Improved image recognition accuracy due to reduced distortion and improved lighting uniformity.
 Robust housing resistant to vibrations and shocks. Equipped with lock buttons for iris and focus.

Characteristics
Model: HF12.5SA-1
Focal length: 12.5mm
Iris range (F. no) F1.4-F22
View angle 38.0 ° x 29.0 ° (2/3 ")
Working distance: ∞ - 100mm
Manual focus
Manual Iris
Filter net: M49 x 0.75mm
Frame: C
Sensor size (max.) 2/3 "
Television distortion: -0.08%
Dimension: Φ51 × 68.5mm
Weight: 295g
