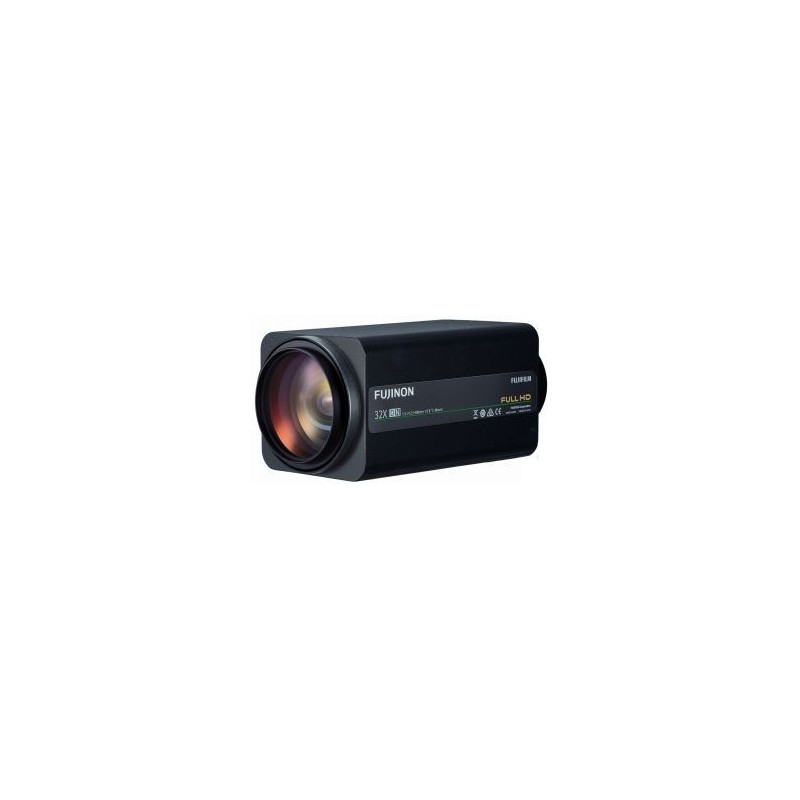

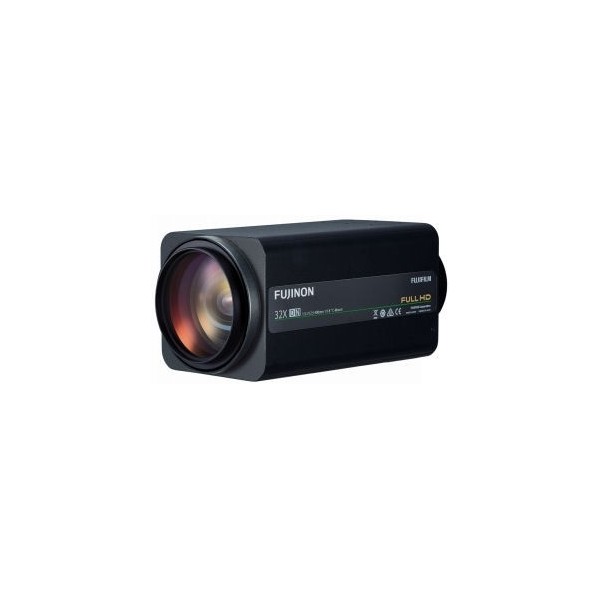

Fujinon FD32x12.5SR4A-CV1 Lens 1 / 1.8 "zoom 32x day / night video switch RS232C

Fujinon FD32x12.5SR4A-CV1 1 / 1.8 "
Zoom lens 32x focal length of 12.5 ~ 400 mm
2 megapixel resolution day / night
Analog control
RS-232 and Pelco D protocol

More details

Fujinon FD32x12.5SR4A-CV1, 1.8 "12.5-400mm (32x) F3.1 lens, with motorized zoom and auto-iris focus (switchable DC / Video), C mount with analog, RS-232 and Pelco D control , day / night, 2 megapixels (Full HD).

Characteristics:
32x zoom lens
2 megapixel resolution for day and night
Focal length in mm 12.5 ~ 400
32X zoom ratio
Applicable lens for 1 / 1.8 "~ 1/4" cameras
Iris range F3.1 ~ F16
Iris operation Switchable iris mode (video or DC) or remote via RS232C interface
Operation tuning
Analog or serial control via RS232C interface
zoom Motorized drive
Analog or serial control via RS232C interface
Angle of view 1 / 1.8 ":
Wide: 30 ° 54 'x 23 ° 32' Phone: 1 ° 02 'x 0 ° 46' 1/3 ": Wide: 21 ° 14 'x 16 ° 02' Tele: 0 ° 42 'x 0 ° 31'
Minimum object distance (M.O.D.) 3 meters
Focus range (from the front lens) in m infinity ~ 3
C mount
Weight: 2.8 kg
Filter net
Equipped with a visible light barrier filter ("fog filter") supports the Pelco D protocol.
