Compact Zoom Lens 3-9mm F / 1.2 IR Mega-Pixel DC-Iris w / Hall Sensor Compact Zoom Lens
New product
The DF010NL has a compact design that allows installation in mini-dome camera housings. The lens offers a horizontal viewing angle of 93 ° at wide angle and an F / 1.2 aperture for monitoring in low light conditions. Remote control of the IR filter.

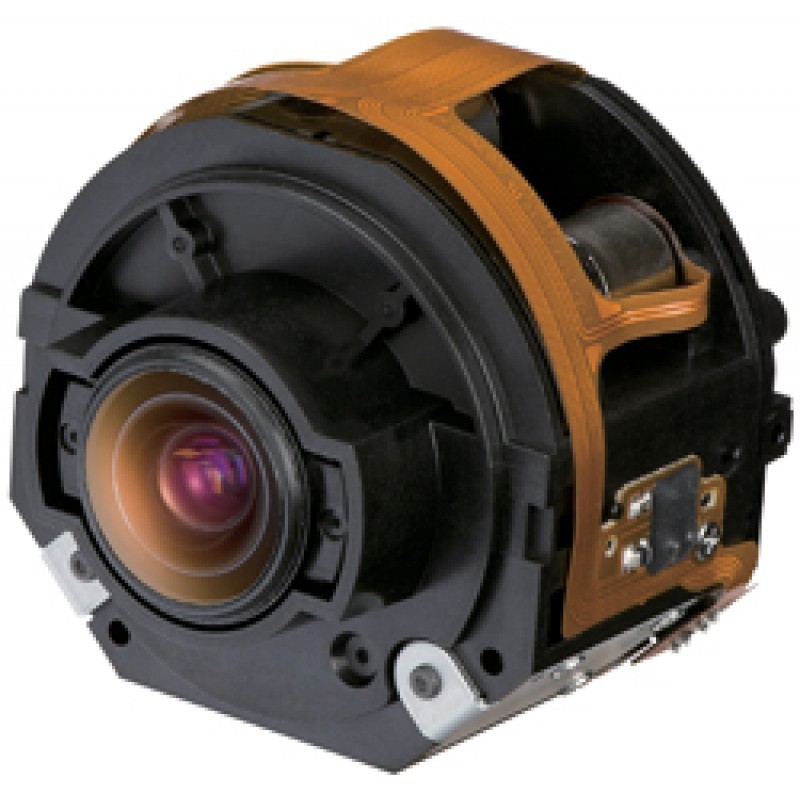

The DF010NL is a compact HD zoom lens with IR cut filter and Hall effect sensor iris.
The mini-dome cameras used Vari-Focal lenses which require manual zooming and focus adjustment. However, the need for more precise focus adjustment capability in Mega-Pixel class cameras increased the time and effort required during installation, creating a need for remote focusing. The number of outdoor installations of mini-dome cameras has also increased, which has resulted in an increased need for remote zoom functionality. Tamron has developed a compact 2 megapixel / Full HD / IR compatible zoom lens to meet these needs. This new product offers the convenience of a zoom lens in a size that fits the low-end mini-dome housing.
The DF010NL zoom and focus can be controlled remotely using precision stepper motors, enabling continuous zooming and auto focus functionality. The DC-iris is equipped with a Hall effect sensor, providing position feedback to allow precise control of the iris. The switching mechanism of the integrated IR filter can also be controlled remotely, allowing a smooth transition from day to night mode.
Characteristics
Model: DF010NL
Type: Zoom Compact lens
Lens format: 1 / 2.8 inch
Resolution: 2MP
Focal length: 3.0 ~ 9mm
Opening range: F-Stop F / 1.2
Zoom Ratio: x 3
IR corrected (aspherical): Yes
Field of view angle:
Large: 101.5 ° x 74.0 °
TV: 34.4 ° x 25.7 ° s)
Iris type stepper motor (P-Iris)
