DF007
New product

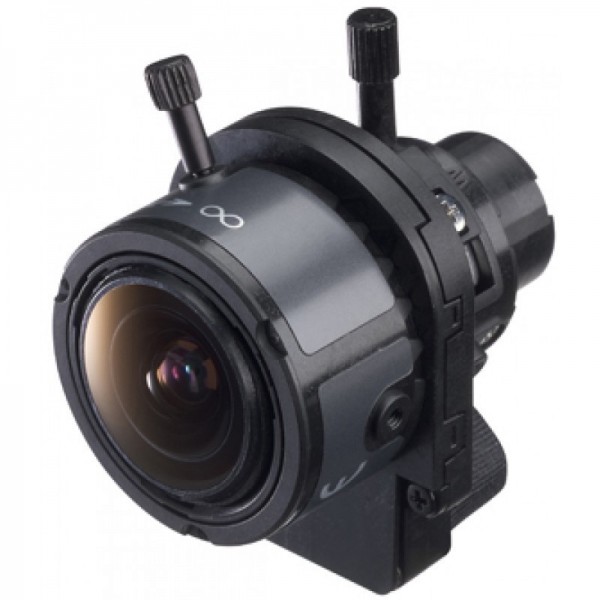

DF007 is a high-resolution, high resolution card-mounted lens, corrected by infrared. Vari-Focal ultra-wide angle lens with a focal length between 2.4 and 6.0 mm, suitable for use with mini dome cameras. This DF007 lens is compatible with infrared, the best viewing angle in its class.
This Vari-Focal lens offers a horizontal viewing angle of 116.5 degrees at an ultra-wide 2.4mm. It allows wide-angle surveillance, with a range of 2.4 mm to 6.0 mm. With a maximum luminous aperture of F / 1.2, the lens is suitable for a wide variety of surveillance environments. Despite its very wide-angle coverage, this lens has almost the same length and maximum diameter as the standard DF004 Vari-Focal lens (with a focal length of 2.8 to 10.5 mm). As a lens suitable for 3 inch mini dome cameras with a mounting diameter of 14mm, this lens can be used on cameras that take lenses the same size as the DF004.
The infrared switching mechanism allows 24-hour monitoring - Clear image quality even at night and in near infrared lighting conditions allows true monitoring. Through the use of aspherical lens elements, this lens provides high image quality. A back flange adjustment mechanism is included.
Characteristics
Model: DF007
Type: Vari-Focal Lens
Lens format: 1/3 "
Ø14mm mount
Focal length 2.4-6 mm
Maximum opening F / 1.2
2.5x zoom ratio
Viewing angle (horizontal x vertical) Wide: 116.8 ° x 85.3 °
TV: 47.4 ° x 35.5 °
Focus range 0.3 m ~ INF
