Industrial panel mount displays
New product

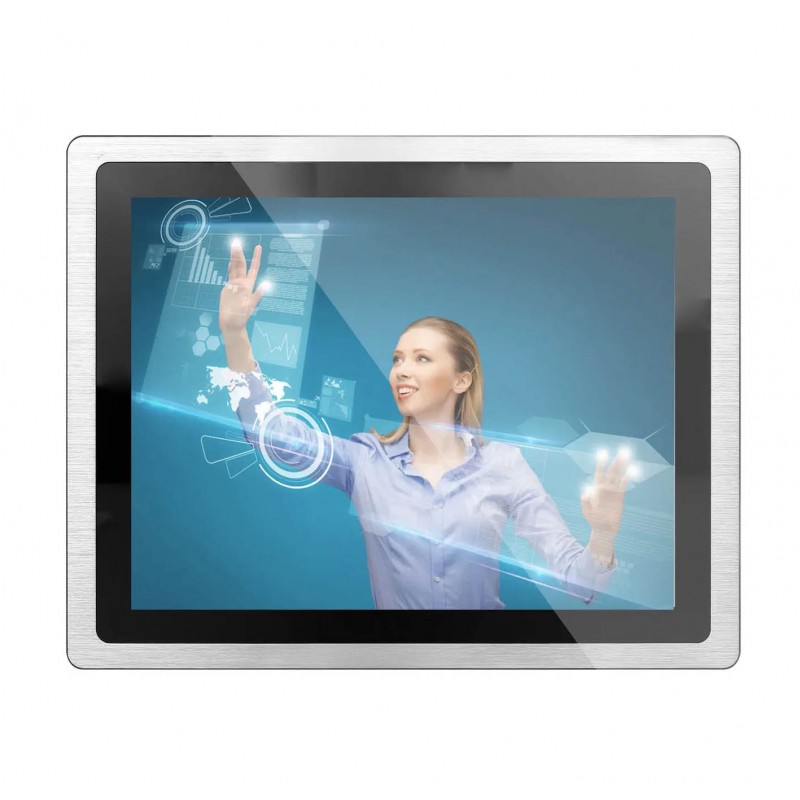

Waterproof Industrial Screens 7" to 24" for Flush Mounting with HMI Panel
New range of industrial display screens, either flush-mountable or rear-mountable using the standard VESA 75 and VESA 100 mounting patterns.
A wide range of mounting supports is available upon request.
Ideal for process control panels or video management, these rugged monitor devices are specifically designed for industrial environments.
Description of the INDUSCREEN range
The industrial environment requires equipment that is not only suited to environmental constraints but also capable of withstanding harsh and sometimes rough usage.
With the INDUSCREEN range, HMIs (Human-Machine Interfaces) become more robust than ever with a reinforced panel and a metal chassis.
This range includes 16 models, from 7" to 24".
An optional touchscreen allows for easy interaction with HMIs, facilitating operators' work.
For very bright environments, the screens are also available with a high-power backlight offering 1000cd/m², ensuring high-quality visibility even in direct sunlight.
Finally, depending on power supply constraints, these screens are available either with a 12VDC power supply or 9-36VDC (nominal 24VDC).
Technical Specifications
- Part Number: INDUSCREEN
- Steel chassis
- Wide or 4:3 format depending on the model
- Sizes from 7" to 24"
- VGA, DVI, or HDMI inputs
- Optional touchscreen
- IP65 front waterproof rating
- Flush mountable with VESA 75 mounting footprint
- Options: High-brightness panel 1000cd/m², 9-32VDC power supply
| Material | Steel |
| Resolution | 800x600 |
| Resolution | 1024x768 |
| Resolution | 1280x1024 |
| Resolution | 1920x1080 Full-HD |
| Resolution | 1280x800 |
| Resolution | 1024x600 |
| Resolution | 1366x768 |
| Resolution | 1440x900 |
| Display size | 7 to 24" (Induscreen product range) |
| Display size | 7" |
| Display size | 8" |
| Display size | 10" |
| Display size | 12" |
| Display size | 15" |
| Display size | 17" |
| Display size | 19" |
| Display size | 22" |
| Display size | 24" |
| Display size | 13" |
| Ingress Protection | IP65 (Front side) |
| Touch screen | Optional |
| Video input | VGA |
| Video input | DVI |
| Video input | HDMI |
| Mounting | Panel Mount |
| Mounting | VESA Mount |
| Brightness | 250nits |
| Brightness | 300nits |
| Brightness | 350nits |
| Brightness | 400nits |
| Brightness | 1000nits Sunlight readable |
| Available options | Sunlight readable |
| Available options | Touch Screen |
| Power Supply | 12VDC |
| Power Supply | 9-32VDC |
16 other products in the same category
ALLWAN MARINE CAMERAS

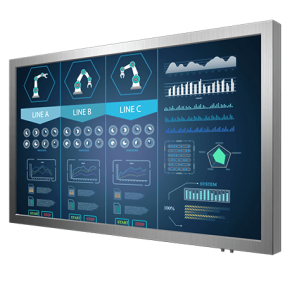

55" Monitor - 316 Stainless Steel - IP65...
