10.4" Stainless Steel Waterproof Display IP67
New product

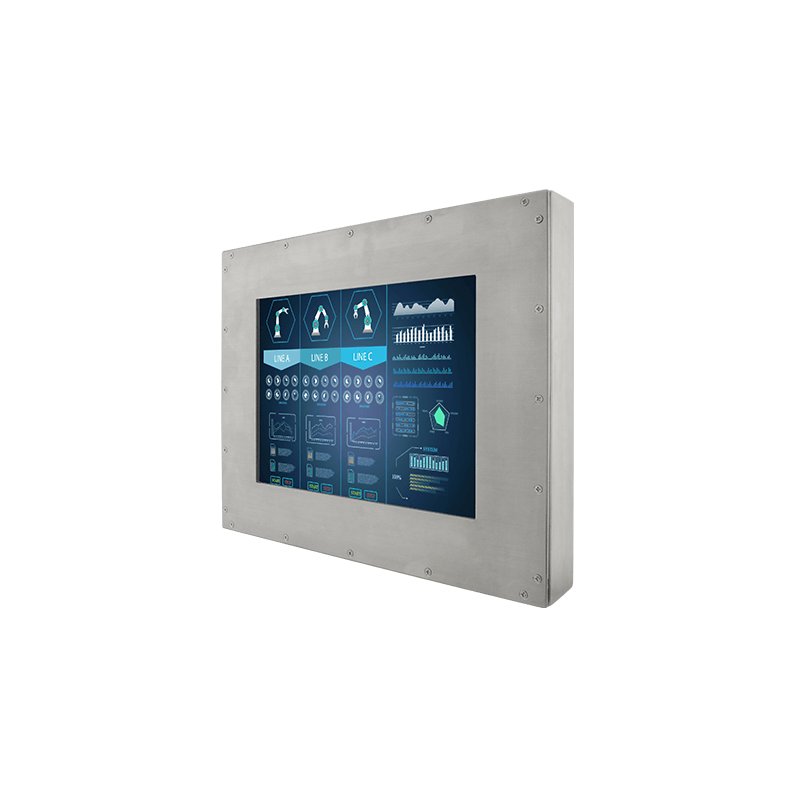

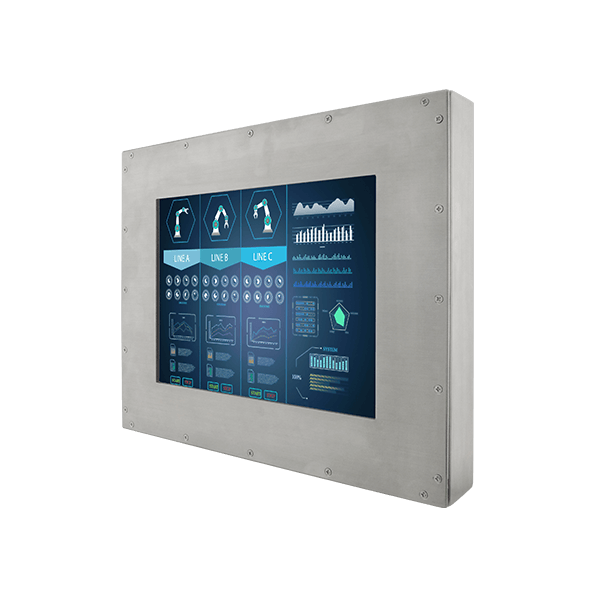

10.4" Stainless Steel 316 Monitor - 100% Waterproof IP67
Designed to display essential information in compact spaces.
Description
This IP67 waterproof display has been specifically designed to provide essential information while taking up minimal space, ensuring extreme durability and a high waterproof rating.
The industrial-grade quality of this device makes it an extremely reliable and long-lasting piece of equipment.
Our 100% waterproof stainless steel industrial monitors are designed and manufactured to meet the highest industrial requirements, as well as offshore and marine applications. They are particularly suited for the pharmaceutical and food industries, as well as offshore environments. We produce IP67 stainless steel AISI316 waterproof screens that withstand intensive liquid exposure, repeated high-pressure washdowns, and dust.
Compliant with IP67 protection standards, these screens are ideal for industrial use. These high-quality industrial displays offer high brightness and are suitable for high-temperature environments.
Technical Specifications
| Specification | Details |
|---|---|
| Screen Size | 10.4 inches |
| Screen/Glass | Optional resistive touch, protective glass (option), SAW Touch (option) |
| Resolution | 1024x768 |
| Panel Brightness | 350.0 nits (Optional Sunlight Readable 1000 nits) |
| Contrast Ratio | 1000:1 |
| Viewing Angles | 88°, 88°, 88°, 88° |
| Colors | 16.2 million |
| Active Area | 210.4 x 157.8 mm |
| Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Certification | CE, FCC |
| USB Port | 1 x USB for touch screen (optional) |
| Video Ports | 1 x VGA, 1 x HDMI (optional), 1 x DVI (optional) |
| Audio | 3.5 mm audio input (optional), 2 x speakers (optional) |
| Dimensions | 311 x 257 x 47.4 mm |
| Mounting | VESA75 mounting |
| Chassis | Metal |
| Cooling System | Fanless design |
| Power Supply | 12V DC |
| Accessories | 1 x VGA cable, 1 x HDMI cable, 100-240V AC to DC adapter, power cable, manual, VESA screws (varies by product) |
| Display size | 10" |
| Resolution | 1024x768 |
| Material | SST 316 |
| Ingress Protection | IP67 |
| Touch screen | Optional |
| Video input | VGA |
| Video input | HDMI |
| Video input | DVI |
| Mounting | VESA Mount |
| Brightness | 1000nits Sunlight readable |
| Brightness | 350nits |
| Available options | Sunlight readable |
| Available options | Protection glass |
| Available options | Optical Bonding (outdoor use) |
| Available options | Touch Screen |
| Power Supply | 12VDC |
