MO1017: 17" industrial display reinforced to withstand shocks, vibrations, and harsh environments

17" Protected Industrial Display

Condition: New product

17" 4:3 Professional Reinforced Shockproof and Vibration-Proof Display

Description

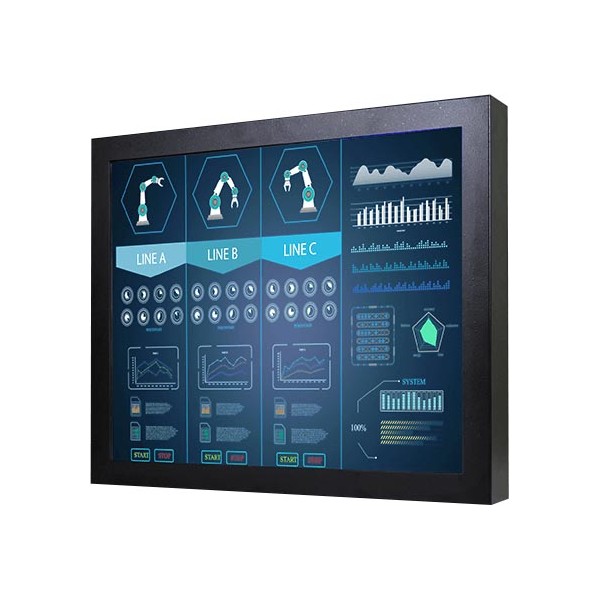

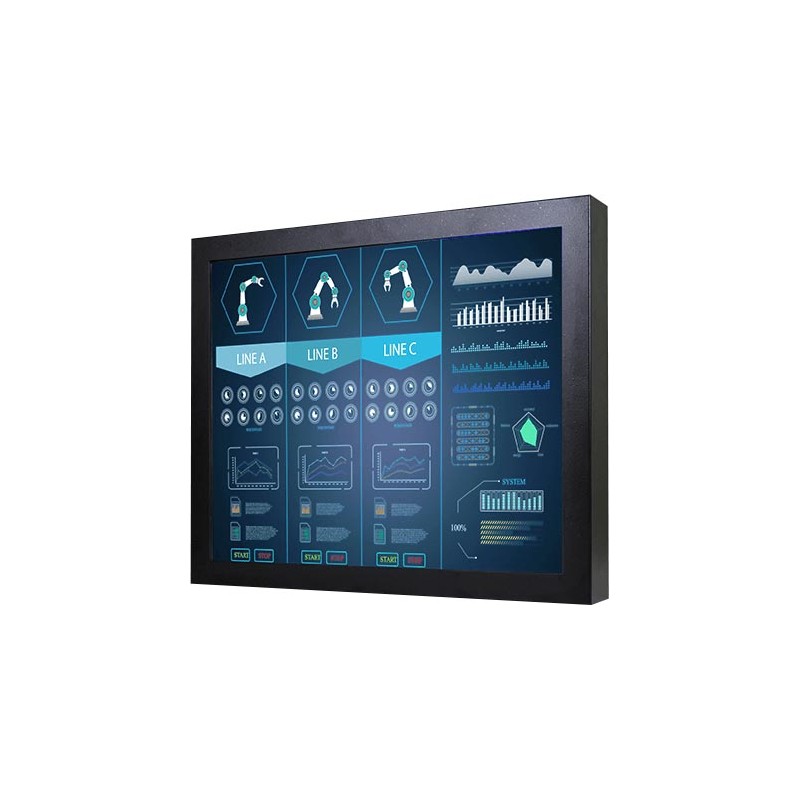

The MO1017 is a 17-inch reinforced industrial display, specially designed to meet the needs of professional environments such as factories and production workshops.

With a robust metal casing, it is built to withstand shocks and the demanding conditions of professional use. This display is also available with an optional resistive touchscreen, allowing easy interaction, even when wearing gloves.

Offering a resolution of 1280x1024, it provides optimal visibility and high precision. It is equipped with multiple ports (USB for touch, VGA, HDMI, DVI), allowing easy integration into various control systems. Additionally, it supports an extended temperature range of 0°C to 50°C, making it an ideal choice for industrial, monitoring, or process management applications.

Advantages

Low Power Consumption
Designed to operate with low energy consumption, this display ensures effective thermal dissipation, making it durable for long-term use in production environments. It is one of the most energy-efficient solutions.
Ease of Installation
With universal mounting options, this industrial display can be mounted on a wall or desk, making it easy to adapt to the specific needs of any industry.
Monitor with Metal Chassis and Optional Touchscreen
The ALLWAN monitor with a metal chassis, available with an optional touchscreen, is offered in multiple sizes and brightness levels, perfectly adapting to indoor environments or those with strong ambient light.
Exceptional Reliability for Various Industrial Applications
ALLWAN industrial displays provide superior image quality and advanced features within a rugged enclosure, ensuring reliable operation for many years, even in the most demanding environments. They are available in various sizes, casing materials, and customization options.
Outstanding Image Quality
Thanks to a modern, sleek design combined with ALLWAN's expertise in industrial computers and touchscreens, this display not only offers a high-quality product at an attractive price but also a sense of technical performance and durability.
Customization and Display Ports
ALLWAN offers a wide range of customization options, including screen size, LCD brightness, glass surface treatment, and various display ports to perfectly suit user needs.

Technical Specifications

Screen Size	17 inches
Screen / Glass	Optional resistive touchscreen, protective glass (optional), Touch SAW (optional)
Resolution	1280x1024
Panel Brightness	350.0 nits (Sunlight option 1000nits)
Contrast Ratio	1000:1
Viewing Angles	85°, 85°, 80°, 80°
Colors	16.7 million colors
Active Area	337.20 x 270.34 mm
Humidity	10% to 90% RH, non-condensing
Operating Temperature	0°C to 50°C
Storage Temperature	-10°C to 60°C
Certifications	CE, FCC
USB Port	1 x USB for touchscreen
Video Ports	1 x VGA, 1 x HDMI (optional), 1 x DVI (optional)
Audio	Audio input (3.5mm) (optional), 2 x Speakers (optional)
Dimensions	398 x 349 x 51.5 mm
Mounting	VESA75 Mount
Chassis	Metal
Cooling System	Fanless design
Power	12V DC, 24V DC (optional)
Accessories	1 x VGA cable, 1 x HDMI cable, 100-240V AC to DC adapter, power cable, manual, VESA screws (varies by product)

Display size	17"
Resolution	1280x1024
Material	Steel
Ingress Protection	IP44
Touch screen	Optional
Video input	DVI
Video input	VGA
Video input	HDMI
Mounting	VESA Mount
Brightness	1000nits Sunlight readable
Brightness	350nits
Available options	Optical Bonding (outdoor use)
Available options	Touch Screen
Available options	Sunlight readable
Available options	Protection glass
Power Supply	12VDC
Power Supply	24VDC

Fiche technique MO1017_FR

Download (318.7k)
