Monitor 17 "stainless steel IP67 waterproof
New product
17" Industrial/Marine Monitor – 100% Waterproof IP67 – SST 316
Ruggedized for industrial use and compliant with food industry standards. IP67 protection
Power supply: 12V or optional 24V DC
Description

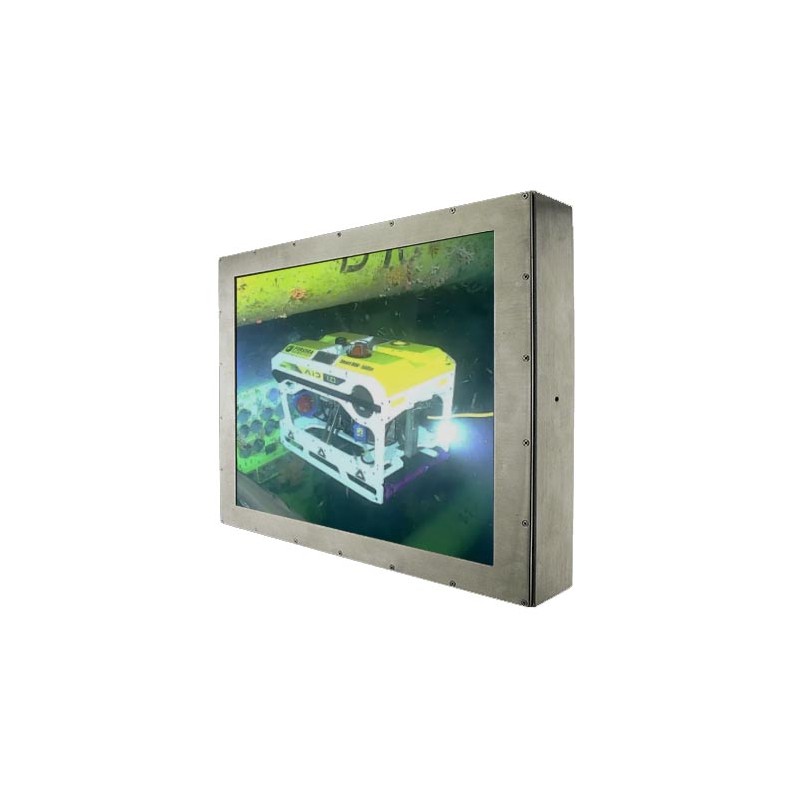

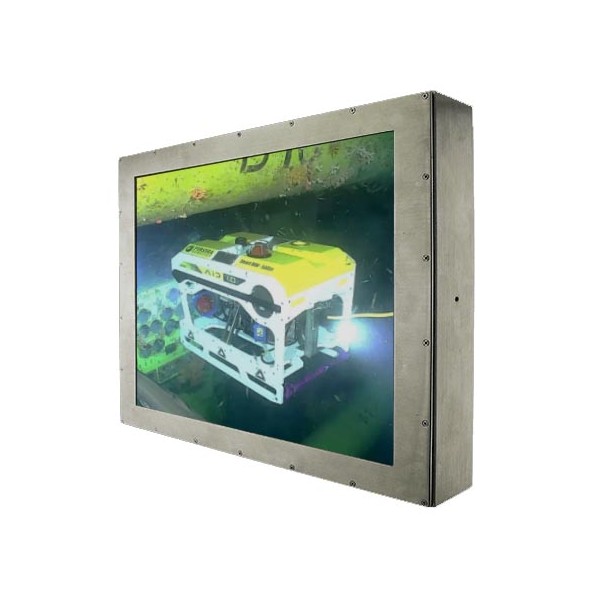

The MO1017IP is a 17-inch industrial stainless steel monitor, specifically designed for demanding environments where durability and protection against harsh conditions are essential.
Equipped with a 316 stainless steel chassis and IP67-rated waterproofing on all sides, this monitor is fully protected against dust and water jets. Its rugged design ensures resistance to the toughest conditions, including environments exposed to high-pressure washing, water splashes, or aggressive chemicals.
With advanced features such as optical bonding and a reinforced construction, the MO1017IP by ALLWAN provides a reliable and high-performance display solution for industrial applications requiring robust equipment.
Key Features
- High-Performance Display: 17-inch LCD screen with a 1280 x 1024 resolution, delivering sharp and detailed images.
- Touchscreen Technology (Optional): Available with a 5-wire resistive touch panel, suitable for industrial environments and use with gloves.
- Optical Bonding (Optional): Enhances readability by reducing reflections while improving the screen's durability against vibrations and shocks.
- Advanced Waterproofing: IP67 certification on all sides, ensuring total protection against dust, harsh weather conditions, and high-pressure washdowns.
- Rugged Construction: 316 stainless steel chassis, ideal for harsh environments and industries requiring resistance to chemicals and corrosion.
- Industrial Connectivity: Equipped with VGA and DVI-D inputs, ensuring compatibility with a wide range of industrial systems.
- Flexible Installation: Designed for rear mounting via a standard VESA mounting interface.
Applications
The MO1017IP is perfectly suited for demanding environments requiring a reliable and robust industrial display, including:
- Human-Machine Interface (HMI) for industrial process control and monitoring.
- Food, pharmaceutical, and chemical industries, where 316 stainless steel and IP67 waterproofing ensure optimal hygiene and strong resistance to cleaning agents.
- Environments subjected to frequent washdowns or strict waterproofing requirements, thanks to IP67 protection.
- Marine and offshore industries, requiring high resistance to humid conditions, water splashes, and exposure to saltwater (316 stainless steel and IP67 standard).
- Outdoor applications, where optical bonding enhances readability by reducing glare and increasing contrast.
- Automation and industrial production, where reliability and durability are essential.
Technical Specifications
| Model | MO1017IP |
|---|---|
| Screen Size | 17 inches |
| Resolution | 1280 x 1024 |
| Display Area | 337.92 x 270.34 mm |
| Panel Type | LCD (optional 5-wire resistive touch) |
| Optical Bonding | Optional |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angles | 85/85°/80°/80° |
| Connectivity | VGA, DVI-D, HDMI, composite video (to be defined) |
| Waterproof Connectors | Supplied with a standard 2m cable |
| Protection Rating | IP67 |
| Other Features | Fanless system |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10% to 90% (Non-Condensing) |
| Chassis Material | 316 Stainless Steel |
| Dimensions | 418 x 350 x 60.4 mm |
| Mounting | Rear, VESA 100 |
| Power Supply | 12V DC 2A (Optional 24V DC) |
| Certifications | CE, FCC |
| Material | SST 316 |
| Resolution | 1280x1024 |
| Display size | 17" |
| Ingress Protection | IP67 |
| Touch screen | Optional |
| Video input | HDMI |
| Video input | DVI |
| Video input | VGA |
| Mounting | VESA Mount |
| Brightness | 350nits |
| Brightness | 1000nits Sunlight readable |
| Available options | Protection glass |
| Available options | Optical Bonding (outdoor use) |
| Available options | Touch Screen |
| Available options | Sunlight readable |
| Power Supply | 12VDC |
