19" Display rugged for industry and plants
New product

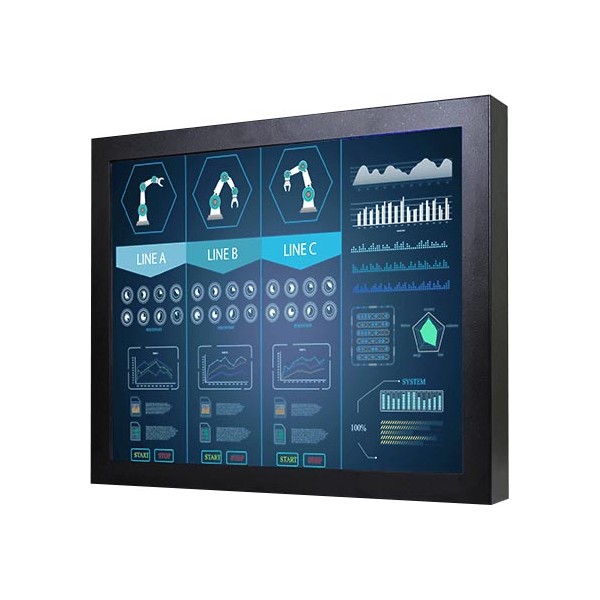

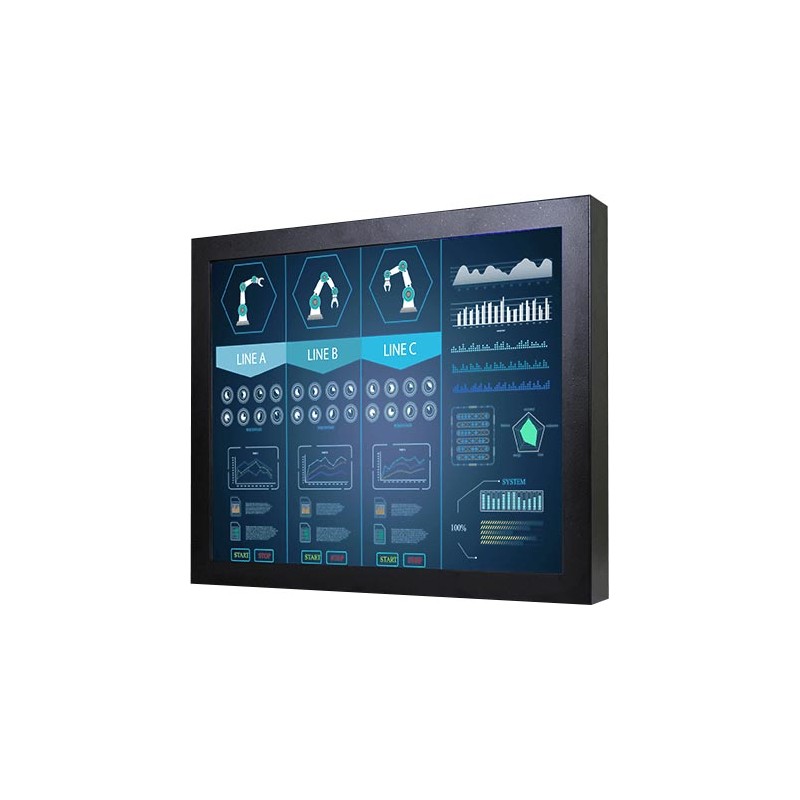

19" rugged monitor shockproof vibration-resistant
Description
The 19" reinforced industrial MO1019 screen is designed to provide performance suited for professional uses such as manufacturing and production workshops.
With its robust metal casing, it is resistant to shocks and the conditions of professional use.
Its optional resistive touch screen allows for easy interaction, even while wearing gloves.
Offering a resolution of 1280x1024, it ensures excellent visibility and accuracy. It is also equipped with customizable ports (USB (touch), VGA, HDMI, or DVI) for easy integration into control systems. Suitable for a wide temperature range (0°C to 50°C), it is ideal for industrial applications, surveillance, or process management.
Advantages
Low energy consumption
This screen is designed for low energy consumption and efficient heat dissipation, making it durable for long-term use in production facilities. It is the most energy-efficient solution.
Easy installation
This industrial screen offers universal mounting options for wall or desk installation, facilitating installation and use in various industries according to specific needs.
Chassis monitor with touch screen
ALLWAN’s chassis monitor with resistive touch screen optional, available in various sizes and brightness levels for indoor and with gigh level of ambiant luminosity applications.
High reliability for various industrial applications
ALLWAN industrial monitors provide superior image quality and advanced features in a robust housing, ensuring years of reliable operation in any industrial environment. Available in different sizes, casing materials, and options, these screens are highly versatile.
Exceptional image quality
A sophisticated and timeless design combined with ALLWAN’s expertise in industrial computers and touch screens offers not only a quality product at an attractive price but also a sense of technical superiority and future-readiness.
Display ports and customization
ALLWAN offers a wide range of customization options, such as product size, LCD brightness, glass surface treatment, display ports, etc.
Technical Specifications
| Screen size | 19 inches |
| Screen/Glass | Optional resistive touch screen, protective glass (optional), Touch SAW (optional) |
| Resolution | 1280x1024 |
| Panel brightness | 300.0 nits – Optional SunLight 1000cd/m² |
| Contrast ratio | 2000:1 |
| Viewing angles | 89°, 89°, 89°, 89° |
| Colors | 16.7 million colors |
| Active area | 376.32x301.06 mm |
| Humidity | 10% to 90% RH, non-condensing |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB port | 1 x USB for touch screen |
| Video ports | 1 x VGA, 1 x HDMI (optional), 1 x DVI (optional) |
| Audio | Audio input (3.5mm) (optional), 2 x speakers (optional) |
| Dimensions | 430 x 355 x 50 mm |
| Mounting | VESA100, VESA300x100, or 2 screws with 200mm spacing |
| Chassis | Metal |
| Cooling system | Fanless design |
| Power | 12V DC, 24V DC (optional) |
| Accessories | 1 x VGA cable, 1 x HDMI cable, 100-240V AC to DC adapter, power cable, manual, VESA screws (varies by product) |
| Display size | 19" |
| Resolution | 1280x1024 |
| Material | Steel |
| Ingress Protection | IP44 |
| Touch screen | Optional |
| Mounting | VESA Mount |
| Brightness | 1000nits Sunlight readable |
| Brightness | 300nits |
| Available options | Sunlight readable |
| Available options | Protection glass |
| Available options | Optical Bonding (outdoor use) |
| Available options | Touch Screen |
| Power Supply | 24VDC |
| Power Supply | 12VDC |
