32" AISI 316 100% waterproof IP65 display
New product
42" screen protected IP65 (dust and water) on all sides, stainless steel enclosure
For industrial and outdoor use.
Video/computer input signals to be defined among HDMI, VGA, DVI.
This monitor is designed for environments where regular cleaning is required, where corrosive conditions and potential shocks or vibrations may occur, and it is also perfectly suited for outdoor use.
Description

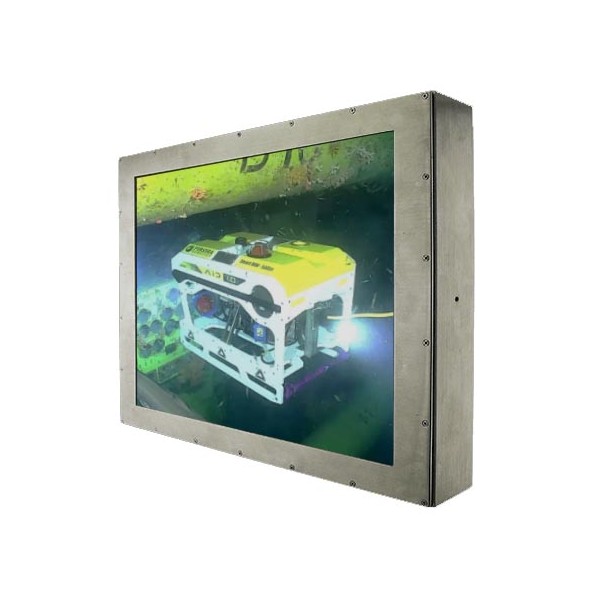

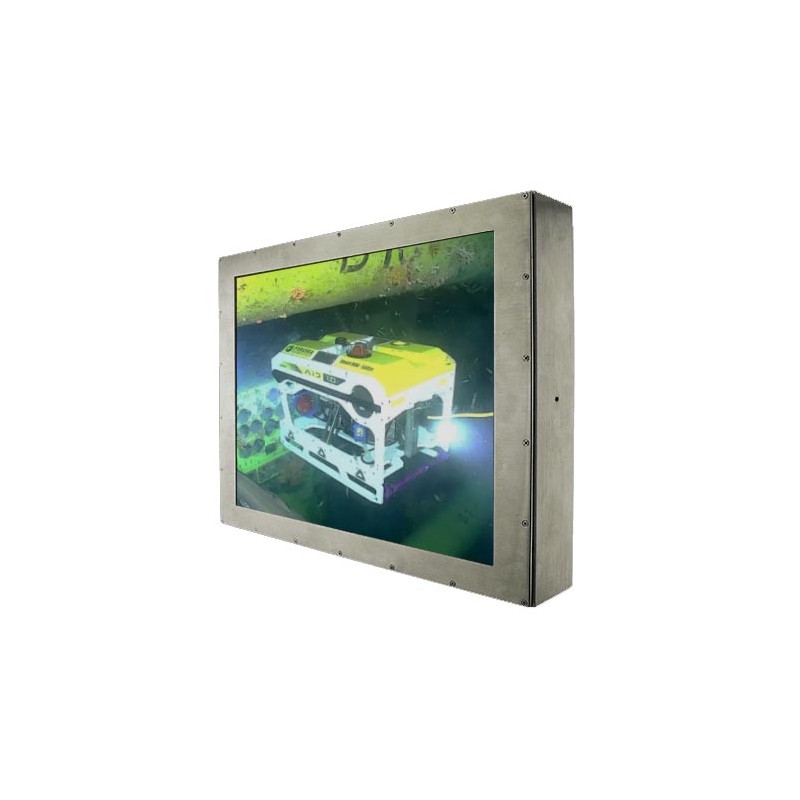

The MO1042IP is a reinforced, professional-grade, waterproof 42" screen designed for harsh environments where resilience to extreme conditions is crucial.
Its stainless steel enclosure (AISI316) and IP65 rating on all sides provide full protection against dust and water projections.
With its durable construction and advanced features such as optical bonding, the ALLWAN MO1042IP is the ideal solution for industries requiring a reliable, high-performance display perfectly suited for demanding conditions.
Main Features
Display Panel: 42-inch screen with Full HD 1920x1080 resolution, providing clear and detailed images.
Touchscreen: Not available on this model.
Optical Bonding (optional): Improves readability by reducing glare, enhances screen durability, and optimizes resilience to vibrations or shocks by bonding the panel to the protective glass with a special resin.
Complete Protection: Conforms to IP65 standards on all sides, ensuring protection against dust and water projections.
Robust Construction: Made of AISI316 stainless steel, ideal for aggressive environments or areas with chemical contact.
Varied Connectivity: Supports VGA, DVI-D, or HDMI inputs to accommodate various industrial computer systems.
Flexible Mounting: Includes VESA200x200 and VESA200x600 mounting patterns on the back.
Applications
The MO1042IP is engineered to provide a robust and reliable display, even in the most demanding industrial environments. Perfectly suited for extreme conditions, it integrates seamlessly into various professional applications, ensuring performance and longevity:
- Human-Machine Interface (HMI) for supervising industrial operations.
- Food, pharmaceutical, and chemical industries where stainless steel and IP protection ensure optimal hygiene and durability.
- Maritime and offshore sectors requiring high resistance to humidity, splashes, and salty air.
- Outdoor applications where optical bonding improves readability in direct sunlight by reducing glare and increasing contrast.
- Industrial automation and production, where reliability and durability are essential.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MO1042IP |
| Screen Size | 42 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Panel Type | LCD |
| Optical Bonding | Optional |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 4000:1 |
| Viewing Angles | 89° (H) / 89° (V) |
| Connectivity | VGA, DVI-D, HDMI (to be defined) |
| Protection Rating | IP65 on all sides |
| Operating Temperature | 0°C to 45°C (Optional: -10°C to +50°C) |
| Chassis Material | AISI316 Stainless Steel |
| Mounting | Rear mounting, VESA200x200 and VESA600x200 |
| Power Supply | 24V DC |
| Weight | 34 Kg |
| Display size | 42" |
| Resolution | 1920x1080 Full-HD |
| Material | SST 316 |
| Ingress Protection | IP65 |
| Touch screen | Optional |
| Video input | DVI |
| Video input | VGA |
| Video input | HDMI |
| Mounting | VESA Mount |
| Brightness | 500nits |
| Available options | Optical Bonding (outdoor use) |
| Available options | Protection glass |
| Available options | Touch Screen |
| Power Supply | 24VDC |
