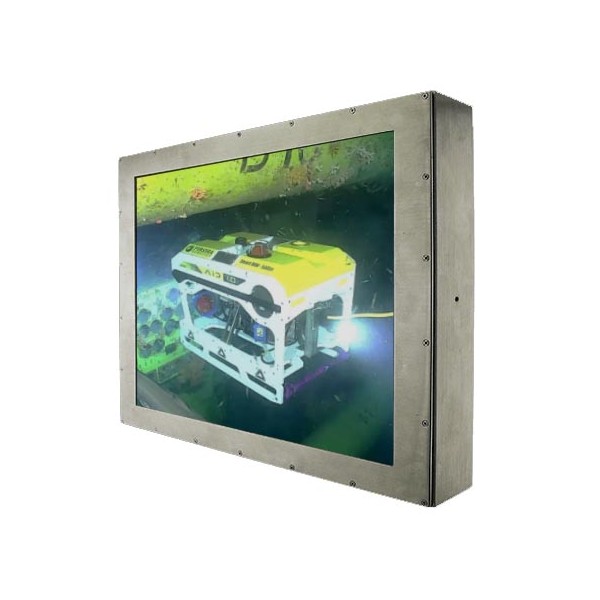

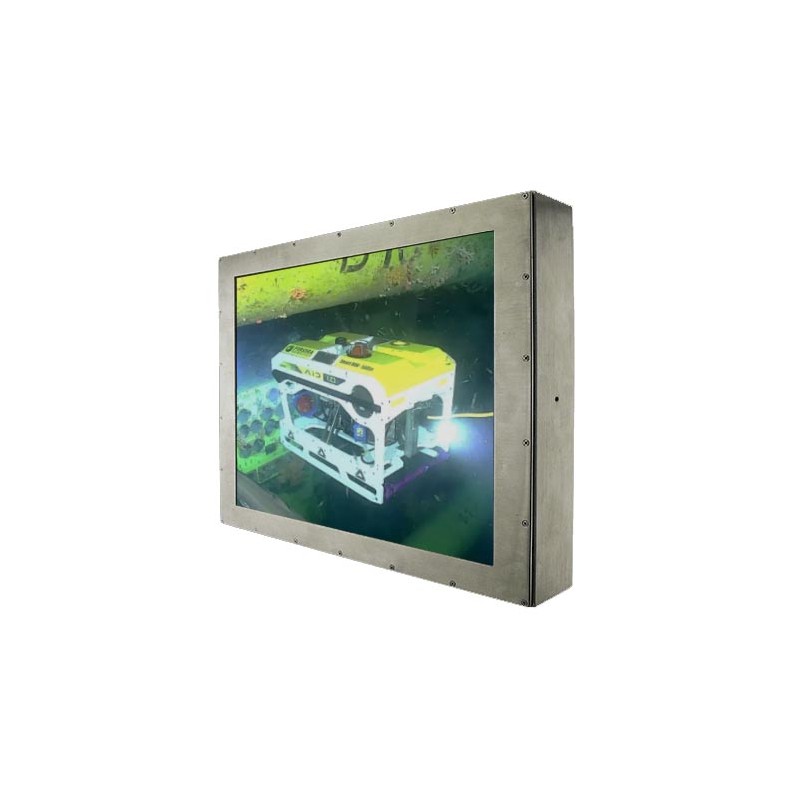

15" Marine SST Waterproof Display IP67
New product
15" Monitor 100% Waterproof IP67 for industrial worksites
High Brightness Full Sunlight Hardened
IP67 protection
Power supply 12V or 24VDC
Waterproof stainless steel monitor with BNC, VGA, DVI, HDMI
Description
The MO1015IP is a 15-inch industrial display designed for demanding work environments where resistance to harsh conditions is crucial. Its 316 stainless steel casing and IP67 rating ensure effective protection against dust and intense water splashes from all directions.
This robust model is equipped with advanced features, such as optional optical bonding and IP67 sealing, providing a reliable solution for industries requiring high-performance displays even in extreme conditions.
Key Features
- Display: 15-inch LCD panel with a resolution of 1024 x 768 for a perfectly adapted image to the screen size.
- Touch Technology (optional): 5-wire resistive touchscreen, ideal for industrial environments, even when wearing gloves.
- Optical Bonding (optional): Reduces reflections, enhances visibility, and increases screen durability, especially in case of vibrations or shocks.
- Full Protection: IP67 certified, ensuring protection against dust and water splashes.
- Reinforced Construction: 316 stainless steel casing, perfect for corrosive environments or exposure to chemicals and seawater.
- Industrial Connectivity: VGA, DVI-D ports for wide compatibility with industrial systems.
- Flexible Installation: Possible recessed installation for easy integration into control panels or industrial cabinets.
Applications
The MO1015IP is designed for environments where reliability and robustness are essential. It is ideal for sectors such as:
- Human-Machine Interface (HMI) for controlling and monitoring industrial processes.
- Food, pharmaceutical, and chemical industries, where the resistance of stainless steel and IP protection guarantee hygiene and durability.
- Environments requiring enhanced sealing, particularly with IP67 certification.
- Marine and offshore industries, requiring protection against humidity, splashes, and exposure to saline conditions.
- Outdoor applications, where optical bonding improves readability in direct sunlight by reducing reflections and enhancing contrast.
- Industrial automation, where strength and reliability are critical.
Technical Specifications
| Model | MO1015IP |
| Screen Size | 15 inches |
| Resolution | 1024 x 768 |
| Display Area | 304.10 x 228.10 mm |
| Panel Type | LCD (optional 5-wire resistive touch) |
| Optical Bonding | Optional |
| Brightness | 1000 cd/m² |
| Contrast | 2000:1 |
| Viewing Angles | 88/88°/88°/88° |
| Connectivity | VGA, DVI-D, HDMI, composite video (to be defined) |
| Waterproof Connectors | Yes, 2m standard cable |
| Protection Rating | IP67 |
| Other Features | Fanless system |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10% to 90% Non-Condensing |
| Casing Material | 316 Stainless Steel |
| Dimensions | 383 x 310 x 57 mm |
| Mounting | Rear, VESA100 |
| Power Supply | 12V DC 2A (optional 24VDC) |
| Certifications | CE, FCC |
| Display size | 15" |
| Resolution | 1024x768 |
| Material | SST 316 |
| Ingress Protection | IP67 |
| Touch screen | Optional |
| Video input | BNC CVBS |
| Video input | DVI |
| Video input | VGA |
| Video input | HDMI |
| Mounting | VESA Mount |
| Brightness | 1000nits Sunlight readable |
| Available options | Sunlight readable |
| Available options | Protection glass |
| Available options | Optical Bonding (outdoor use) |
| Available options | Touch Screen |
| Power Supply | 24VDC |
| Power Supply | 12VDC |
