DISPLAY - 22" RUGGED INDUSTRIAL
New product

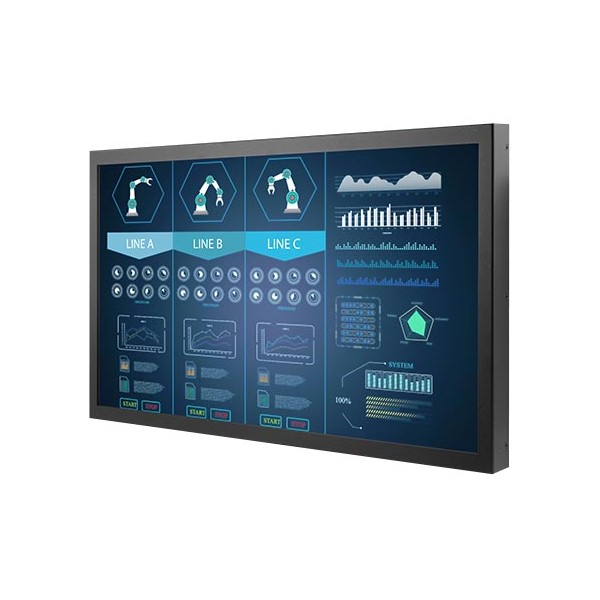

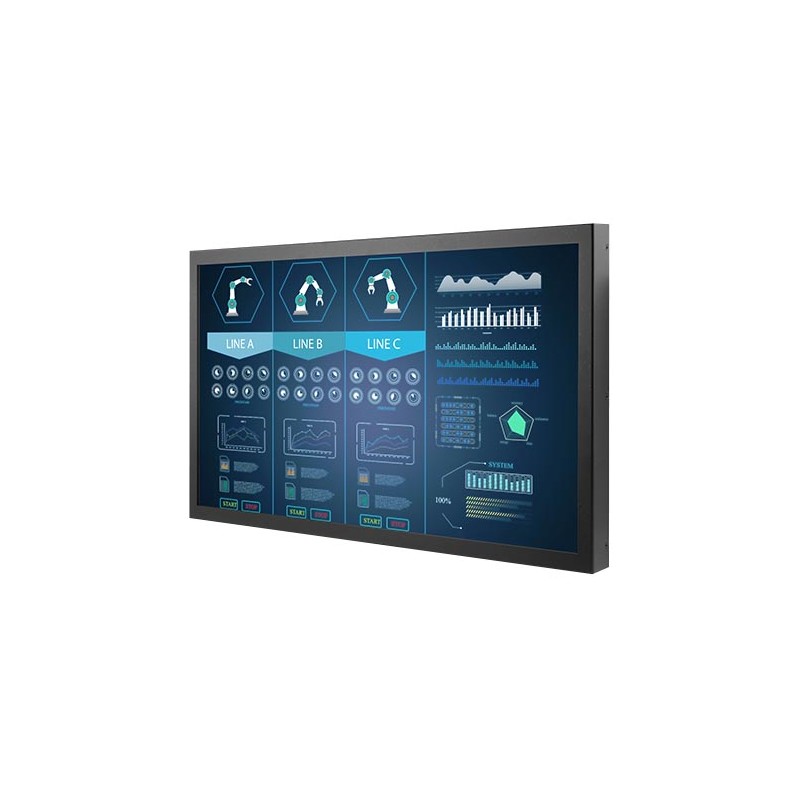

Display Unit - 22" Reinforced Industrial Screen for Professional Applications
Description
The 21.5" industrial MO1022 display is designed for optimal performance in professional environments like factories and production workshops. Featuring a robust metal housing, it is resistant to shocks and harsh conditions. The optional resistive touchscreen enables easy interaction, even with gloves. With Full HD resolution, it ensures excellent visibility and precision. Equipped with various I/O ports (USB, VGA, HDMI, DVI), it integrates seamlessly into control systems. It operates in temperatures ranging from 0°C to 50°C, ideal for industrial applications, monitoring, and process management.
Advantages
- Low Power Consumption: Designed for energy efficiency and effective heat dissipation for long-term durability.
- Easy Mounting: Universal mounting options for wall or desk installation.
- Chassis-Mount Display: Available with resistive or capacitive touch, for indoor and outdoor applications.
- High Reliability: Delivers superior image quality and years of reliable operation in industrial environments.
- Exceptional Image Quality: Combines sophisticated design with technical expertise, offering high-quality, cost-effective solutions.
- Display Ports & Customization: Various customization options including product size, LCD brightness, glass surface treatment, and display ports.
Technical Specifications
Here is the table in English:
| Screen Size | 21.5 inches |
| Touch/Glass | Optional resistive touchscreen, protective glass (optional), SAW Touch (optional) |
| Resolution | 1920x1080 |
| Panel Brightness | 250 nits (Optional Sunlight 1000cd/m²) |
| Contrast Ratio | 3000:1 |
| View Angles | 89°, 89°, 89°, 89° |
| Colors | 16.7 million colors |
| Active Area | 476.64 x 268.11 mm |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 1 x USB for touch screen |
| Video Ports | 1 x VGA, 1 x HDMI (optional), 1 x DVI (optional) |
| Audio | Audio line-in (3.5mm) (optional), 2 x speakers (optional) |
| Dimensions | 506 x 302 x 60.5 mm |
| Mounting | VESA Mount |
| Enclosure | Metal |
| Cooling System | Fanless design |
| Power | 12V DC, 24V DC (optional) |
| Accessories | 1 x VGA cable, 1 x HDMI cable, 100-240V AC to DC adapter, power cord, manual, VESA screws (varies by product) |
| Display size | 22" |
| Resolution | 1920x1080 Full-HD |
| Material | Steel |
| Ingress Protection | IP44 |
| Touch screen | Optional |
| Video input | DVI |
| Video input | VGA |
| Video input | HDMI |
| Mounting | VESA Mount |
| Brightness | 1000nits Sunlight readable |
| Brightness | 250nits |
| Available options | Sunlight readable |
| Available options | Protection glass |
| Available options | Optical Bonding (outdoor use) |
| Available options | Touch Screen |
| Power Supply | 12VDC |
| Power Supply | 24VDC |
