32" AISI 316 IP67 waterproof monitor
New product
32" Display 100% Waterproof IP65 on All Sides, Stainless Steel Chassis
For Industrial and Outdoor Applications
Video/computer input signals to be defined among HDMI, VGA, DVI, or BNC for composite video.
This monitor is designed for environments where frequent cleaning, corrosive conditions, and/or the possibility of shocks or vibrations occur, and is suitable for outdoor use.
Description

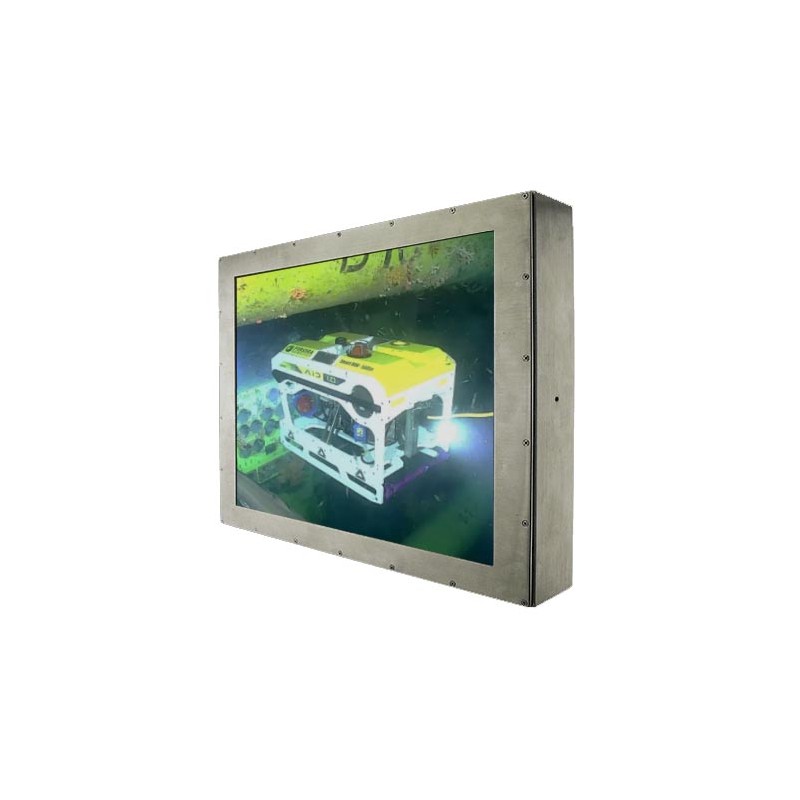

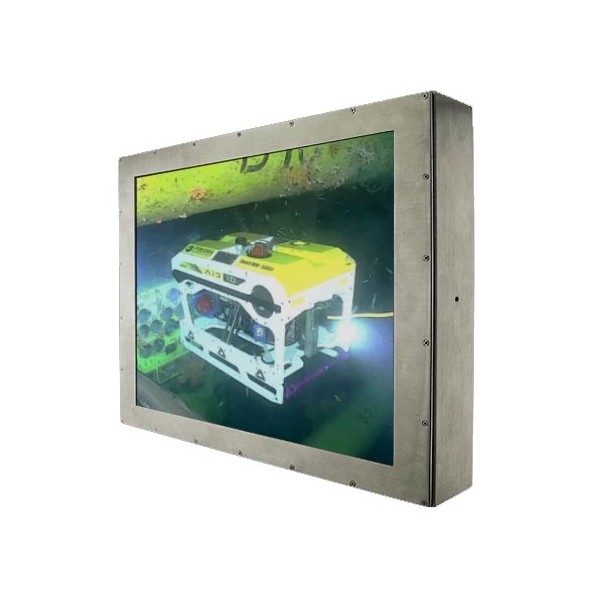

The MO1032IP is a reinforced 32" professional stainless steel display, designed for demanding environments where durability and resistance to extreme conditions are crucial.
Its AISI316 stainless steel housing and IP65-rated waterproofing on all sides ensure full protection against dust and water splashes.
With its solid construction and advanced features such as optical bonding, the MO1032IP by ALLWAN is the perfect solution for industrial applications requiring high-performance, durable, and efficient display solutions in harsh conditions.
Key Features
- Display Panel: 32-inch screen with Full HD 1920x1080 resolution, delivering smooth and detailed images.
- Touchscreen: Not available on this model.
- Optical Bonding (optional): Enhances readability by reducing reflections, increases screen durability, and improves resistance to vibrations and shocks by bonding the panel to the protective glass with a special resin.
- Full Protection: Compliant with IP65 standards on all sides, providing complete resistance against dust and water splashes.
- Robust Construction: Built with AISI316 stainless steel, ideal for harsh industrial environments exposed to chemicals or aggressive conditions.
- Versatile Connectivity: Supports VGA, DVI-D, and HDMI inputs to integrate seamlessly into industrial computing systems.
- Flexible Mounting: VESA100x200 and VESA100x400 rear mounting options.
Applications
The MO1032IP is engineered to provide a reliable and durable display solution in the most demanding industrial settings. Its adaptability makes it ideal for various professional applications, ensuring performance and longevity in:
- Human-Machine Interface (HMI): Industrial operation supervision.
- Food, pharmaceutical, and chemical industries: Where stainless steel housing and IP-rated protection ensure optimal hygiene and durability.
- Maritime and offshore environments: Designed to withstand high humidity, water splashes, and salty air exposure.
- Outdoor applications: Optical bonding improves sunlight readability, reducing glare and enhancing contrast.
- Industrial automation and production: Where ruggedness and reliability are essential.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MO1032IP |
| Screen Size | 32 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Panel Type | LCD |
| Optical Bonding | Optional |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 4000:1 |
| Viewing Angles | 89° (H) / 89° (V) |
| Connectivity | VGA, DVI-D, HDMI (to be defined) |
| Protection Rating | IP65 on all sides |
| Operating Temperature | 0°C to 45°C (Optional: -10°C to +50°C) |
| Chassis Material | AISI316 Stainless Steel |
| Mounting | Rear mounting, VESA200x100 and VESA400x100 |
| Power Supply | 24V DC |
| Weight | 18 Kg |
| Display size | 32" |
| Resolution | 1920x1080 Full-HD |
| Material | SST 316 |
| Ingress Protection | IP65 |
| Touch screen | Optional |
| Video input | HDMI |
| Video input | DVI |
| Video input | VGA |
| Mounting | VESA Mount |
| Brightness | 400nits |
| Brightness | 1000nits Sunlight readable |
| Available options | Protection glass |
| Available options | Optical Bonding (outdoor use) |
| Available options | Touch Screen |
| Available options | Sunlight readable |
| Power Supply | 24VDC |
