15" Display unit Stainless steel - IP69K
New product

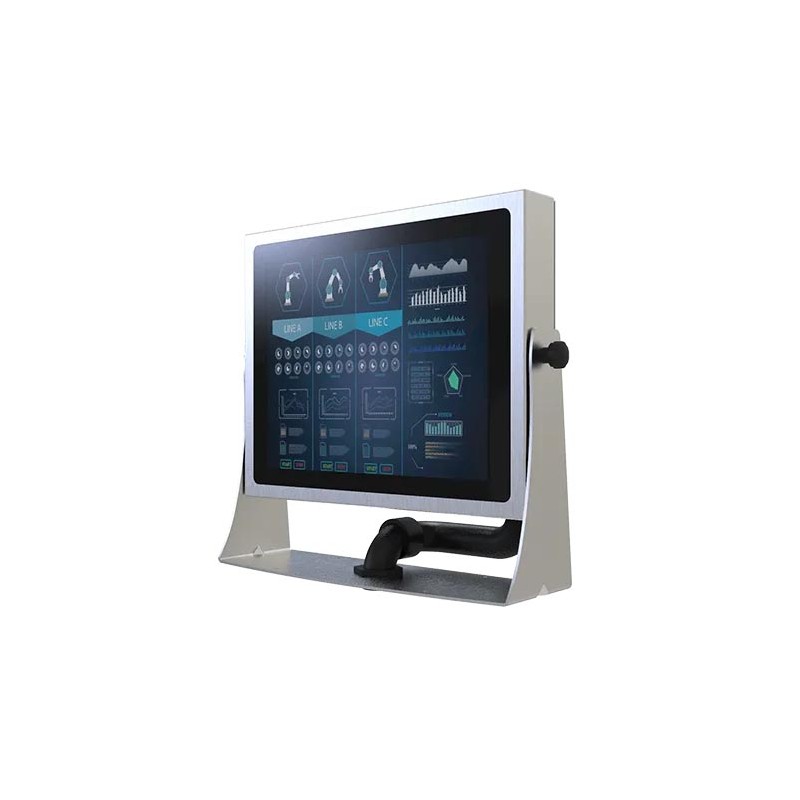

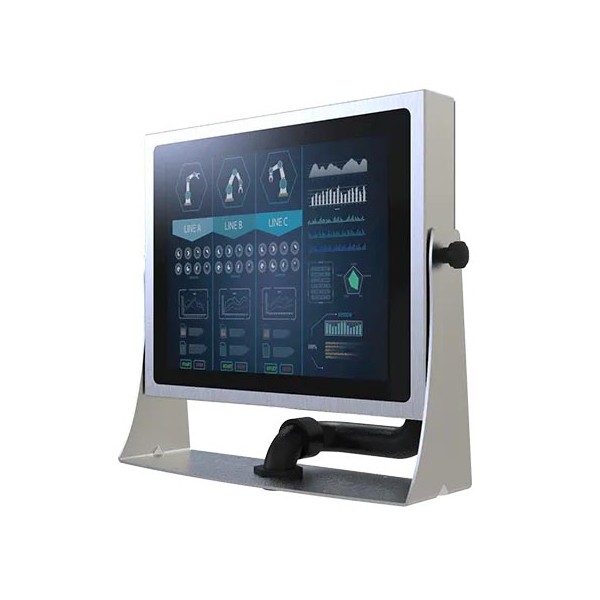

15" Waterproof IP69K Monitor
Perfectly suited for sensitive industrial environments.
This IP69K waterproof display is ideal for the food-processing industry and the most demanding conditions.
AISI 316 stainless-steel chassis with a flat design for easy cleaning.
The sealed conduit provides high protection for the cables.
Description
The MO1015IP69 is a 15" display designed for easy decontamination, ideal for use in demanding environments.
With its AISI316 stainless-steel chassis, it is perfectly suited for industrial sites requiring frequent high‑pressure cleaning. Its IP69K waterproof rating and reinforced cable conduit ensure a high level of protection.
As an option, the capacitive touchscreen offers precise and reliable operation for daily use.
Applications
HMI / Human-Machine Interface: Control of production lines, robots, and special-purpose machines
Food-processing, chemical, and pharmaceutical plants: Suitable for high‑pressure cleaning and detergent exposure. Optimized hygiene thanks to smooth, seamless edges
Outdoor applications: Optical bonding and the optional high‑brightness panel make it ready to withstand harsh weather and sea spray while maintaining excellent sunlight readability
Industrial automation
Technical Specifications
| Model | MO1015IP69 |
| Screen Size | 15 inches |
| Resolution | 1024 x 768 |
| Display Area | 304.10 x 228.10 mm |
| Panel Type | LCD (optional capacitive touch screen) |
| Optical Bonding | Optional |
| Brightness | 300nits - 1000nits optional |
| Contrast | 2000:1 |
| Viewing Angles | 88/88°/88°/88° |
| Connectivity | VGA - HDMI optional |
| Protection Rating | IP669K |
| Other Features | Fanless system |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10% to 90% Non-Condensing |
| Casing Material | 316 Stainless Steel |
| Dimensions | 378 x 301 x 56.2 mm |
| Mounting | Rear, VESA100 - YOKE |
| Power Supply | 12V DC 2A (optional 24VDC) |
| Certifications | CE, FCC |
| Display size | 17" |
| Resolution | 1024x768 |
| Material | SST 316 |
| Ingress Protection | IP69K |
| Touch screen | Optional |
| Video input | HDMI |
| Video input | VGA |
| Mounting | U Mount |
| Mounting | VESA Mount |
| Brightness | 1000nits Sunlight readable |
| Brightness | 300nits |
| Available options | Sunlight readable |
| Available options | Protection glass |
| Available options | Optical Bonding (outdoor use) |
| Available options | Touch Screen |
| Power Supply | 12VDC |
