15" industrial rugged monitor
New product
15" reinforced monitor for industrial use
Reinforced monitor construction designed to withstand demanding environments where hardware durability is essential.
Description

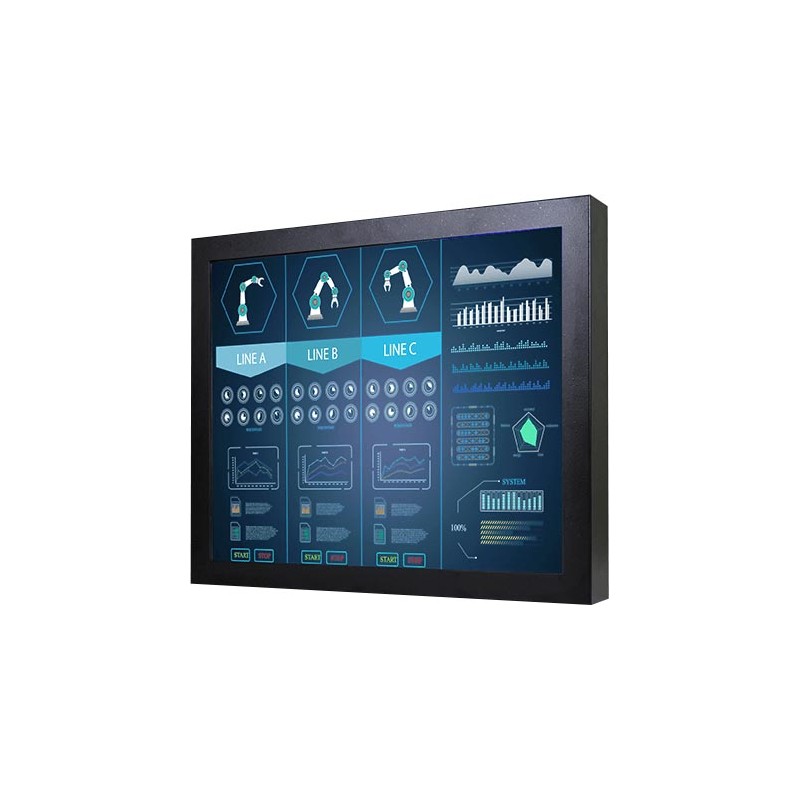

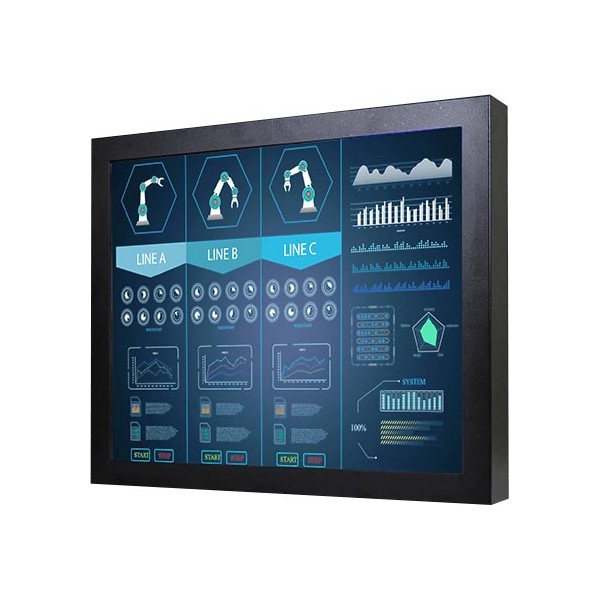

The MO1015 is a 15-inch industrial-grade monitor, specifically designed for demanding industrial environments, manufacturing sites, production lines, and processing operations.
Its rugged metal enclosure allows it to withstand shocks and harsh working conditions. This model offers an optional resistive touchscreen, ideal for easy use, even for users wearing gloves.
With a resolution of 1024x768, it ensures excellent visibility and high precision. It is equipped with multiple ports (USB touchscreen, VGA, HDMI, DVI), enabling easy integration into control systems. Additionally, it supports a wide temperature range from 0°C to 50°C, making it ideal for industrial, surveillance, or process management applications.
Advantages
- Low Power Consumption
Designed for minimal energy consumption, this monitor ensures efficient heat dissipation, making it durable for long-term use in production environments. It is one of the most energy-efficient solutions available. - Easy Installation
This industrial monitor offers universal mounting options, allowing for wall or desk installation, adapting to the specific needs of any industry. - Monitor with Metal Enclosure and Optional Touchscreen
Available with an optional resistive touchscreen, this metal enclosure monitor adjusts easily to both low and high-light environments. - Exceptional Reliability for Various Industrial Applications
ALLWAN industrial monitors guarantee superior image quality and unmatched durability, providing years of reliability in demanding work environments. - Outstanding Image Quality
With a modern design and ALLWAN's expertise in industrial solutions, this product offers not only excellent performance, reliability, and durability but also exceptional value for money. - Customization and Display Ports
ALLWAN offers a wide range of customization options, including screen sizes, LCD brightness, glass surface treatments, and various display ports to meet the specific needs of users.
Technical Specifications
| Feature | Specification |
|---|---|
| Screen Size | 15 inches |
| Screen/Glass | Optional resistive touchscreen, protective glass (optional), Touch SAW (optional) |
| Resolution | 1024x768 |
| Panel Brightness | 300.0 nits - SunLight Option 1000nits |
| Contrast Ratio | 2000:1 |
| Viewing Angles | 88°, 88°, 88°, 88° |
| Colors | 16.2 million colors |
| Active Area | 304.10x228.10 mm |
| Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certifications | CE, FCC |
| USB Port | 1 x USB for touchscreen |
| Video Ports | 1 x VGA, 1 x HDMI (optional), 1 x DVI (optional) |
| Audio | Audio input (3.5mm) (optional), 2 x Speakers (optional) |
| Dimensions | 369.6 x 289.6 x 47 mm |
| Mounting | VESA75 Mount |
| Enclosure | Metal |
| Cooling System | Fanless design |
| Power | 12V DC, 24V DC (optional) |
| Accessories | 1 x VGA cable, 1 x HDMI cable, 100-240V AC to DC adapter, power cable, manual, VESA screws (varies by product) |
