22" AISI 316 IP67 waterproof monitor
New product
22" Reinforced Stainless Steel Waterproof Display for Industrial and Outdoor Applications
Available input options: HDMI, VGA, DVI, or BNC for composite video.
This display is designed for environments requiring frequent and corrosive cleaning, exposure to shocks or vibrations, and is suitable for outdoor use.
Description

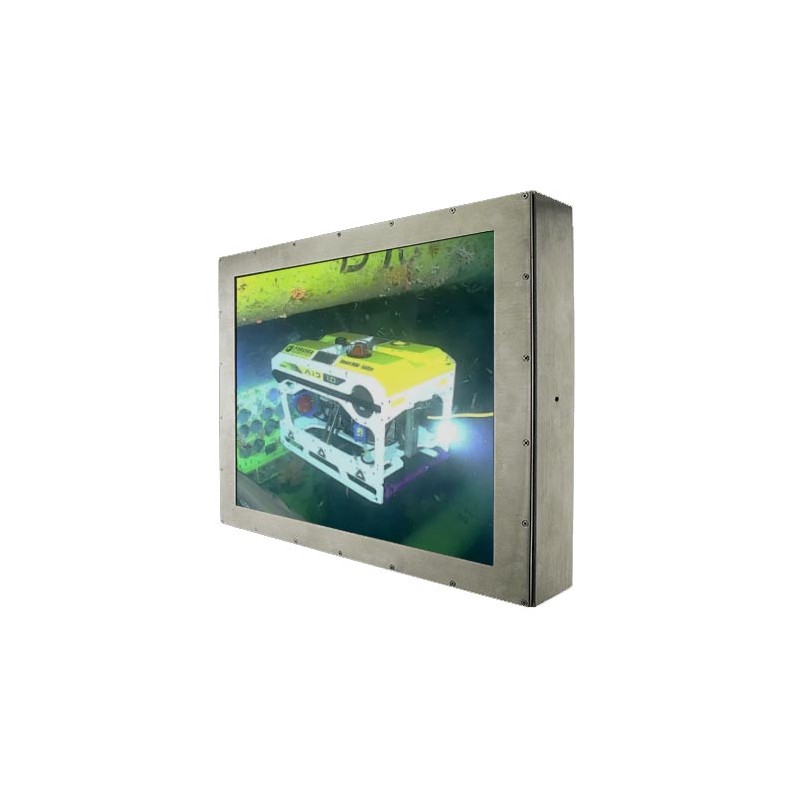

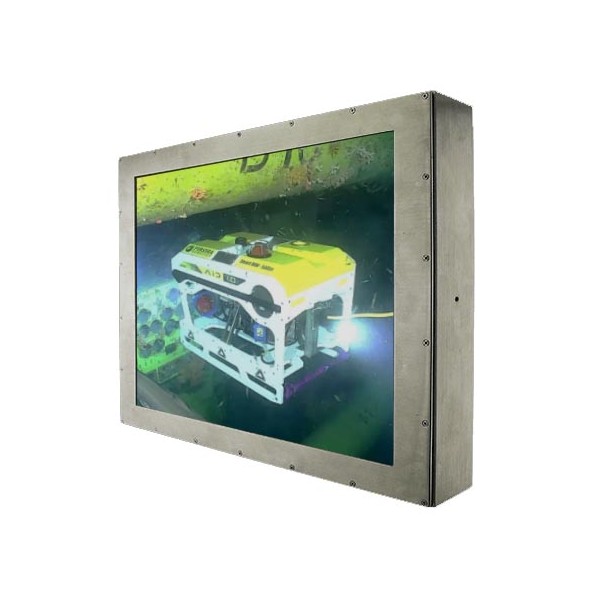

The MO1022IP is a 21.5-inch waterproof industrial stainless steel display designed for demanding environments where resistance to harsh conditions is essential.
Its stainless steel chassis AISI316 / SUS316 and IP67-rated protection on all sides ensure complete resistance against dust and water.
The MO1022IP from ALLWAN is the ideal solution for industries that require a reliable, durable display perfectly suited to extreme environments.
Key Features
- Display: 21.5-inch LCD panel with Full HD 1920 x 1080 resolution, providing sharp and precise visuals.
- Touchscreen Technology (Optional): Available with a 5-wire resistive touchscreen, designed for industrial environments and use with gloves.
- Optical Bonding (Optional): Enhances readability by reducing glare, increases screen durability, and strengthens resistance to shocks and vibrations.
- Full Protection: Certified IP67 on all sides, ensuring protection against dust and water.
- Rugged Construction: 316 stainless steel chassis for aggressive environments or chemical exposure.
- Industrial Connectivity: VGA and DVI-D inputs, compatible with a wide range of industrial systems.
- Flexible Mounting: VESA mounting threads on the back.
Applications
The MO1022IP is specifically designed for industrial environments requiring a reliable and robust display. Typical applications include:
- Human-Machine Interface (HMI) for industrial process control and monitoring.
- Food, pharmaceutical, and chemical industries, where stainless steel and IP-rated protection ensure optimal hygiene and durability.
- High-pressure washdown environments or strict waterproofing requirements, with IP67 option for enhanced protection.
- Maritime and offshore industries, requiring increased resistance to humidity, splashes, and saline environments.
- Outdoor applications, where optical bonding improves sunlight readability by reducing glare and increasing contrast.
- Automation and industrial production, where durability and reliability are critical.
Technical Specifications
| Specifications | Details |
|---|---|
| Model | MO1022IP |
| Screen Size | 21.5 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Panel Type | LCD (Optional 5-wire resistive touchscreen) |
| Optical Bonding | Optional |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 2000:1 |
| Viewing Angles | 88° (H) / 88° (V) |
| Connectivity | VGA, DVI-D, HDMI, Composite Video (configurable) |
| Protection Rating | IP67 on all sides |
| Operating Temperature | 0°C to 45°C (Optional -10°C to +50°C) |
| Chassis Material | AISI 316 SUS 316 stainless steel |
| Mounting Options | Rear panel mounting, VESA100 |
| Power Supply | 12V DC 2A (Optional 24VDC) |
| Display size | 22" |
| Resolution | 1920x1080 Full-HD |
| Material | SST 316 |
| Ingress Protection | IP67 |
| Touch screen | Optional |
| Video input | DVI |
| Video input | VGA |
| Video input | HDMI |
| Mounting | VESA Mount |
| Brightness | 1000nits Sunlight readable |
| Brightness | 250nits |
| Available options | Sunlight readable |
| Available options | Protection glass |
| Available options | Optical Bonding (outdoor use) |
| Available options | Touch Screen |
| Power Supply | 12VDC |
| Power Supply | 24VDC |
26 other products in the same category
ALLWAN MARINE CAMERAS
55" Monitor - 316 Stainless Steel - IP65...
55" 4K Monitor, Full IP65 Protection and Stainless Steel Casing Ideal for industrial use. Video/computer input signals can include HDMI, VGA, or DVI. This monitor is designed for environments requiring frequent cleaning, where corrosive conditions, risks of shocks or vibrations may occur, as well as high-humidity areas.
ALLWAN MARINE CAMERAS
32" AISI 316 100% waterproof IP65 display
42" screen protected IP65 (dust and water) on all sides, stainless steel enclosure For industrial and outdoor use. Video/computer input signals to be defined among HDMI, VGA, DVI. This monitor is designed for environments where regular cleaning is required, where corrosive conditions and potential shocks or vibrations may occur, and it is also...
ALLWAN SECURITY
32" Wide panel mount monitor- Touch optional
• 32" panel : 698,40 x 392,85 mm • Default VGA / HDMI – Optional DVI • 1920 x 1080 resolution • 400 nits brightness • Optional resistive touch panelRequest a quote
ALLWAN MARINE CAMERAS
32" AISI 316 IP67 waterproof monitor
32" Display 100% Waterproof IP65 on All Sides, Stainless Steel Chassis For Industrial and Outdoor Applications Video/computer input signals to be defined among HDMI, VGA, DVI, or BNC for composite video. This monitor is designed for environments where frequent cleaning, corrosive conditions, and/or the possibility of shocks or vibrations occur, and is...
ALLWAN SECURITY
24" Wide panel mount monitor- Touch optional
• 24" panel : 527 x 296.50 mm • Default VGA / HDMI – Optional DVI • 1920 x 1080 resolution • 250 nits brightness • Optional resistive touch panelRequest a quote
ALLWAN SECURITY
DISPLAY - 22" RUGGED INDUSTRIAL
Display Unit - 22" Reinforced Industrial Screen for Professional Applications
ALLWAN SECURITY
22" Wide panel mount display - Optional touch...
• 21.5" panel or 476.60 x 268.10 mm • Default VGA / HDMI – Optional DVI • 1920 x 1080 resolution • 1000 nits brightness • Optional resistive touch panelRequest a quote
ALLWAN SECURITY
19" Display rugged for industry and plants
19" rugged monitor shockproof vibration-resistant
ALLWAN SECURITY
Panel mount 19" monitor - Optional touch screen
• 19" panel: active area 376.3 x 301 mm • Standard VGA / HDMI input – DVI option • 1280 x 1024 resolution • 1000 nits brightness • Optional resistive touch panelRequest a quote
ALLWAN MARINE CAMERAS
19 "waterproof full IP67 stainless steel monitor
19" Reinforced Stainless Steel Monitor, Designed to Withstand Industrial and Outdoor Environments HDMI, VGA, DVI, or BNC Input for Composite Video. Ideal for environments that require frequent cleaning, exposure to corrosive conditions, as well as shocks or vibrations, this model is perfectly suited for outdoor use and industrial areas.
ALLWAN SECURITY
17" Protected Industrial Display
17" 4:3 Professional Reinforced Shockproof and Vibration-Proof Display
ALLWAN SECURITY
Panel mount 17" monitor - Optional touch screen
• 17" panel or 337.9 x 270.34mm • Standard VGA / HDMI input – DVI option • 1280 x 1024 resolution • 1000 nits brightness • Optional resistive touch panelRequest a quote
ALLWAN SECURITY

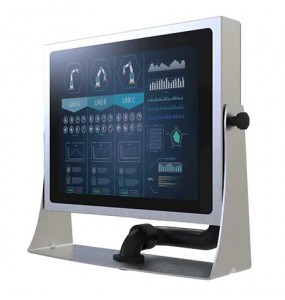

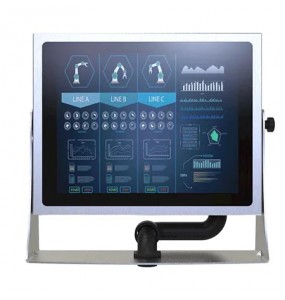

15" Display unit Stainless steel - IP69K
