19 "waterproof full IP67 stainless steel monitor
New product
19" Reinforced Stainless Steel Monitor, Designed to Withstand Industrial and Outdoor Environments
HDMI, VGA, DVI, or BNC Input for Composite Video.
Ideal for environments that require frequent cleaning, exposure to corrosive conditions, as well as shocks or vibrations, this model is perfectly suited for outdoor use and industrial areas.
Description

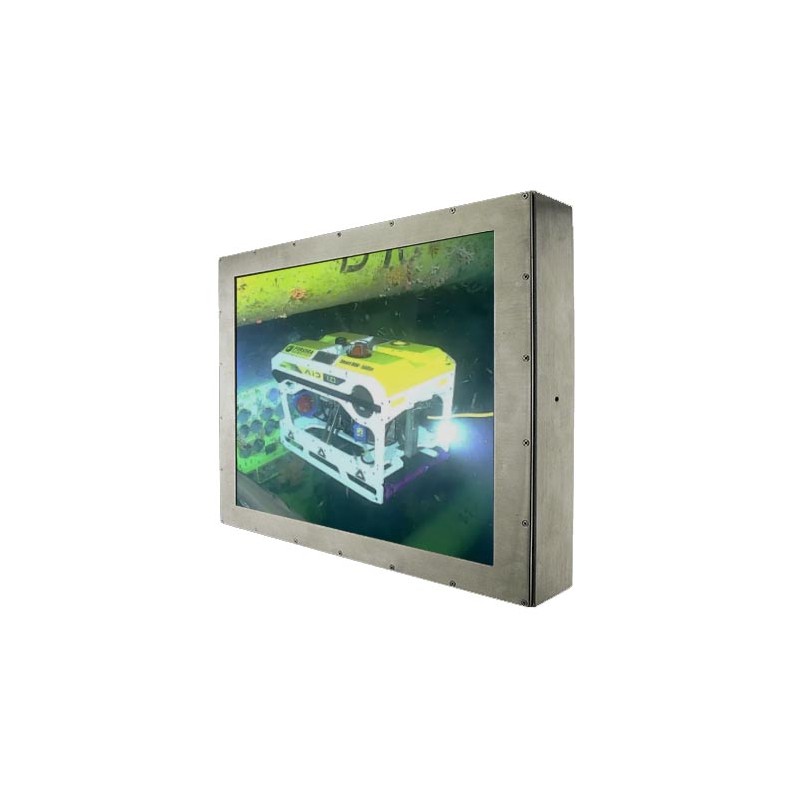

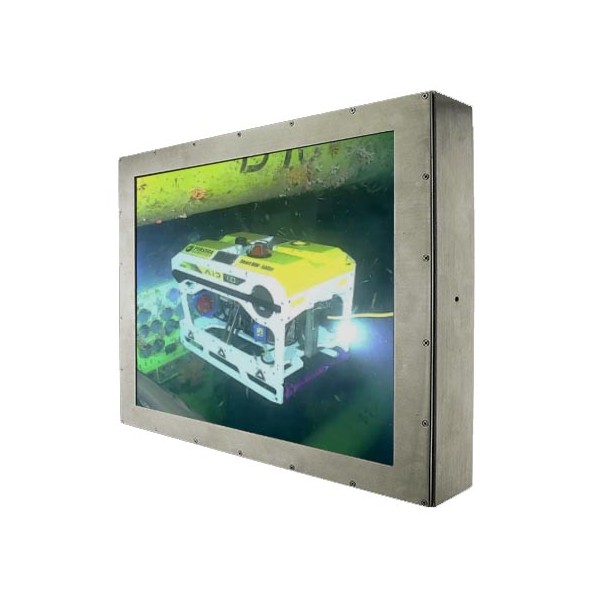

The MO1019IP 19-inch industrial screen is designed for demanding industrial environments where resistance to harsh conditions is essential. With its stainless steel chassis (INOX 304, with an optional INOX 316) and IP67 protection rating, it offers complete protection against dust and water projections.
This robust model is equipped with advanced features such as optical bonding and IP67 sealing, providing a reliable and durable solution for industries requiring high-performance displays suited for the most challenging environments.
Main Features
- Screen: 19-inch LCD panel with a resolution of 1280 x 1024, ensuring a clear and precise image.
- Touch Technology (optional): 5-wire resistive touchscreen, ideal for use in industrial environments, even with gloves.
- Optical Bonding (optional): This technology reduces reflections, improves visibility, and enhances screen durability, especially useful in cases of vibrations or shocks.
- Full Protection: IP67 certification, ensuring protection against dust and water projections.
- Robust Construction: 316 stainless steel housing for environments particularly exposed to corrosive substances or chemicals, including seawater.
- Industrial Connectivity: VGA and DVI-D inputs, compatible with a wide variety of industrial systems.
- Flexible Mounting: Possibility of flush mounting for easy integration into control panels or industrial displays.
Applications
The MO1019IP is particularly suited for industrial environments where reliability and durability are crucial. It is used in the following sectors:
- Human-Machine Interface (HMI) for control and monitoring of industrial processes.
- Agri-food, pharmaceutical, and chemical industries, where the stainless steel construction and IP protection ensure hygiene and durability.
- Environments requiring waterproof protection, particularly with IP67.
- Maritime and offshore industries, demanding increased resistance to humidity, splashes, and saline environments.
- Outdoor applications, where optical bonding improves visibility in direct sunlight by reducing reflections and increasing contrast.
- Industrial automation, where robustness and reliability are critical.
Technical Specifications
| Model | MO1019IP |
|---|---|
| Screen Size | 19 inches |
| Resolution | 1280 x 1024 |
| Display Area | 376.32 x 301.06 mm |
| Panel Type | LCD (optional 5-wire resistive touch) |
| Optical Bonding | Optional |
| Brightness | 1000 cd/m² |
| Contrast | 1000:1 |
| Viewing Angles | 85/80°/80°/80° |
| Connectivity | VGA, DVI-D, HDMI, composite video (to be defined) |
| Waterproof Connector | Waterproof with cable provided, standard length = 2m |
| Protection Rating | IP65 (IP67 optional) |
| Other Features | Fanless system |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10% to 90% Non-Condensing |
| Chassis Material | Stainless Steel INOX 316 |
| Dimensions | 457.4 x 369.5 x 62.7 mm |
| Mounting | Rear, VESA100 |
| Power Supply | 12V DC 2A (optional 24VDC) |
| Certifications | CE, FCC |
