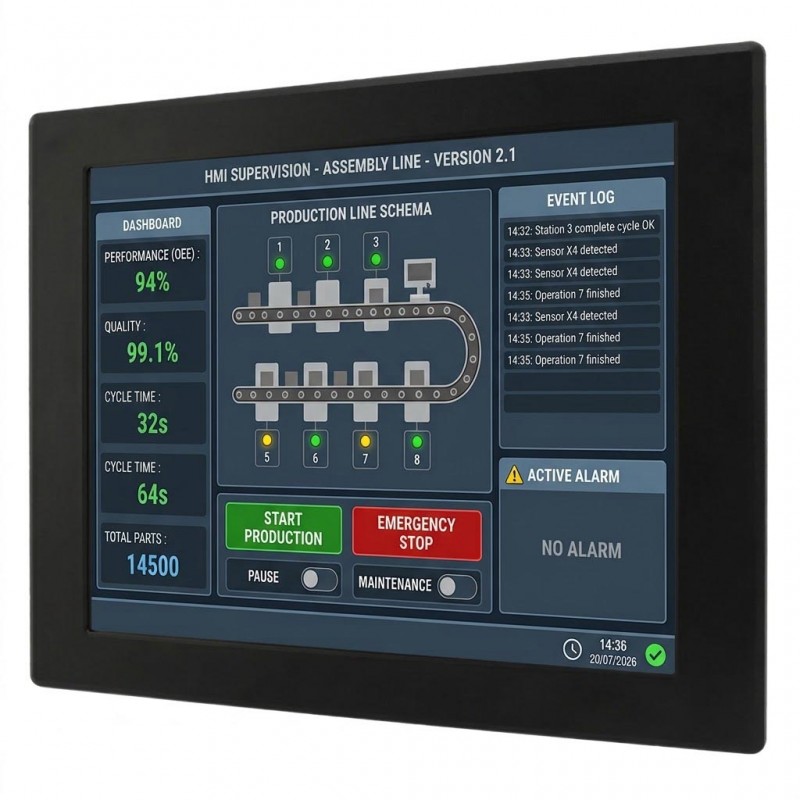

Panel mount 19" monitor - Optional touch screen
New product
- • 19" panel: active area 376.3 x 301 mm
- • Standard VGA / HDMI input – DVI option
- • 1280 x 1024 resolution
- • 1000 nits brightness
- • Optional resistive touch panel
Embedded display with IP65 waterproof front face and 1000 nits sunlight-readable backlight.
TECHNICAL SPECIFICATIONS
| DISPLAY | |
Resolution | 1280 x 1024 |
Size | 19’’ |
Colors | 16.2 Million colors |
Active area | 376.3 x 301 mm |
Brightness | 1000 nits |
Contrast | 1000:1 |
Viewing angles | 85, 85, 80, 80° |
Options: Touch / Protection | Optional touch: Resistive Optional protection: Glass pane (no touch available) |
| PORTS | |
Video inputs | VGA / HDMI — DVI optional |
Option: Audio | Optional 3.5mm jack line-in with 2 integrated speakers |
| ELECTRICAL / MECHANICAL | |
Dimensions | 474 x 384 x 59 mm |
Sealing | IP65 Front panel |
Materials | Steel chassis — Aluminum frame |
Panel cutout | 446 x 356 mm |
Mounting | Panel mount or rear VESA 75 |
Power supply | 12VDC 2A — 24VDC OPTION |
Weight | 6.5 kg |
Certifications | CE, FCC |
| ENVIRONMENT | |
Operating temperature | 0 to +50°C — Available in wide temperature range -20 to +60°C: MO-1019AL-WT |
Storage temperature | -10 to +60°C |
Humidity | 10% to 90% humidity — Non-condensing |
| Display size | 19" |
| Resolution | 1280x1024 |
| Material | Aluminum |
| Material | Steel |
| Ingress Protection | IP65 (Front side) |
| Ingress Protection | IP65 |
| Touch screen | Optional |
| Video input | VGA |
| Video input | HDMI |
| Video input | DVI |
| Mounting | Panel Mount |
| Mounting | VESA Mount |
| Brightness | 1000nits Sunlight readable |
| Available options | Protection glass |
| Available options | Touch Screen |
| Power Supply | 24VDC |
| Power Supply | 12VDC |
