10" Panel Mount Monitor - Optional Touch display
New product
Panel mount and 10" size
- • Active area 10.4” (210.4 x 157.8 mm)
- • IP65 waterproof front panel
- • Standard VGA / HDMI input – Optional DVI
- • 1024 x 768 resolution
- • 1000 nits brightness
- • Optional resistive touchscreen

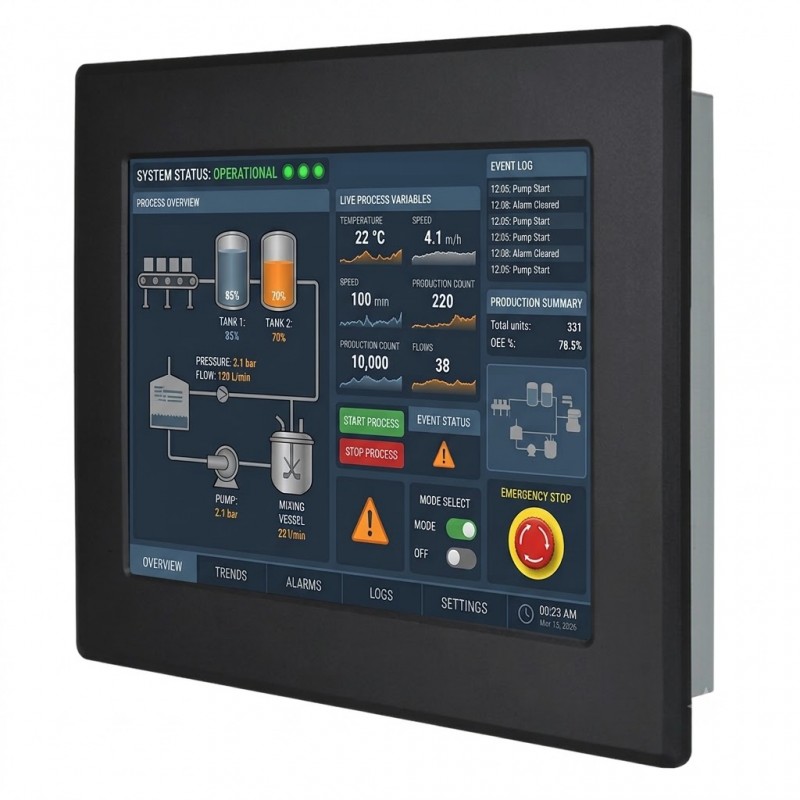

10" Panel Mount HMI Monitor MO-1010AL
Ruggedized Display for Integrators — IP65 Front Panel
TECHNICAL SPECIFICATIONS
| DISPLAY | |
Resolution | 1024 x 768 |
Size | 10.4’’ |
Colors | 16.2 Million colors |
Active Area | 210.4 x 157.8 mm |
Brightness | 1000 nits |
Contrast Ratio | 1000 :1 |
Viewing Angles | 88, 88, 88, 88° |
Options: Touch / Protection | Optional Touch: Resistive Optional Protection: Glass panel (touchscreen not available) |
| PORTS | |
Video Inputs | VGA / HDMI — DVI optional |
Option: Audio | Optional 3.5mm jack line input with 2 built-in speakers |
| ELECTRICAL / MECHANICAL | |
Dimensions | 284 x 234 x 43 mm |
Ingress Protection | IP65 Front Panel |
Materials | Steel chassis — Aluminum frame |
Panel Cutout | 264 x 216 mm |
Mounting | Panel Mount or Rear VESA 75 |
Power Supply | 12VDC 2A — OPTION 24VDC |
Weight | 1.5 kg |
Certifications | CE, FCC |
| ENVIRONMENT | |
Operating Temperature | 0 to +50°C - Available in wide temperature range -20 to +60°C : MO1010AL-WT |
Storage Temperature | -10 to +60°C |
Humidity | 10% to 90% humidity — Non-condensing |
| Display size | 10" |
| Resolution | 1024x768 |
| Material | Aluminum |
| Material | Steel |
| Ingress Protection | IP65 (Front side) |
| Touch screen | Optional |
| Video input | DVI |
| Video input | VGA |
| Video input | HDMI |
| Mounting | Panel Mount |
| Mounting | VESA Mount |
| Brightness | 1000nits Sunlight readable |
| Available options | Protection glass |
| Available options | Touch Screen |
| Power Supply | 12VDC |
| Power Supply | 24VDC |
