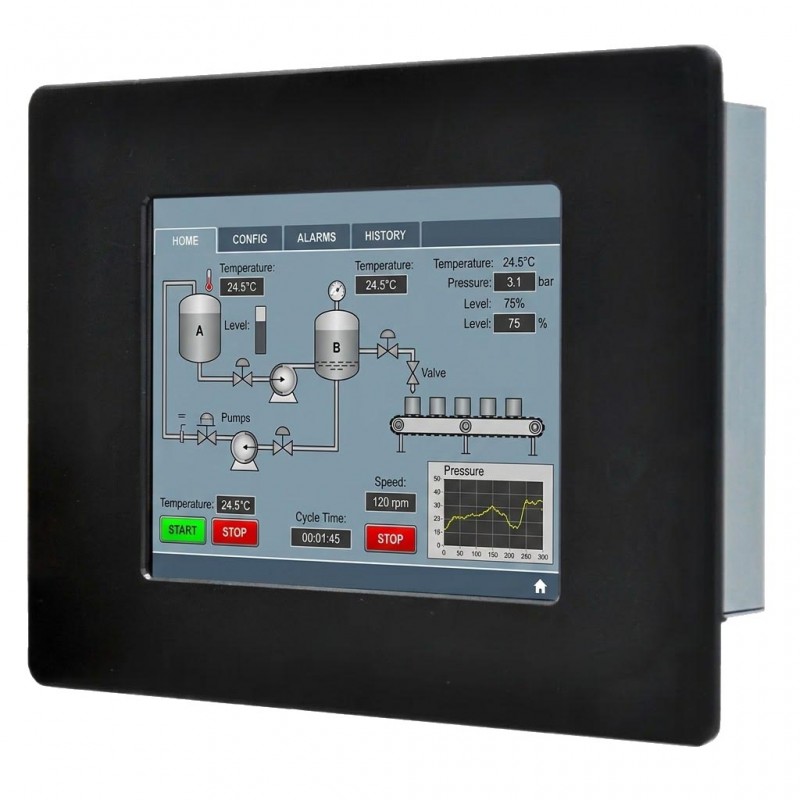

8" Panel Mount Monitor - Optional Resistive Touchscreen
New product
Panel Integration & 8" Size
- • 8.4’’ Active Area (170.4 x 127.8mm)
- • IP65 Waterproof Front Bezel
- • Standard VGA / HDMI input – DVI optional
- • 800 x 600 Resolution
- • 1000 nits Brightness
- • Optional Resistive Touchscreen
8" Panel Mount Display MO-1008AL
Ruggedized Display for Integration — IP65 Waterproof Front Bezel
TECHNICAL SPECIFICATIONS
| DISPLAY | |
Resolution | 800 x 600 |
Size | 8.4’’ |
Colors | 16.2 Million colors |
Active Area | 170.4 x 127.8 mm |
Brightness | 1000 nits |
Contrast Ratio | 600:1 |
Viewing Angles | 80, 80, 60, 80° |
Options: Touch / Protection | Optional Touch: Resistive Optional Protection: Glass panel (touchscreen not available with glass) |
| PORTS | |
Video Inputs | VGA / HDMI — DVI optional |
Option: Audio | Optional 3.5mm jack line input with 2 built-in speakers |
| ELECTRICAL / MECHANICAL | |
Dimensions | 275 x 216 x 56 mm |
Ingress Protection | IP65 Front Panel |
Materials | Steel chassis — Aluminum frame |
Panel Cutout | 237 x 177 mm |
Mounting | Panel Mount or Rear VESA 75 |
Power Supply | 12VDC 2A |
Weight | 1.5 kg |
Certifications | CE, FCC |
| ENVIRONMENT | |
Operating Temperature | 0 to +50°C — Available in wide temperature range -20 to +60°C: MO-1008AL-WT |
Storage Temperature | -10 to +60°C |
Humidity | 10% to 90% humidity — Non-condensing |
| Display size | 8" |
| Resolution | 800x600 |
| Material | Aluminum |
| Material | Steel |
| Ingress Protection | IP65 (Front side) |
| Touch screen | Optional |
| Video input | DVI |
| Video input | VGA |
| Video input | HDMI |
| Mounting | Panel Mount |
| Mounting | VESA Mount |
| Brightness | 1000nits Sunlight readable |
| Available options | Protection glass |
| Available options | Touch Screen |
| Power Supply | 12VDC |
