6.5" Compact Panel Mount Monitor - Optional Resistive Touchscreen
New product
Panel Integration - 6.5" Compact Footprint
- • 6.5’’ Active Area (132.5 x 99.4mm)
- • IP65 Waterproof Front Bezel
- • Standard VGA / HDMI input – DVI optional
- • 640 x 480 Resolution
- • 700 nits Brightness
- • Optional Resistive Touchscreen

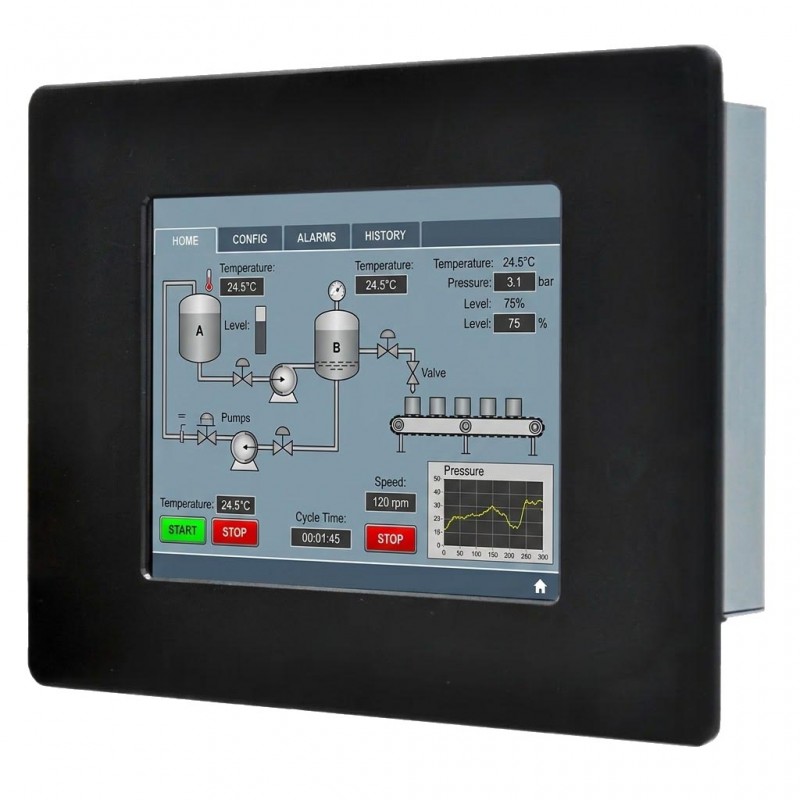

6.5" PANEL MOUNT MONITOR MO-1006AL
Rugged compact display — IP65 Front Panel Protection
TECHNICAL SPECIFICATIONS
| DISPLAY | |
Resolution | 640 x 480 |
Size | 6.5’’ |
Colors | 16.2 Million colors |
Active Area | 132.48 x 99.36 mm |
Brightness | 700 nits |
Contrast Ratio | 600:1 |
Viewing Angles | 80, 80, 70, 70° |
Options: Touchscreen / Protection | Optional touchscreen: Resistive Optional protection: Protective glass (touchscreen unavailable with glass option) |
| PORTS | |
Video Inputs | VGA / HDMI — Optional DVI |
Option: Audio | Optional 3.5mm line-in jack with 2 built-in speakers |
| ELECTRICAL / MECHANICAL | |
Dimensions | 218 x 164 x 50mm |
Ingress Protection | IP65 Front panel |
Materials | Steel chassis — Aluminum frame |
Cutout Dimensions | 191 x 143 mm |
Mounting | Panel mount or rear VESA 75 |
Power Supply | 12VDC 2A |
Weight | 1.2 kg |
Certifications | CE, FCC |
| ENVIRONMENT | |
Operating Temperature | 0 to +50°C |
Storage Temperature | -10 to +60°C |
Humidity | 10% to 90% relative humidity — Non-condensing |
| Display size | 6,5" |
| Resolution | 640x480 |
| Material | Steel |
| Material | Aluminum |
| Ingress Protection | IP65 (Front side) |
| Touch screen | Optional |
| Video input | VGA |
| Video input | HDMI |
| Video input | DVI |
| Mounting | VESA Mount |
| Mounting | Panel Mount |
| Brightness | 700nits |
| Available options | Protection glass |
| Available options | Touch Screen |
| Power Supply | 12VDC |
