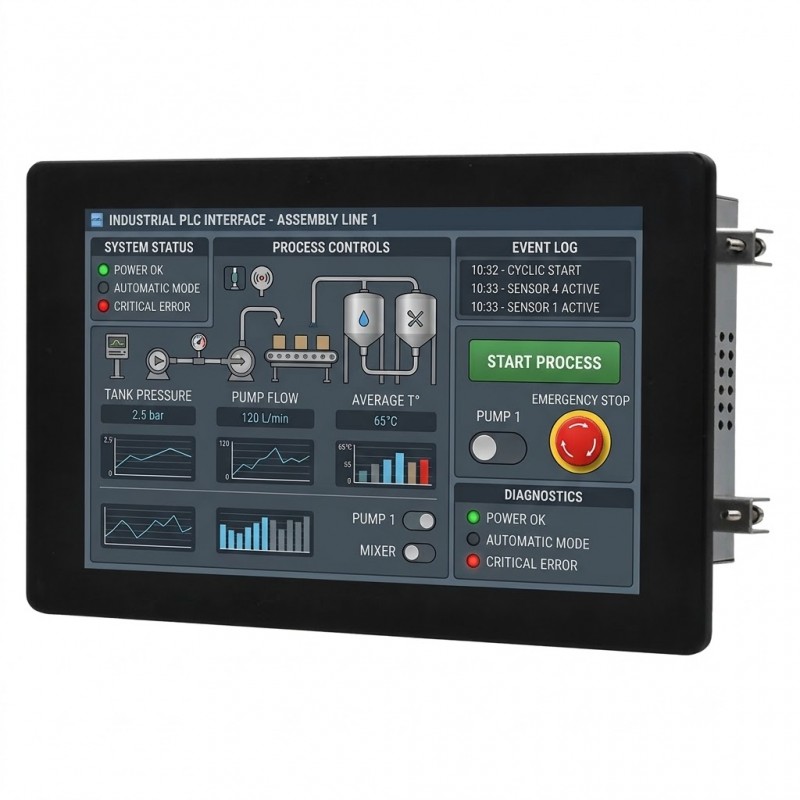

10" Wide Panel Mount Monitor - Touch Optional
New product
10" Wide Format Panel Mount
- • Active area 10.1" (217 x 135.6 mm)
- • Standard VGA / HDMI input – Optional DVI
- • 1200 x 800 resolution
- • 350 nits brightness
- • Optional resistive touchscreen
10" panel mount wide monitor
Rugged display for integrators — IP65 front panel - Wide format to fit current graphics cards
TECHNICAL SPECIFICATIONS
| DISPLAY | |
Resolution | 1200 x 800 |
Size | 10.1’’ |
Colors | 16.7 Million colors |
Active area | 216.96 x 135.6 mm |
Brightness | 350 nits |
Contrast | 800 :1 |
Viewing angles | 85, 85, 85, 85° |
Options: Touch / Protection | Optional touch: Resistive Optional protection: Glass window (no touch available) |
| PORTS | |
Video inputs | VGA / HDMI — Optional DVI |
Option: Audio | Optional 3.5mm jack line-in with 2 built-in speakers |
| ELECTRICAL / MECHANICAL | |
Dimensions | 286 x 182 x 38 mm |
Sealing | IP65 Front panel |
Materials | Steel chassis — Aluminum frame |
Panel cutout | 239 x 170 mm |
Mounting | Panel or rear VESA 75 |
Power supply | 12VDC 2A — 24VDC OPTION |
Weight | 1.25 kg |
Certifications | CE, FCC |
| ENVIRONMENT | |
Operating temperature | 0 to +50°C |
Storage temperature | -10 to +60°C |
Humidity | 10% to 90% humidity — Non-condensing |
| Display size | 10" |
| Display size | 10" WIDE |
| Resolution | 1200x800 |
| Material | Steel |
| Material | Aluminum |
| Touch screen | Optional |
| Video input | VGA |
| Video input | HDMI |
| Video input | DVI |
| Mounting | VESA Mount |
| Mounting | Panel Mount |
| Brightness | 350nits |
| Available options | Touch Screen |
| Available options | Protection glass |
| Power Supply | 24VDC |
| Power Supply | 12VDC |
