5" Industrial Compact Panel Mount Monitor - Optional Touch screen
New product
Panel Mount Integration - 5.6" for Industry
- • Active Area 5.7'' (115.2 x 86.4 mm)
- • Reinforced steel chassis
- • Standard VGA / HDMI Input – Optional DVI
- • 640 x 480 Resolution
- • 900 nits Brightness
- • Optional resistive touchscreen

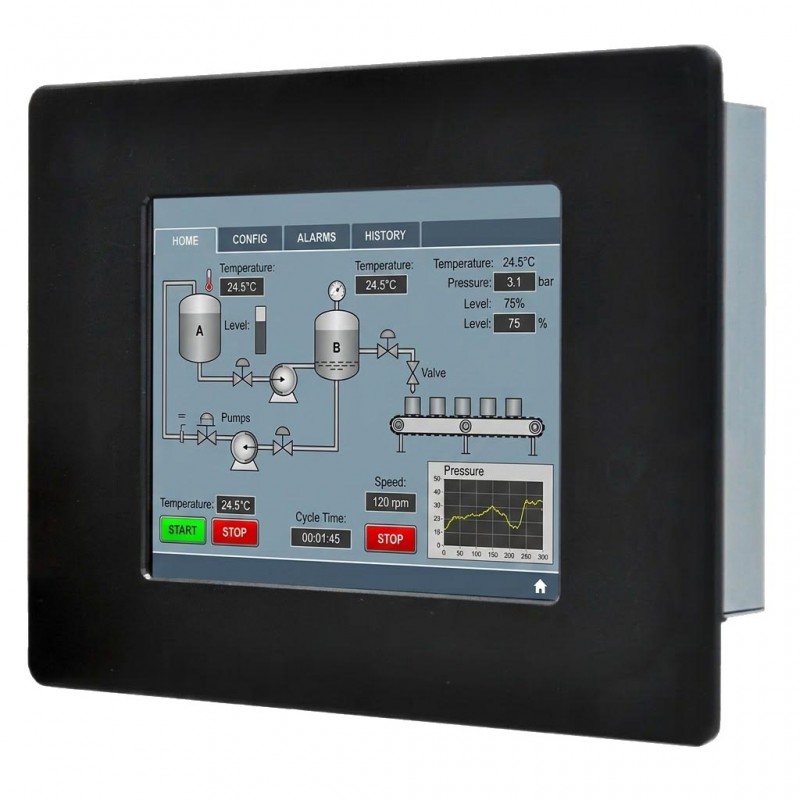

MO-1005AL 5.7" PANEL MOUNT MONITOR
Compact & Ultra-Rugged Industrial Display — IP65 Front Panel Protection
TECHNICAL SPECIFICATIONS
| DISPLAY | |
Resolution | 640 x 480 |
Size | 5.7'' |
Colors | 262,000 colors |
Active Area | 115.2 x 86.4 mm |
Luminance | 900 nits |
Contrast Ratio | 300:1 |
Viewing Angles | 70, 70, 40, 60° |
Options: Touch / Protection | Optional Touchscreen: Resistive Optional Protection: Glass window (touchscreen not available with this option) |
| PORTS | |
Video Inputs | VGA / HDMI — Optional DVI |
Option: Audio | Optional 3.5mm jack line-in with 2 integrated speakers |
| ELECTRICAL / MECHANICAL | |
Dimensions | 198 x 162 x 41mm |
Ingress Protection | IP65 Front Panel |
Materials | Steel chassis — Aluminum bezel |
Cutout Dimensions | 170 x 138 mm |
Mounting | Panel Mount or rear VESA 100 |
Power Supply | 12VDC 2A |
Certifications | CE, FCC |
| ENVIRONMENT | |
Operating Temperature | 0 to +50°C |
Storage Temperature | -10 to +60°C |
Humidity | 10% to 90% humidity — Non-condensing |
| Display size | 5,6" |
| Resolution | 640x480 |
| Material | Aluminum |
| Material | Steel |
| Ingress Protection | IP65 (Front side) |
| Touch screen | Optional |
| Video input | DVI |
| Video input | VGA |
| Video input | HDMI |
| Mounting | Panel Mount |
| Mounting | VESA Mount |
| Brightness | 900nits sunlight readable |
| Available options | Protection glass |
| Available options | Touch Screen |
| Power Supply | 12VDC |
