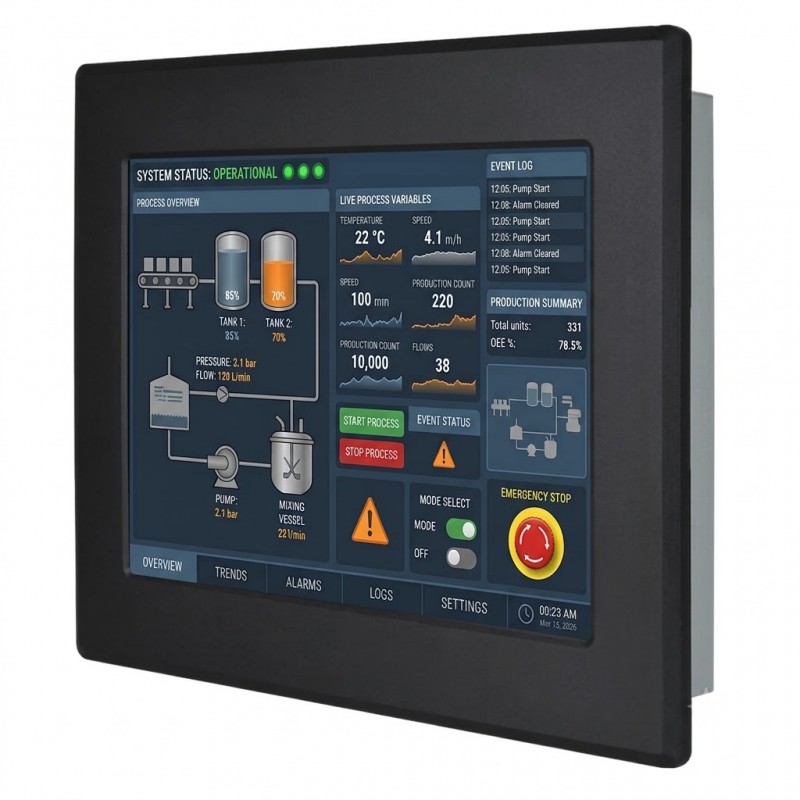

Panel mount 12" monitor - Optional touch display
New product
- • 12.1" panel i.e., 261.1 x 163.2mm
- • Standard VGA / HDMI input – Optional DVI
- • 1024 x 768 resolution
- • 1000 nits brightness
- • Optional resistive touch screen
Display for integrators with IP65 front panel and ultra-bright 1000 nits.
TECHNICAL SPECIFICATIONS
| DISPLAY | |
Resolution | 1024 x 768 |
Size | 12.1’’ |
Colors | 16.2 Million colors |
Active area | 261.12 x 163.2 mm |
Brightness | 1000 nits |
Contrast | 700 :1 |
Viewing angles | 88, 88, 70, 70° |
Options: Touch / Protection | Optional touch: Resistive Optional protection: Glass pane (touch not available) |
| PORTS | |
Video inputs | VGA / HDMI — Optional DVI |
Option: Audio | Optional 3.5mm jack line-in with 2 integrated speakers |
| ELECTRICAL / MECHANICAL | |
Dimensions | 324 x 274 x 43 mm |
Sealing | IP65 Front panel |
Materials | Steel chassis — Aluminum frame |
Panel cutout | 302.5 x 242 mm |
Mounting | Panel or rear VESA 75 mount |
Power supply | 12VDC 2A — OPTION 24VDC |
Weight | 2.3 kg |
Certifications | CE, FCC |
| ENVIRONMENT | |
Operating temperature | 0 to +50°C — Available in wide temperature range -20 to +60°C: MO-1012AL-WT |
Storage temperature | -10 to +60°C |
Humidity | 10% to 90% humidity — Non-condensing |
| Display size | 12" |
| Resolution | 1024x768 |
| Material | Aluminum |
| Material | Steel |
| Ingress Protection | IP65 (Front side) |
| Ingress Protection | IP65 |
| Touch screen | Optional |
| Video input | VGA |
| Video input | HDMI |
| Video input | DVI |
| Mounting | Panel Mount |
| Mounting | VESA Mount |
| Brightness | 1000nits Sunlight readable |
| Available options | Protection glass |
| Available options | Touch Screen |
| Power Supply | 24VDC |
| Power Supply | 12VDC |
