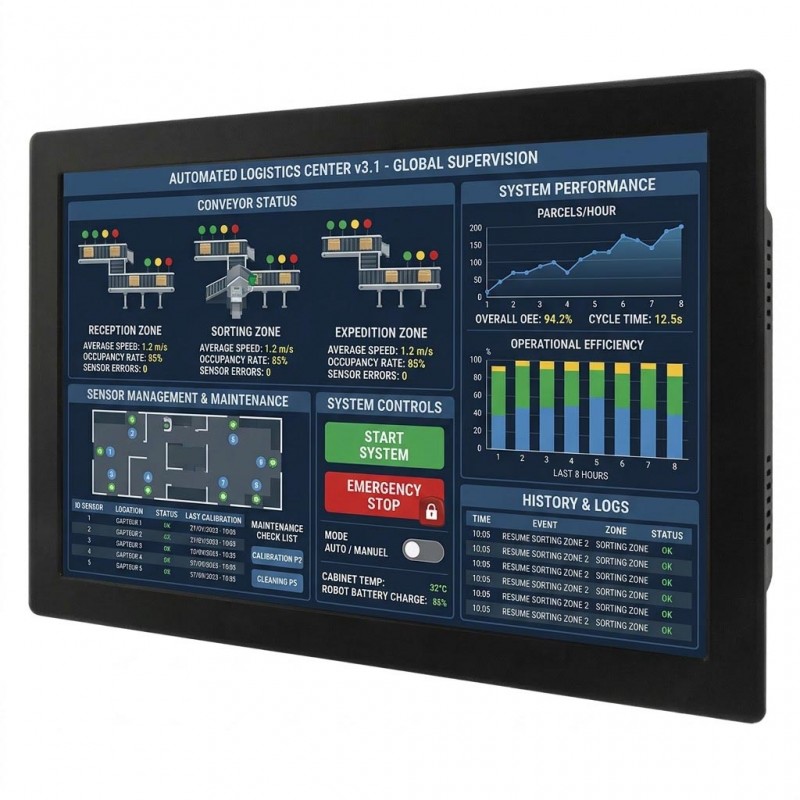

24" Wide panel mount monitor- Touch optional
New product
- • 24" panel : 527 x 296.50 mm
- • Default VGA / HDMI – Optional DVI
- • 1920 x 1080 resolution
- • 250 nits brightness
- • Optional resistive touch panel
The MO-1024AL embedded monitor is IP65 waterproof once flush-mounted, offering protection against water jets.
TECHNICAL SPECIFICATIONS
| DISPLAY | |
Resolution | 1920 x 1080 |
Size | 24’’ |
Colors | 16.7 Million colors |
Active area | 527 x 296.50 mm |
Brightness | 250 nits |
Contrast | 3000:1 |
Viewing angles | 89, 89, 89, 89° |
Options: Touch / Protection | Optional touch: Resistive Optional protection: Glass pane (no touch available) |
| PORTS | |
Video inputs | VGA / HDMI — DVI optional |
Option: Audio | Optional 3.5mm jack line-in with 2 integrated speakers |
| ELECTRICAL / MECHANICAL | |
Dimensions | 606 x 376 x 65 mm |
Sealing | IP65 Front panel |
Materials | Steel chassis — Aluminum frame |
Panel cutout | 560 x 330 mm |
Mounting | Panel mount or rear VESA 75/100 |
Power supply | 12VDC 5A — 24VDC OPTION |
Weight | 8.5 kg |
Certifications | CE, FCC |
| ENVIRONMENT | |
Operating temperature | 0 to +50°C — Available in wide temperature range -20 to +60°C: MO-1024AL-WT |
Storage temperature | -10 to +60°C |
Humidity | 10% to 90% humidity — Non-condensing |
| Display size | 24" |
| Resolution | 1920x1080 Full-HD |
| Material | Aluminum |
| Material | Steel |
| Ingress Protection | IP65 (Front side) |
| Ingress Protection | IP65 |
| Touch screen | Optional |
| Video input | VGA |
| Video input | HDMI |
| Video input | DVI |
| Mounting | Panel Mount |
| Mounting | VESA Mount |
| Brightness | 250nits |
| Available options | Protection glass |
| Available options | Touch Screen |
| Power Supply | 24VDC |
| Power Supply | 12VDC |
