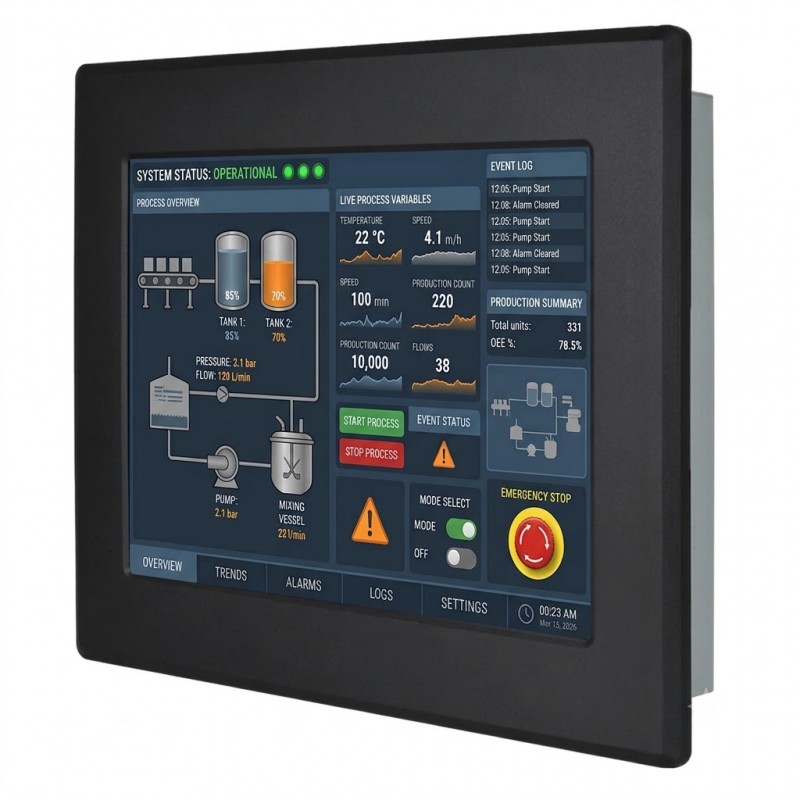

Panel mount 15" monitor - Optional touch display
New product
- • 15" panel, (304.1 x 228.1 mm)
- • Standard VGA / HDMI input – Optional DVI
- • 1024 x 768 resolution
- • 1000 nits brightness
- • Optional resistive touch screen
Chassis / panel mount display with IP65 protected front and powerful 1000 nits backlight.
TECHNICAL SPECIFICATIONS
| DISPLAY | |
Resolution | 1024 x 768 |
Size | 15’’ |
Colors | 16.2 Million colors |
Active area | 304.1 x 228.1 mm |
Brightness | 1000 nits |
Contrast | 2000 :1 |
Viewing angles | 88, 88, 88, 88° |
Options: Touch / Protection | Optional touch: Resistive Optional protection: Glass pane (touch not available) |
| PORTS | |
Video inputs | VGA / HDMI — Optional DVI |
Option: Audio | Optional 3.5mm jack line-in with 2 integrated speakers |
| ELECTRICAL / MECHANICAL | |
Dimensions | 400 x 320 x 49.8 mm |
Sealing | IP65 Front bezel |
Materials | Steel chassis — Aluminum frame |
Panel cutout | 360 x 280 mm |
Mounting | Panel or rear VESA 75 |
Power supply | 12VDC 2A — 24VDC OPTION |
Weight | 4Kg |
Certifications | CE, FCC |
| ENVIRONMENT | |
Operating temperature | 0 to +50°C — Available in wide temperature range -20 to +60°C: MO-1015AL-WT |
Storage temperature | -10 to +60°C |
Humidity | 10% to 90% humidity — Non-condensing |
| Display size | 15" |
| Resolution | 1024x768 |
| Material | Steel |
| Material | Aluminum |
| Ingress Protection | IP65 |
| Ingress Protection | IP65 (Front side) |
| Touch screen | Optional |
| Video input | DVI |
| Video input | VGA |
| Video input | HDMI |
| Mounting | VESA Mount |
| Mounting | Panel Mount |
| Brightness | 1000nits Sunlight readable |
| Available options | Touch Screen |
| Available options | Protection glass |
| Power Supply | 12VDC |
| Power Supply | 24VDC |
26 other products in the same category
ALLWAN MARINE CAMERAS
55" Monitor - 316 Stainless Steel - IP65...
55" 4K Monitor, Full IP65 Protection and Stainless Steel Casing Ideal for industrial use. Video/computer input signals can include HDMI, VGA, or DVI. This monitor is designed for environments requiring frequent cleaning, where corrosive conditions, risks of shocks or vibrations may occur, as well as high-humidity areas.
ALLWAN MARINE CAMERAS
32" AISI 316 100% waterproof IP65 display
42" screen protected IP65 (dust and water) on all sides, stainless steel enclosure For industrial and outdoor use. Video/computer input signals to be defined among HDMI, VGA, DVI. This monitor is designed for environments where regular cleaning is required, where corrosive conditions and potential shocks or vibrations may occur, and it is also...
ALLWAN SECURITY
32" Wide panel mount monitor- Touch optional
• 32" panel : 698,40 x 392,85 mm • Default VGA / HDMI – Optional DVI • 1920 x 1080 resolution • 400 nits brightness • Optional resistive touch panelRequest a quote
ALLWAN MARINE CAMERAS
32" AISI 316 IP67 waterproof monitor
32" Display 100% Waterproof IP65 on All Sides, Stainless Steel Chassis For Industrial and Outdoor Applications Video/computer input signals to be defined among HDMI, VGA, DVI, or BNC for composite video. This monitor is designed for environments where frequent cleaning, corrosive conditions, and/or the possibility of shocks or vibrations occur, and is...
ALLWAN SECURITY
24" Wide panel mount monitor- Touch optional
• 24" panel : 527 x 296.50 mm • Default VGA / HDMI – Optional DVI • 1920 x 1080 resolution • 250 nits brightness • Optional resistive touch panelRequest a quote
ALLWAN SECURITY
DISPLAY - 22" RUGGED INDUSTRIAL
Display Unit - 22" Reinforced Industrial Screen for Professional Applications
ALLWAN SECURITY

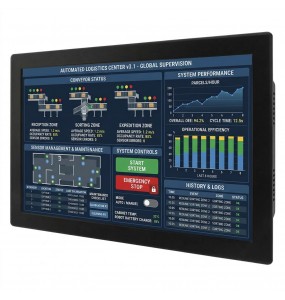

22" Wide panel mount display - Optional touch...
• 21.5" panel or 476.60 x 268.10 mm • Default VGA / HDMI – Optional DVI • 1920 x 1080 resolution • 1000 nits brightness • Optional resistive touch panelRequest a quote
ALLWAN MARINE CAMERAS
22" AISI 316 IP67 waterproof monitor
22" Reinforced Stainless Steel Waterproof Display for Industrial and Outdoor Applications Available input options: HDMI, VGA, DVI, or BNC for composite video. This display is designed for environments requiring frequent and corrosive cleaning, exposure to shocks or vibrations, and is suitable for outdoor use.
ALLWAN SECURITY
19" Display rugged for industry and plants
19" rugged monitor shockproof vibration-resistant
ALLWAN SECURITY

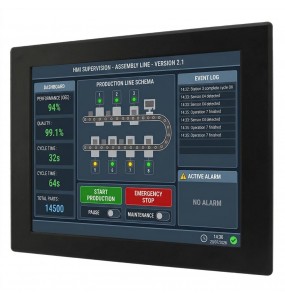

Panel mount 19" monitor - Optional touch screen
• 19" panel: active area 376.3 x 301 mm • Standard VGA / HDMI input – DVI option • 1280 x 1024 resolution • 1000 nits brightness • Optional resistive touch panelRequest a quote
ALLWAN MARINE CAMERAS
19 "waterproof full IP67 stainless steel monitor
19" Reinforced Stainless Steel Monitor, Designed to Withstand Industrial and Outdoor Environments HDMI, VGA, DVI, or BNC Input for Composite Video. Ideal for environments that require frequent cleaning, exposure to corrosive conditions, as well as shocks or vibrations, this model is perfectly suited for outdoor use and industrial areas.
ALLWAN SECURITY
17" Protected Industrial Display
17" 4:3 Professional Reinforced Shockproof and Vibration-Proof Display
ALLWAN SECURITY
Panel mount 17" monitor - Optional touch screen
• 17" panel or 337.9 x 270.34mm • Standard VGA / HDMI input – DVI option • 1280 x 1024 resolution • 1000 nits brightness • Optional resistive touch panelRequest a quote
ALLWAN SECURITY
15" Display unit Stainless steel - IP69K
15" Waterproof IP69K Monitor Perfectly suited for sensitive industrial environments. This IP69K waterproof display is ideal for the food-processing industry and the most demanding conditions. AISI 316 stainless-steel chassis with a flat design for easy cleaning. The sealed conduit provides high protection for the cables.
ALLWAN MARINE CAMERAS
Monitor 17 "stainless steel IP67 waterproof
17" Industrial/Marine Monitor – 100% Waterproof IP67 – SST 316 Ruggedized for industrial use and compliant with food industry standards. IP67 protection Power supply: 12V or optional 24V DC
ALLWAN SECURITY
15" industrial rugged monitor
15" reinforced monitor for industrial use Reinforced monitor construction designed to withstand demanding environments where hardware durability is essential.
ALLWAN SECURITY
15" Display unit Stainless steel - IP69K
15" Waterproof IP69K Monitor Perfectly suited for sensitive industrial environments. This IP69K waterproof display is ideal for the food-processing industry and the most demanding conditions. AISI 316 stainless-steel chassis with a flat design for easy cleaning. The sealed conduit provides high protection for the cables.
ALLWAN MARINE CAMERAS
15" Marine SST Waterproof Display IP67
15" Monitor 100% Waterproof IP67 for industrial worksites High Brightness Full Sunlight Hardened IP67 protection Power supply 12V or 24VDC Waterproof stainless steel monitor with BNC, VGA, DVI, HDMI
ALLWAN SECURITY
Panel mount 12" monitor - Optional touch display
• 12.1" panel i.e., 261.1 x 163.2mm • Standard VGA / HDMI input – Optional DVI • 1024 x 768 resolution • 1000 nits brightness • Optional resistive touch screenRequest a quote
ALLWAN SECURITY

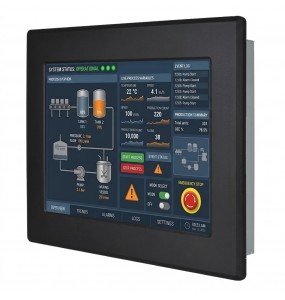

10" Panel Mount Monitor - Optional Touch display
Panel mount and 10" size• Active area 10.4” (210.4 x 157.8 mm) • IP65 waterproof front panel • Standard VGA / HDMI input – Optional DVI • 1024 x 768 resolution • 1000 nits brightness • Optional resistive touchscreenRequest a quote
ALLWAN SECURITY

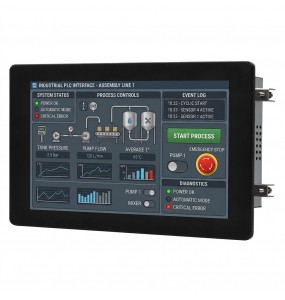

10" Wide Panel Mount Monitor - Touch Optional
10" Wide Format Panel Mount• Active area 10.1" (217 x 135.6 mm) • Standard VGA / HDMI input – Optional DVI • 1200 x 800 resolution • 350 nits brightness • Optional resistive touchscreenRequest a quote
ALLWAN SECURITY
10.4" Stainless Steel Waterproof Display IP67
10.4" Stainless Steel 316 Monitor - 100% Waterproof IP67 Designed to display essential information in compact spaces.
ALLWAN SECURITY

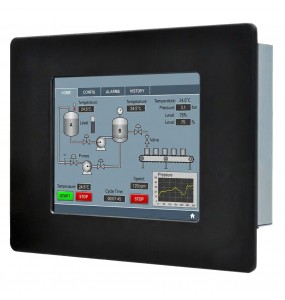

8" Panel Mount Monitor - Optional Resistive...
