55" Monitor - 316 Stainless Steel - IP65 Waterproof Enclosure
New product
55" 4K Monitor, Full IP65 Protection and Stainless Steel Casing
Ideal for industrial use.
Video/computer input signals can include HDMI, VGA, or DVI.
This monitor is designed for environments requiring frequent cleaning, where corrosive conditions, risks of shocks or vibrations may occur, as well as high-humidity areas.
Description

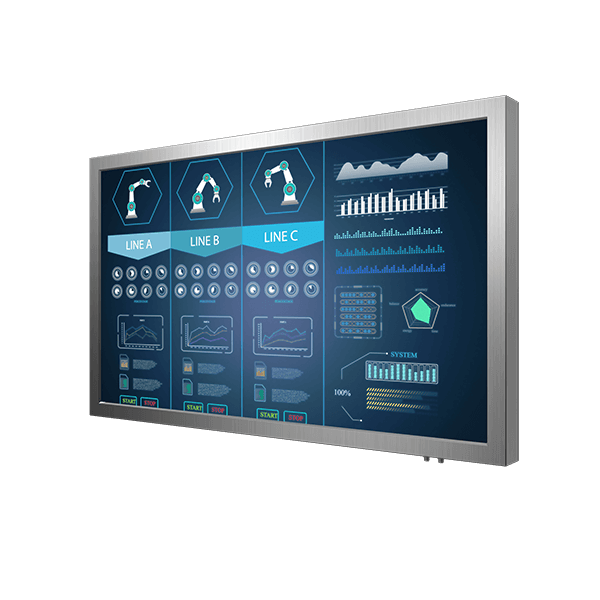

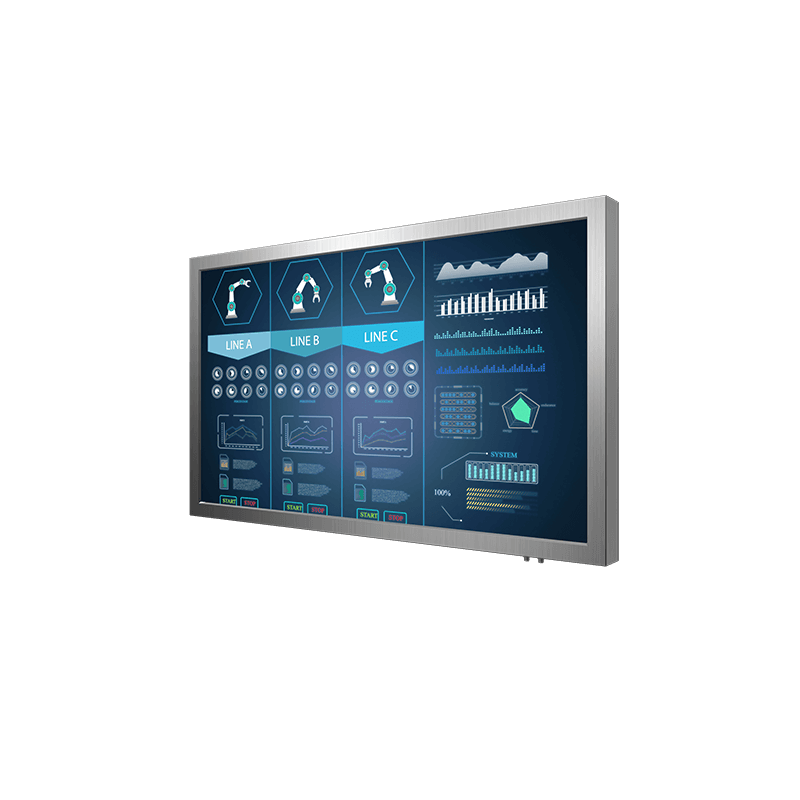

The MO1055IP is a professional 55-inch monitor, robust and waterproof, made of stainless steel. It is designed to withstand the most demanding environments, where resistance to extreme conditions is essential.
Its AISI316 stainless steel casing and full IP65 certification on all sides ensure complete protection against dust and water splashes.
However, this monitor cannot be installed directly outdoors, as optical bonding is not available for this model.
Main Features
- Panel: 55-inch screen with a 4K resolution of 3840x2160, delivering sharp and detailed images.
- Touchscreen: Not available on this model.
- Full Protection: Compliance with the IP65 standard on all sides, guaranteeing protection against dust and water splashes.
- Robust Construction: 316 austenitic stainless steel casing, perfect for aggressive environments or contact with chemical products.
- Versatile Connectivity: VGA, DVI-D, or HDMI inputs to adapt to any industrial computer system.
- Flexible Mounting: VESA300x300 and VESA300x600 mountings on the back.
Applications
The MO1055IP is designed to provide a robust and reliable display, even in the most challenging industrial environments. Ideal for extreme conditions, it fits perfectly into many professional applications, ensuring performance and longevity:
- Human-Machine Interfaces (HMI) for supervising industrial operations.
- Food, pharmaceutical, and chemical industries, where stainless steel and IP protection ensure optimal hygiene and durability.
- Maritime and offshore sectors, requiring high resistance to humidity, water splashes, and salty air.
- Industrial automation and production, where robustness and reliability are essential.
- Sites with high humidity levels.
Technical Specifications
| Specifications | Details |
|---|---|
| Model | MO1055IP |
| Screen Size | 55 inches |
| Resolution | 3840 x 2160 (4K) |
| Panel Type | LCD |
| Brightness | 500 cd/m² |
| Contrast Ratio | 1300:1 |
| Viewing Angles | 89° (H) / 89° (V) |
| Connectivity | VGA, DVI-D, HDMI (to be specified) |
| Protection Rating | Full IP65 (all sides) |
| Operating Temperature | 0°C to 45°C |
| Chassis Material | 316 Stainless Steel |
| Mounting | Rear, VESA300x300 and VESA 600x300 |
| Power Supply | 100-240VAC |
| Weight | 48 kg |
| Display size | 55" |
| Resolution | 3840x2160 UHD 4K |
| Material | SST 316 |
| Ingress Protection | IP65 |
| Video input | VGA |
| Video input | HDMI |
| Video input | DVI |
| Mounting | VESA Mount |
| Brightness | 500nits |
| Available options | Optical Bonding (outdoor use) |
| Available options | Protection glass |
| Power Supply | 110-230VAC |
| Protection glass | YES |
